AS5202-203-150F
AccuPort 432® Replaceable Port Form Body: SAE AS5202, -20, Cylindrical
AccuPort 432® Holder

Add to cart image Add to list image







See Additional Technical Information

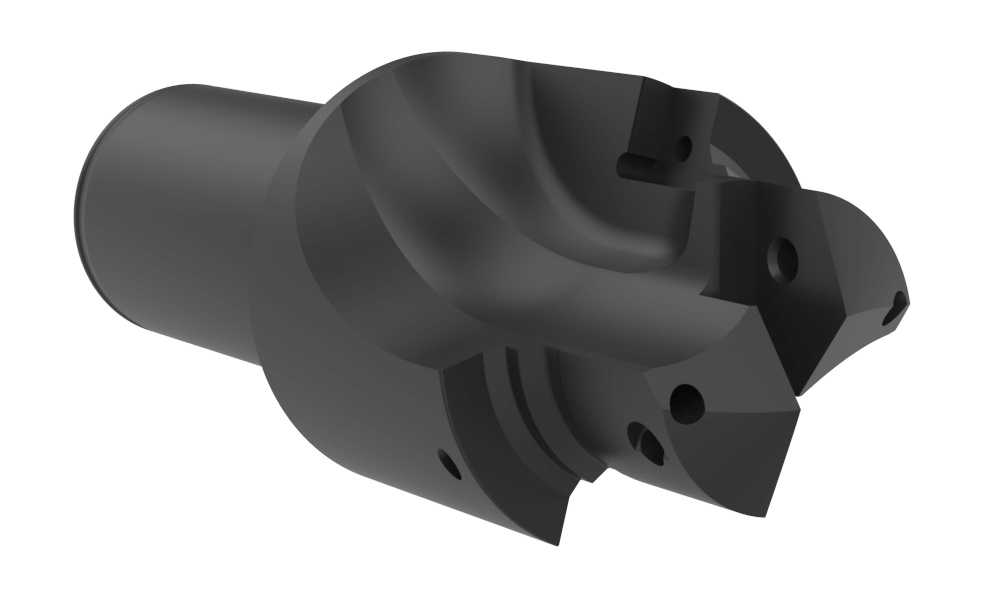

Default Image
Angle

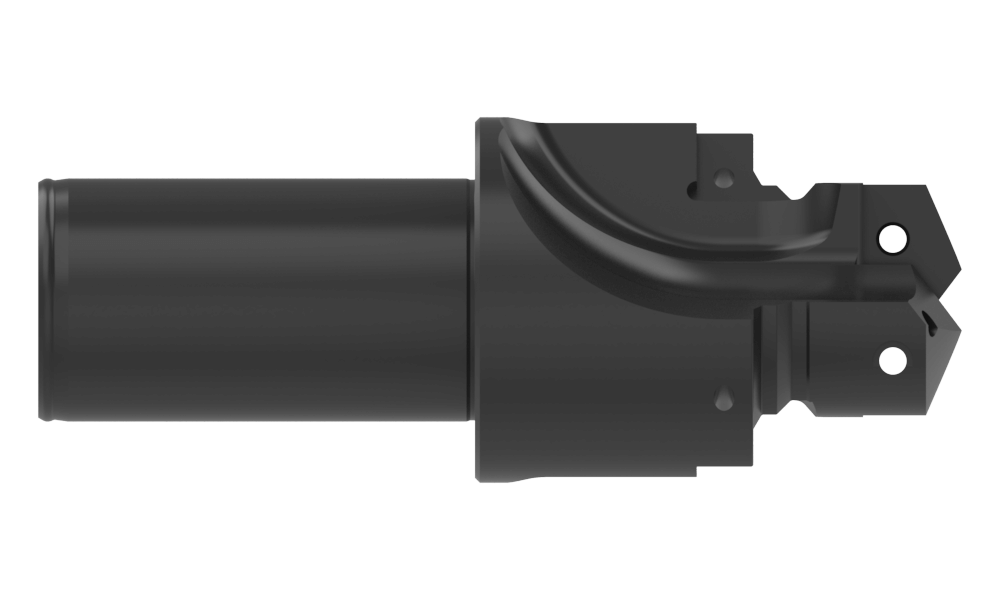

Front

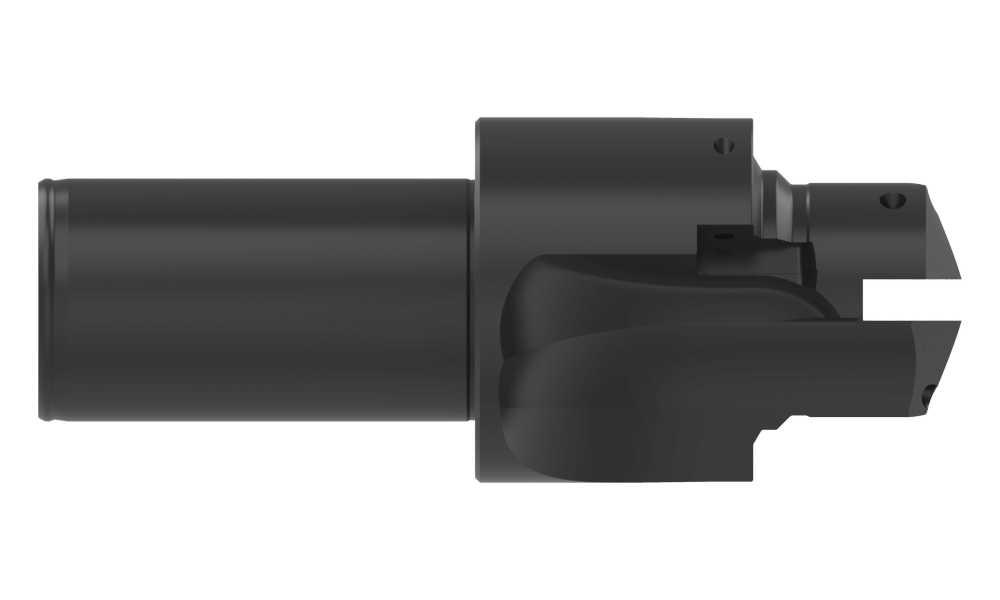

Top
Product Specifications
Specification SAE
Port Standard AS5202
Tube Size -20
Series 3
Spotface Diameter (inch) 2.2800
Flute Type Straight
Overall Length (inch) 5.703
Tool Reference Length (inch) 3.202
Body Length (inch) 3.015
Step Length (inch) 1.133
Shank Type Cylindrical
Shank Diameter (inch) 1-1/2
Shank Length (inch) 2.688
Pipe Tap Rear (inch) 1/4 NPT
Type of Product Indexable Port Form Holder
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement AccuPort Insert Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
AccuPort Insert Screw Driver
DRIVER, TORX PLUS HAND IP-15
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.82
Weight in kg (each) 1.28
Category Stocked
