D2144500M-150F
4TEX® Indexable Insert Drill: 45 mm, 2XD, Flanged Shank
4TEX® Holders

Add to cart image Add to list image







See Additional Technical Information

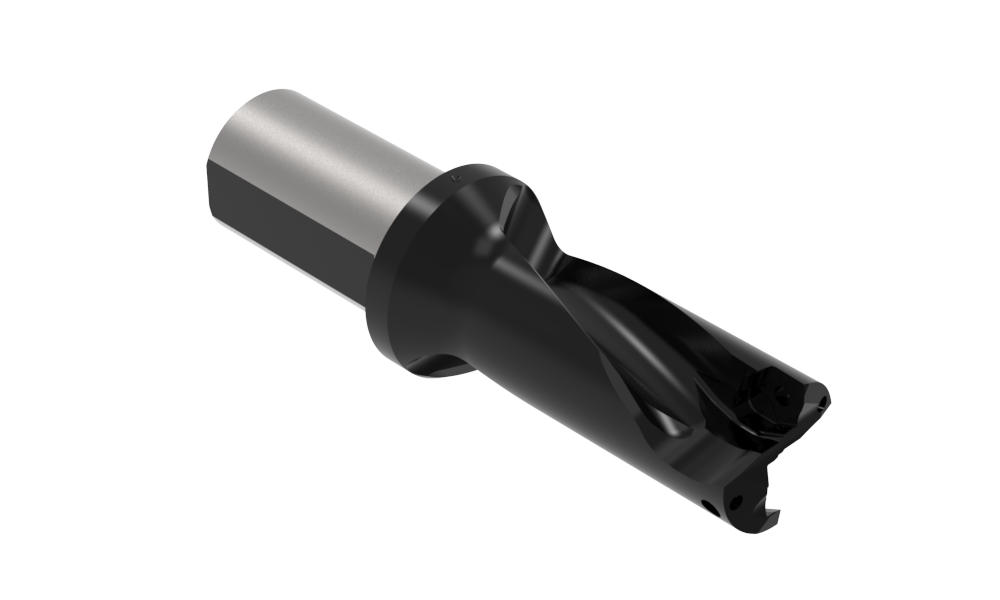

Default Image
Angle

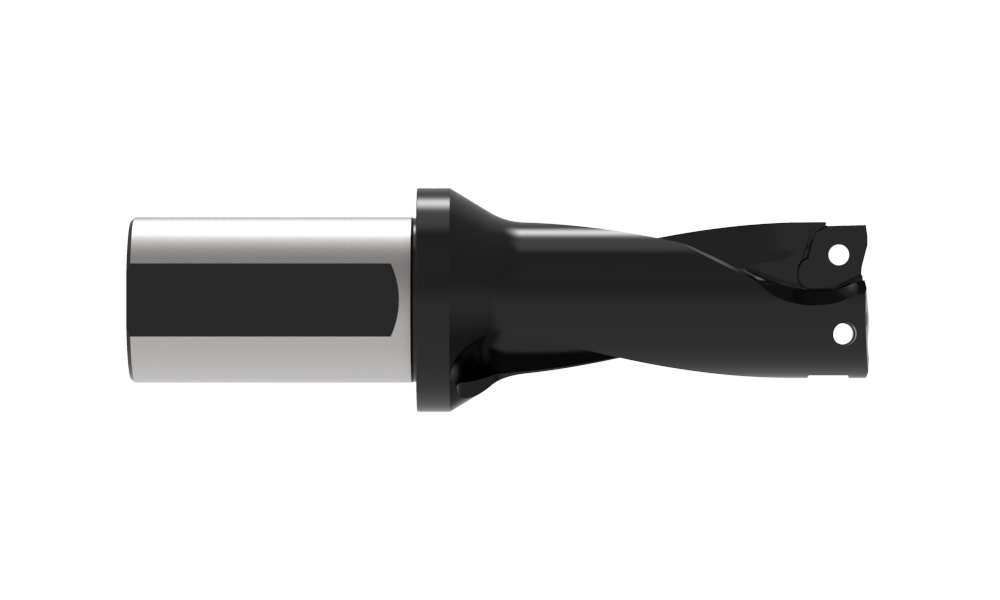

Front
Bottom
Product Specifications
Type of Product Indexable Insert Drill
Minimum diameter mm 44.51
Maximum diameter mm 45
Cutter Diameter mm 45
Depth to Diameter 2XD
Series 14
Quantity of Inserts 2
Insert prefix 4T-140408
Coolant Through Yes
Drill depth inch 3.543
Gage length inch 4.819
Assembled overall length inch 7.535
Shank type Flanged
Flat Yes
Shank diameter inch 1.5
Flange diameter inch 2.323
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7595-T20-1 (Qty0)
Replacement IC Insert Screw
TORX SCREW 10 PK, T20
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8T-20 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 3.42
Weight in kg (each) 1.55
Category Stocked
