D3050656I-25FM
4TEX® Indexable Insert Drill: 0.656", 3XD, Flanged Shank
4TEX® Holders

Add to cart image Add to list image







See Additional Technical Information

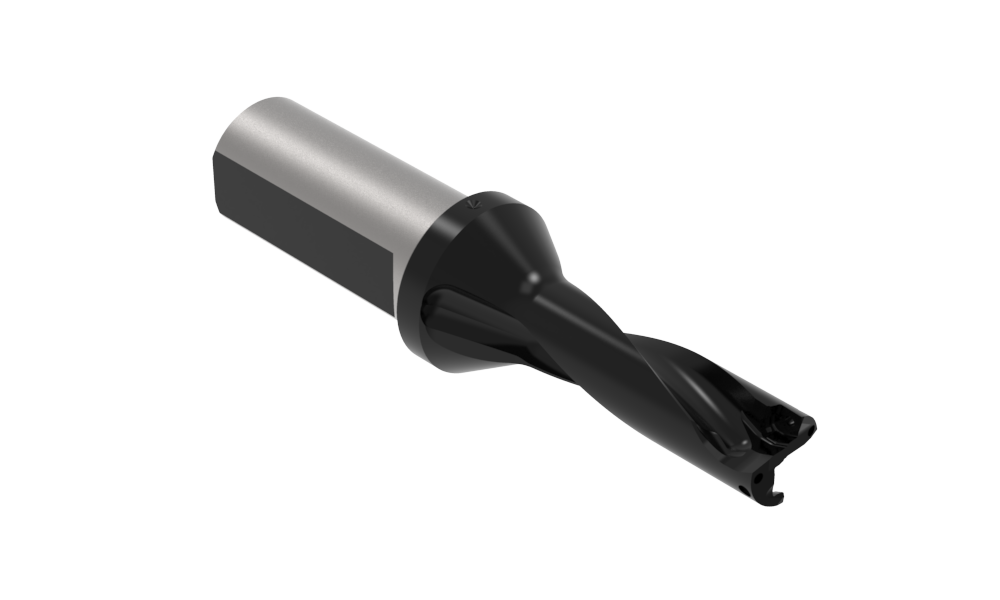

Default Image
Angle

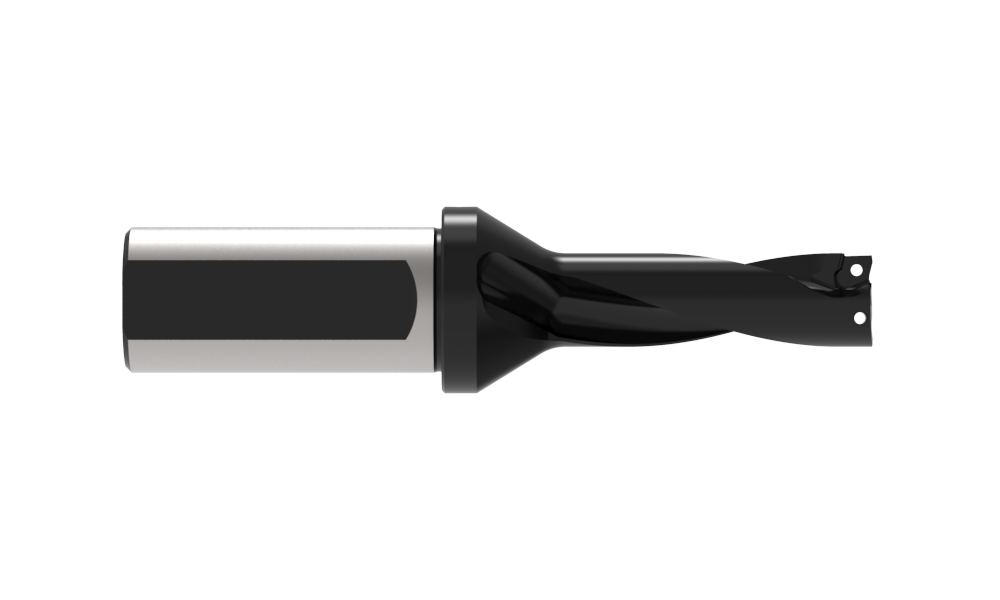

Front

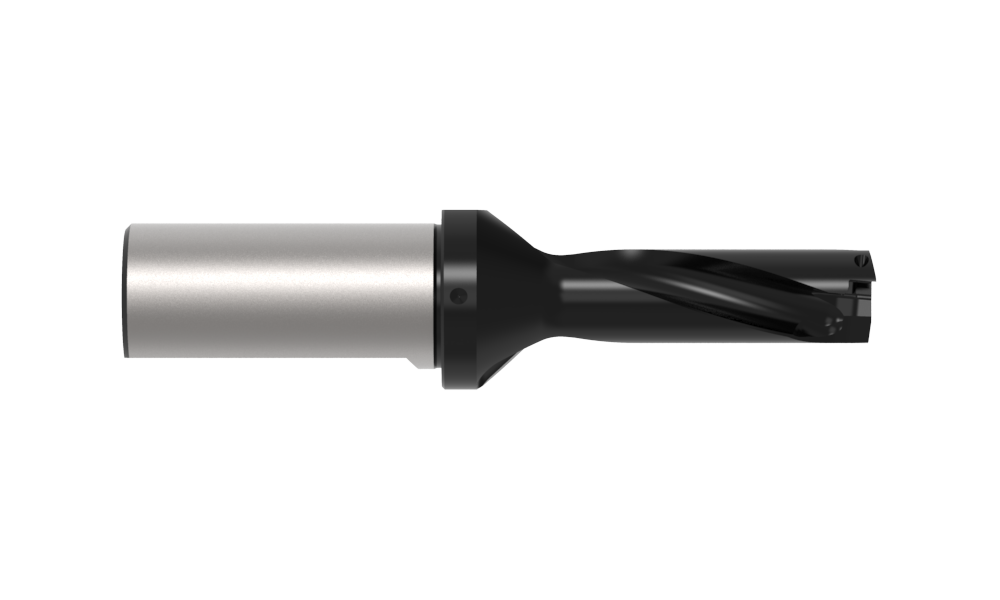

Bottom
Product Specifications
Type of Product Indexable Insert Drill
Minimum diameter mm 16.51
Maximum diameter inch 0.656
Cutter Diameter inch 0.656
Depth to Diameter 3XD
Series 05
Quantity of Inserts 2
Insert prefix 4T-05T203
Coolant Through Yes
Drill depth mm 49.98
Diameter Fractional Equivalent 21/32
Gage length mm 73
Assembled overall length inch 127
Shank type Flanged
Flat Yes
Shank diameter mm 25
Flange diameter mm 32
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7243-T6-1 (Qty0)
Replacement IC Insert Screw
TORX SCREW 10 PK, T6
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8T-6 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-6
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.72
Weight in kg (each) 0.33
Category Stocked
