HDTMNK0250-NPT
AccuThread 856® Solid Carbide Threadmill: NPT 18, 1/4" and 3/8", Helical 4 Flute, AM210®
AccuThread® 856 Solid

Add to cart image Add to list image







See Additional Technical Information

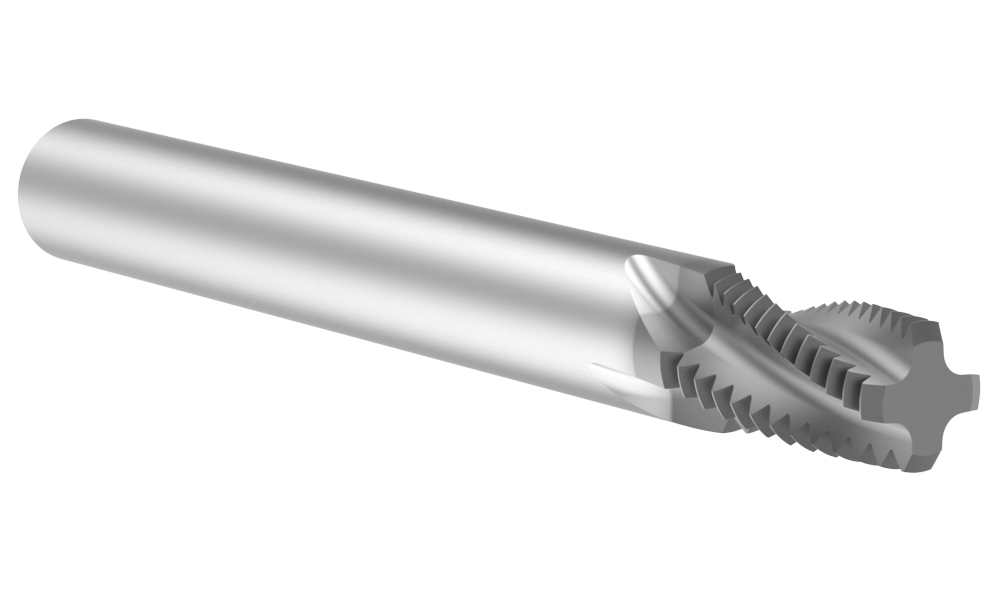

Default Image
Angle
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length inch 3.5
Shank diameter inch 0.375
Shank type Cylindrical
Coating AM210®
Material Carbide
Flute Type Helical
Thread Standard NPT
Minimum Thread Size 1/4" and 3/8"
Pitch 18
Number of Flutes 4
Feature Heavy Duty
Thread Style Internal/External
Cutter Diameter inch 0.363
Length of cut inch 0.68
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.18
Weight in kg (each) 0.08
Category Stocked
