HTA0AC45-20FM
T-A Pro® Replaceable Drill Body: 12.70 mm - 15.07 mm, Drill & Chamfer, Flanged Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information

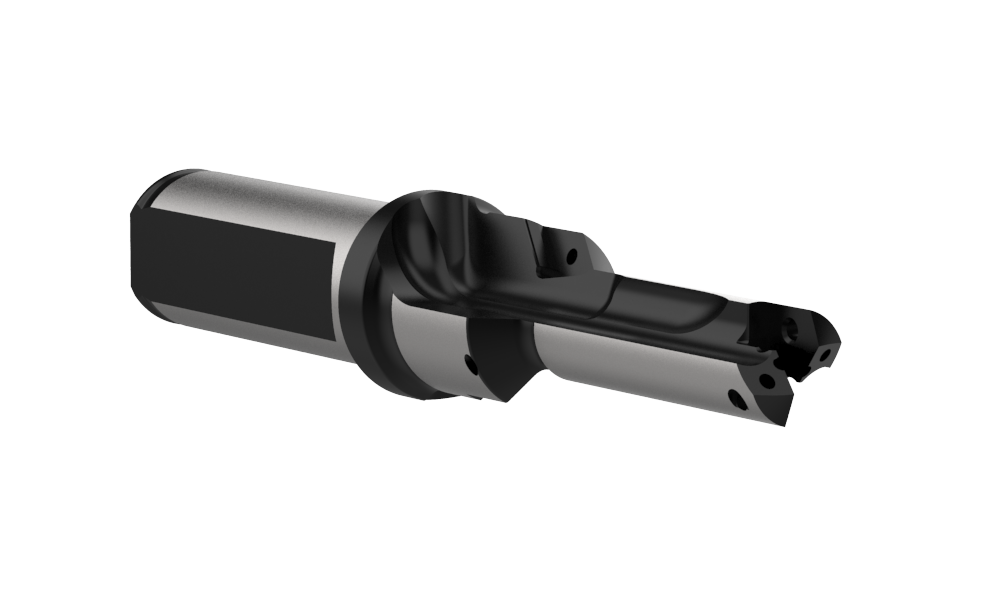

Default Image
Angle

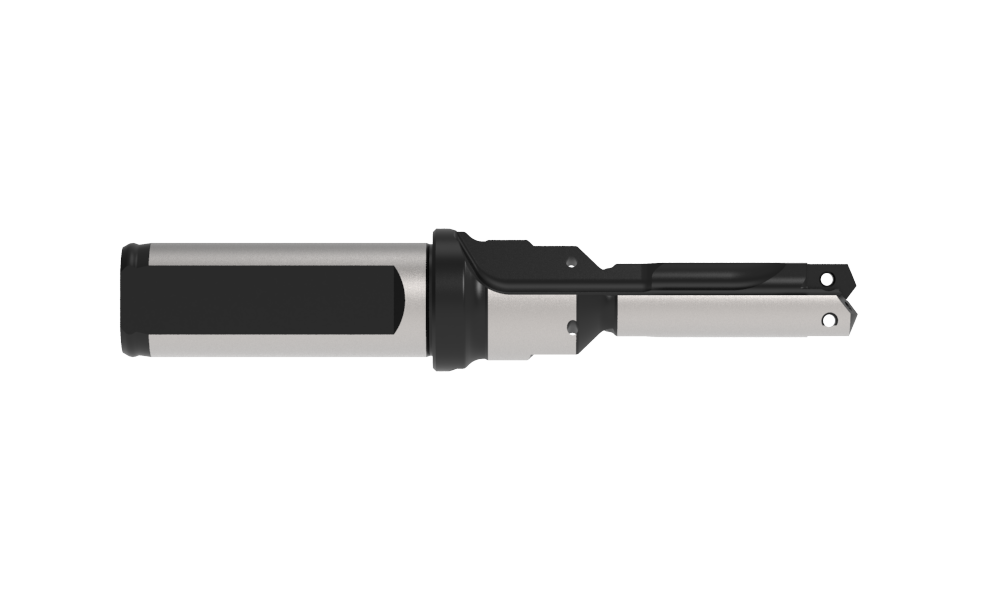

Front

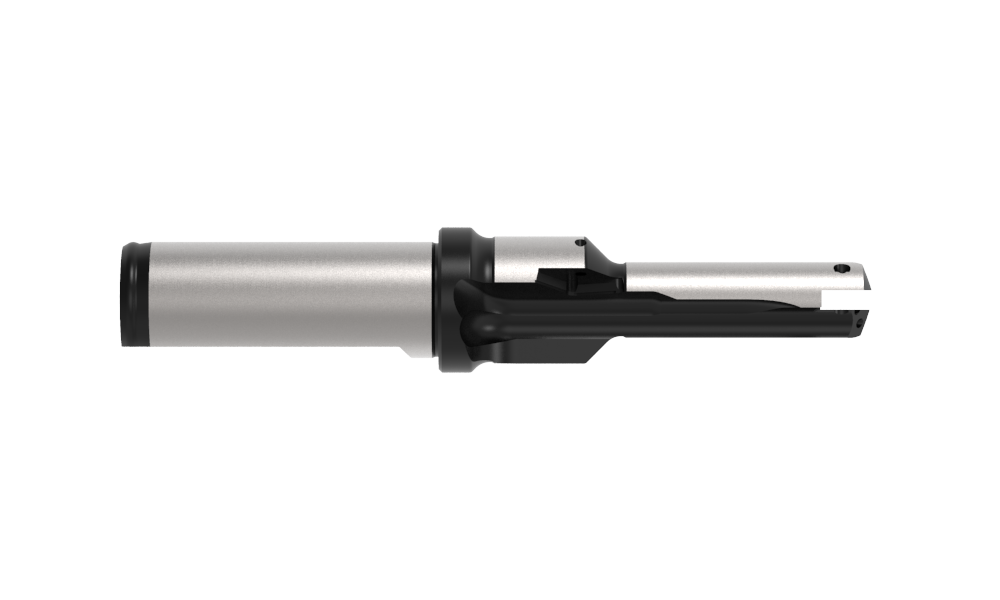

Top
Product Specifications
Series 0
Sub-Series A
Minimum Diameter (mm) 12.70
Maximum Diameter (mm) 15.07
Length Type Drill & Chamfer
Flute Type Straight
Overall Length (mm) 120.7
Tool Reference Length (mm) 73.4
Body Length (mm) 70.7
Drill Depth (mm) 57.9
Shank Type Flanged
Shank Diameter (mm) 20
Shank Length (mm) 50.0
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.447
Weight in kg (each) 0.2
Category Stocked
