HTA1A05-100F
T-A Pro® Replaceable Drill Body: 0.6947" - 0.9596", 5xD, Flanged Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information

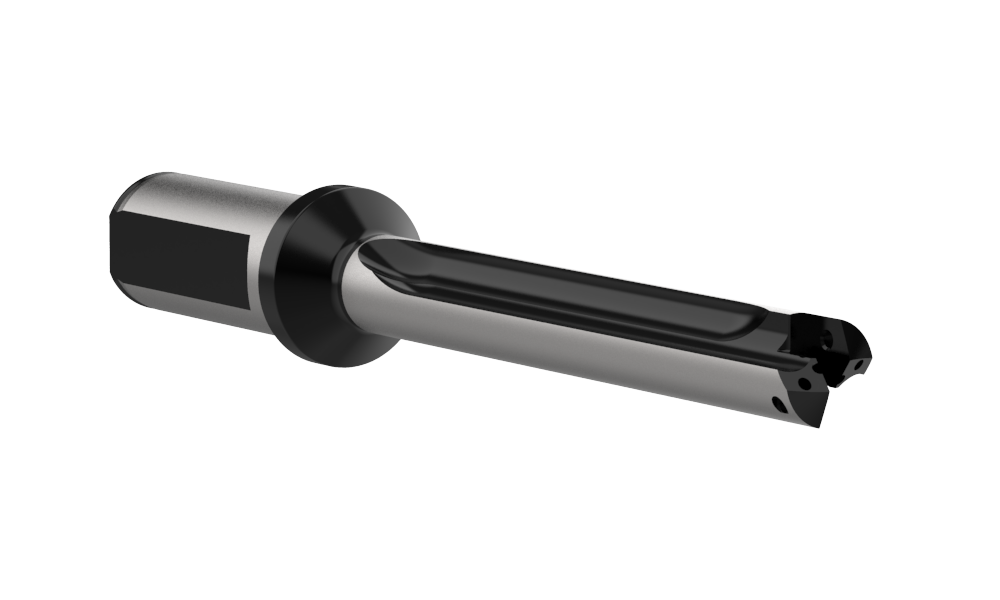

Default Image
Angle

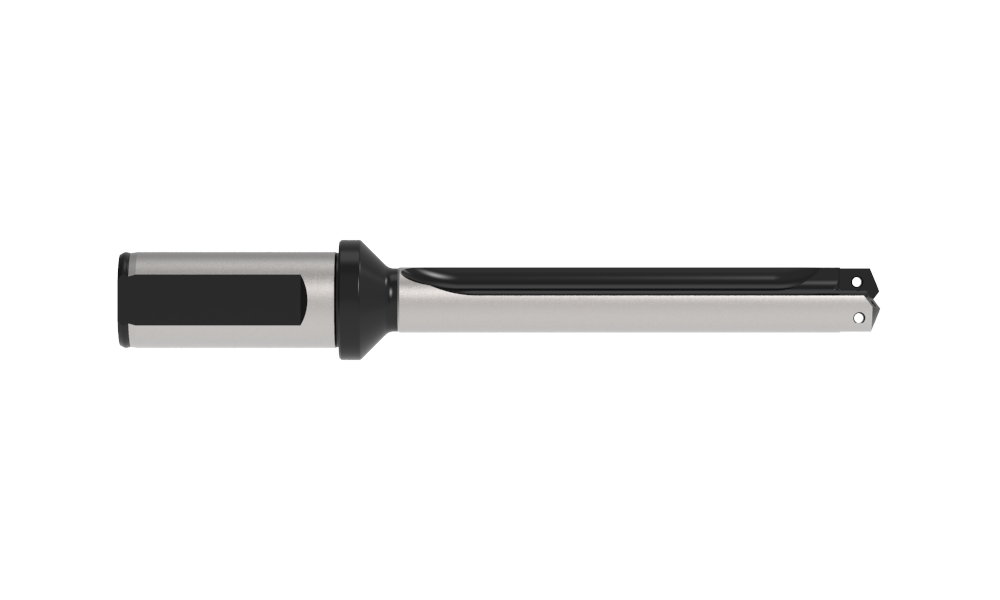

Front

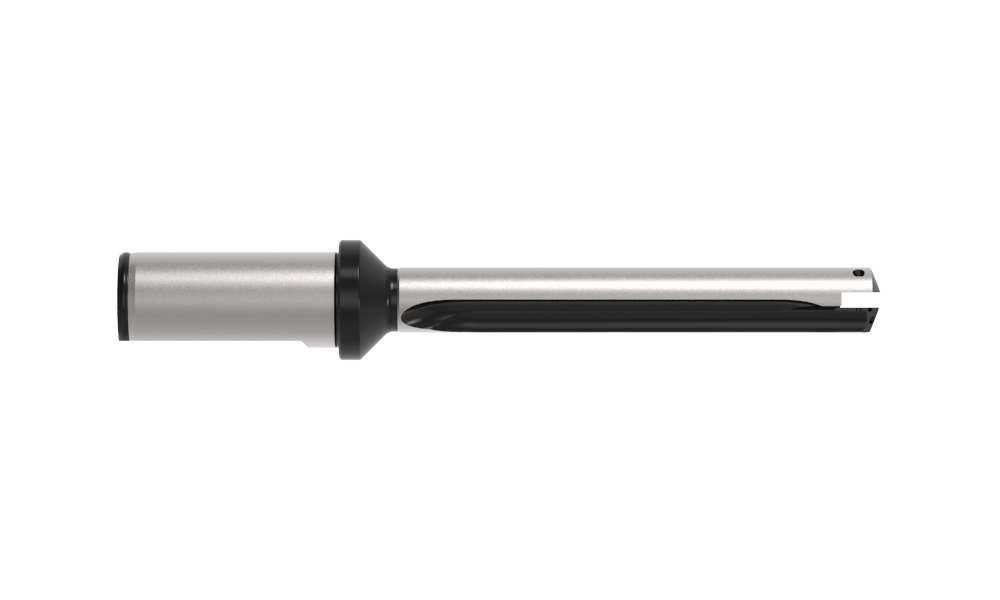

Top
Product Specifications
Series 1
Sub-Series A
Minimum diameter inch 0.6947
Maximum diameter inch 0.9596
Length Type 5xD
Flute Type Straight
Overall length inch 7.903
Tool Reference Length inch 5.763
Body length inch 5.623
Drill depth inch 4.125
Shank type Flanged
Shank diameter inch 1
Shank length inch 2.280
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.97
Weight in kg (each) 0.44
Category Stocked
