HTA3A05-150C
T-A Pro® Replaceable Drill Body: 1.3798" - 1.8820", 5xD, Cylindrical Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information

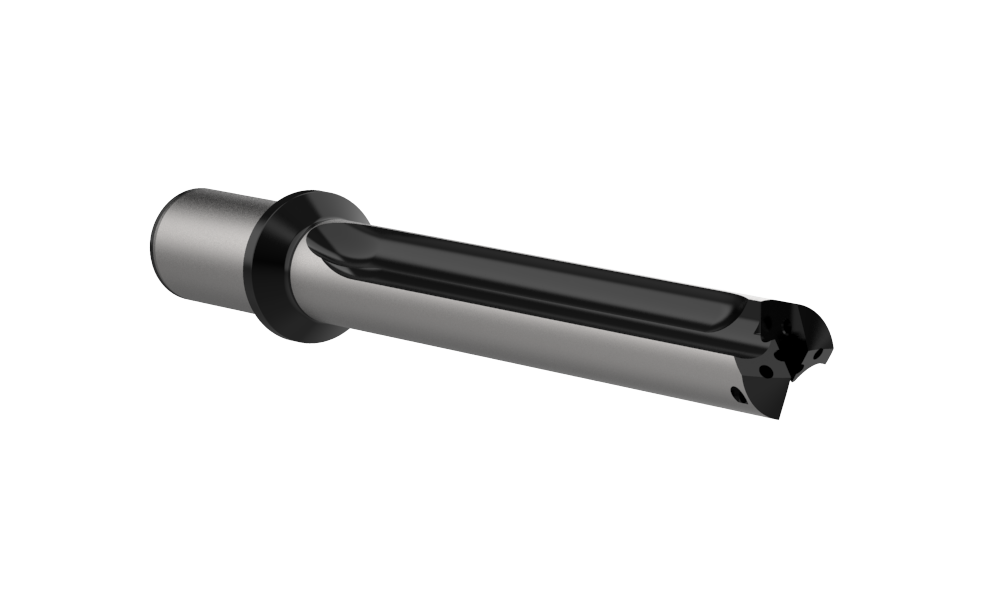

Default Image
Angle

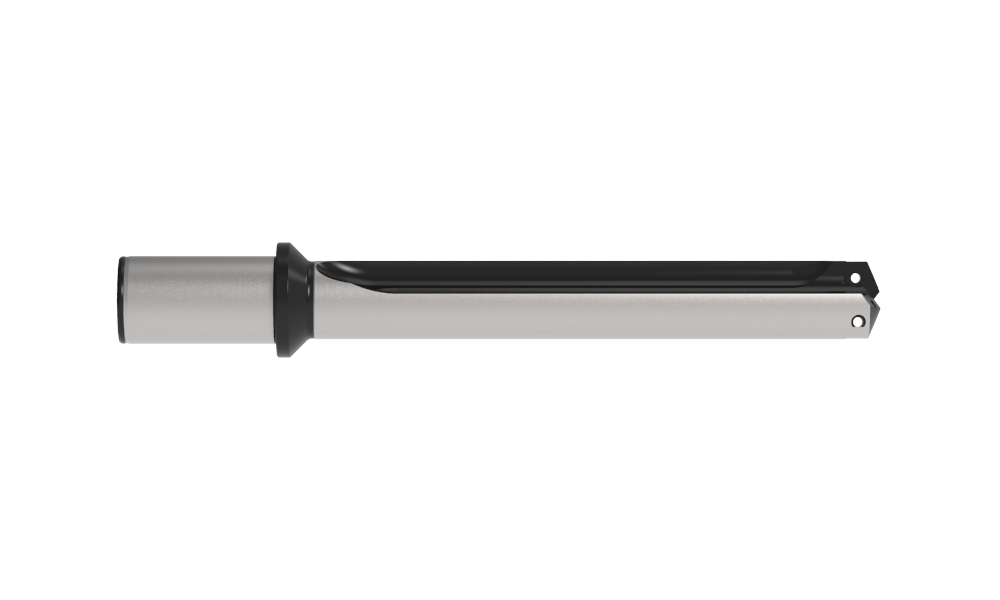

Front

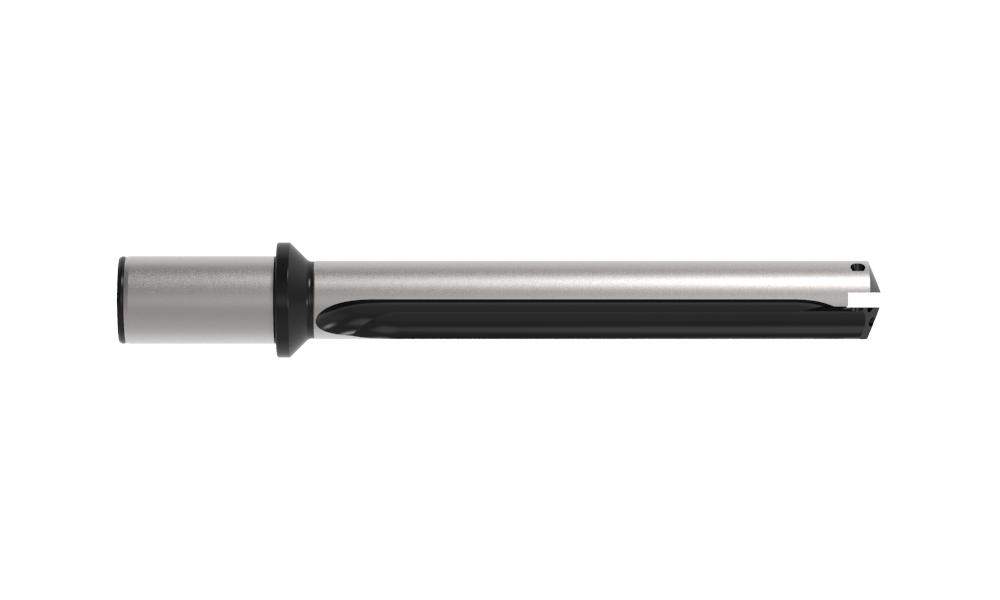

Top
Product Specifications
Series 3
Sub-Series A
Minimum diameter inch 1.3798
Maximum diameter inch 1.8820
Length Type 5xD
Flute Type Straight
Overall length inch 13.013
Tool Reference Length inch 10.512
Body length inch 10.325
Drill depth inch 8.090
Shank type Cylindrical
Shank diameter inch 1-1/2
Shank length inch 2.688
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.32
Weight in kg (each) 1.96
Category Stocked
