HTA3C12-150C
T-A Pro® Replaceable Drill Body: 1.6140" - 1.8820", 12xD, Cylindrical Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information

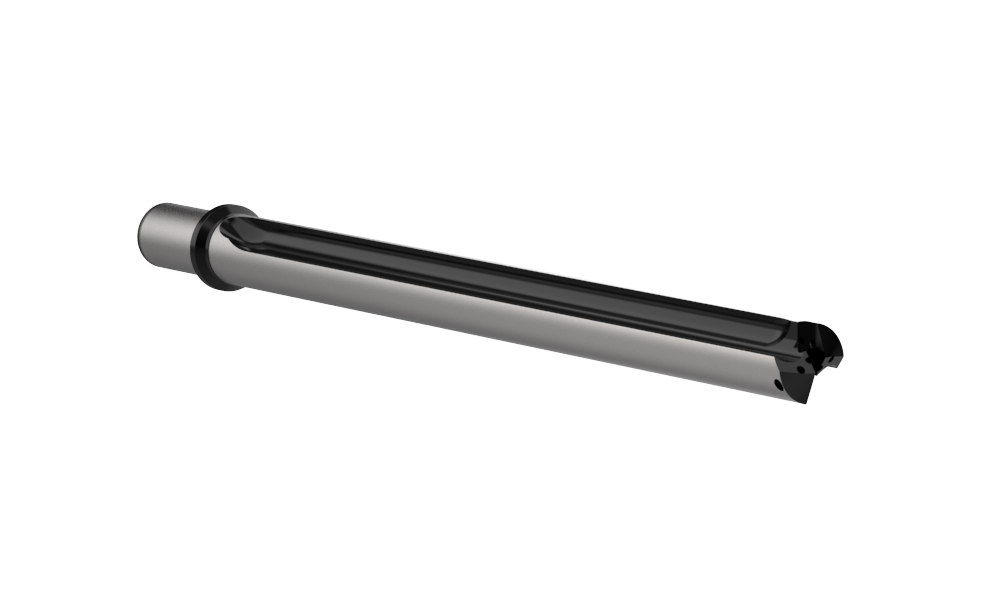

Default Image
Angle

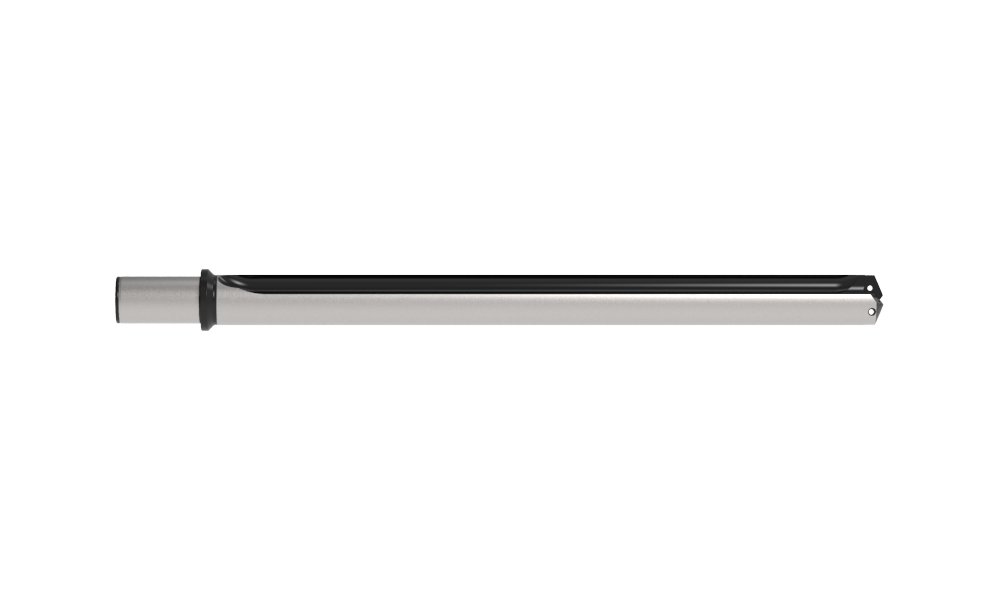

Front

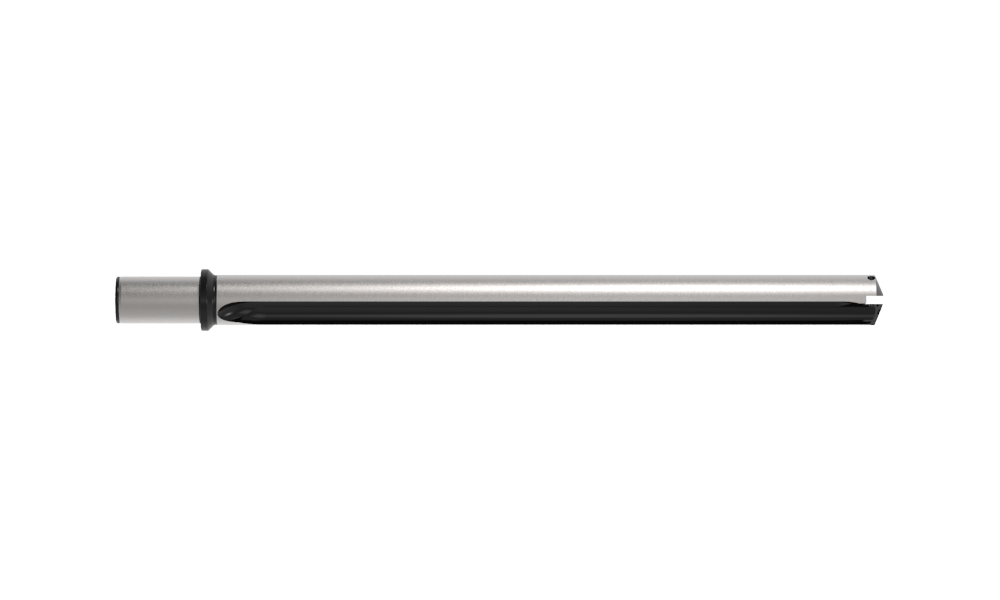

Top
Product Specifications
Series 3
Sub-Series C
Minimum diameter inch 1.6140
Maximum diameter inch 1.8820
Length Type 12xD
Flute Type Straight
Overall length inch 24.339
Tool Reference Length inch 21.838
Body length inch 21.651
Drill depth inch 19.416
Shank type Cylindrical
Shank diameter inch 1-1/2
Shank length inch 2.688
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 9.47
Weight in kg (each) 4.3
Category Stocked
