HXT1212S-20FM
GEN3SYS® XT Pro Replaceable Drill Body: 12.00 mm - 12.99 mm, 12xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

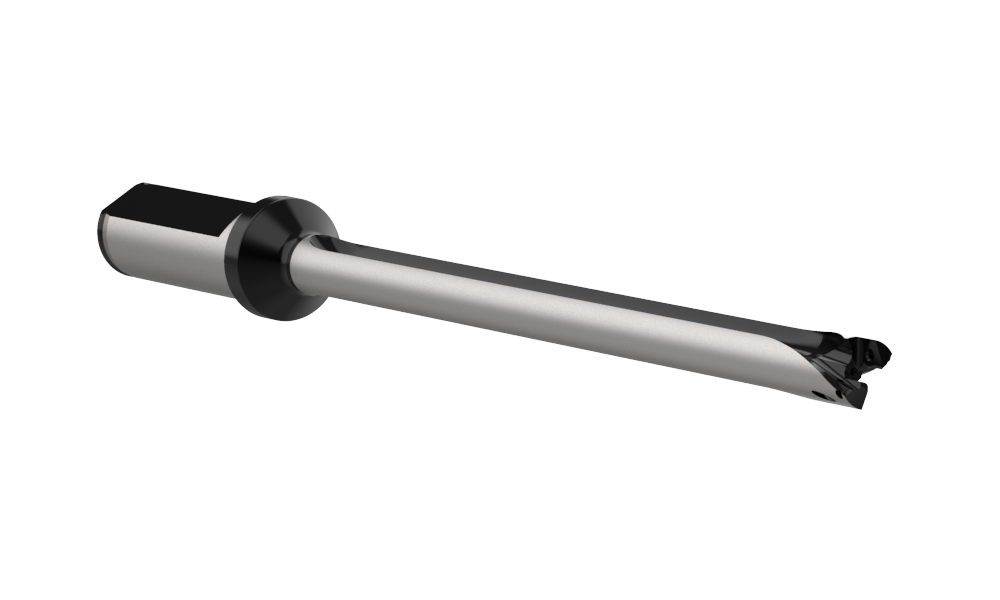

Angle

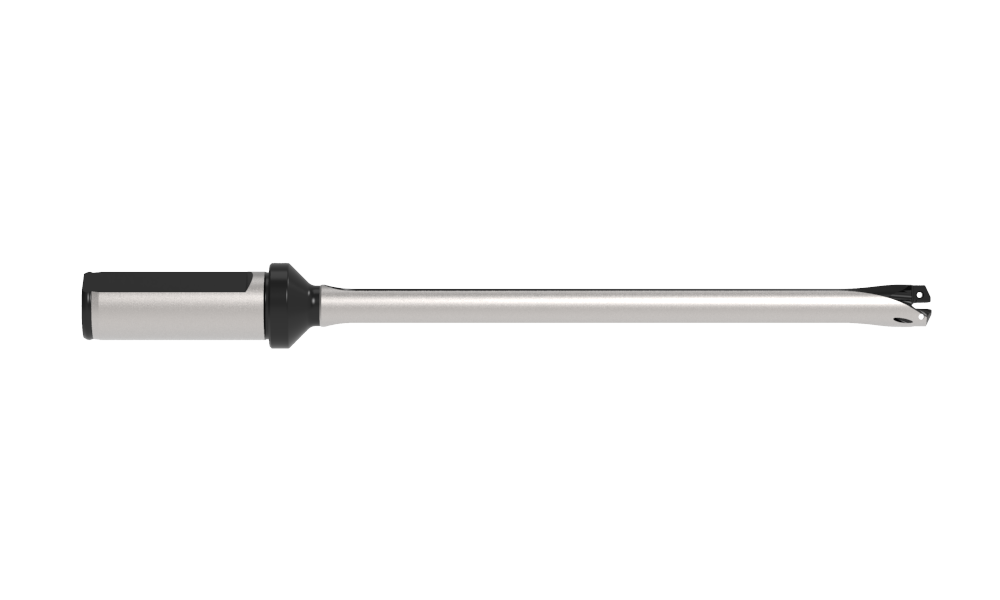

Front

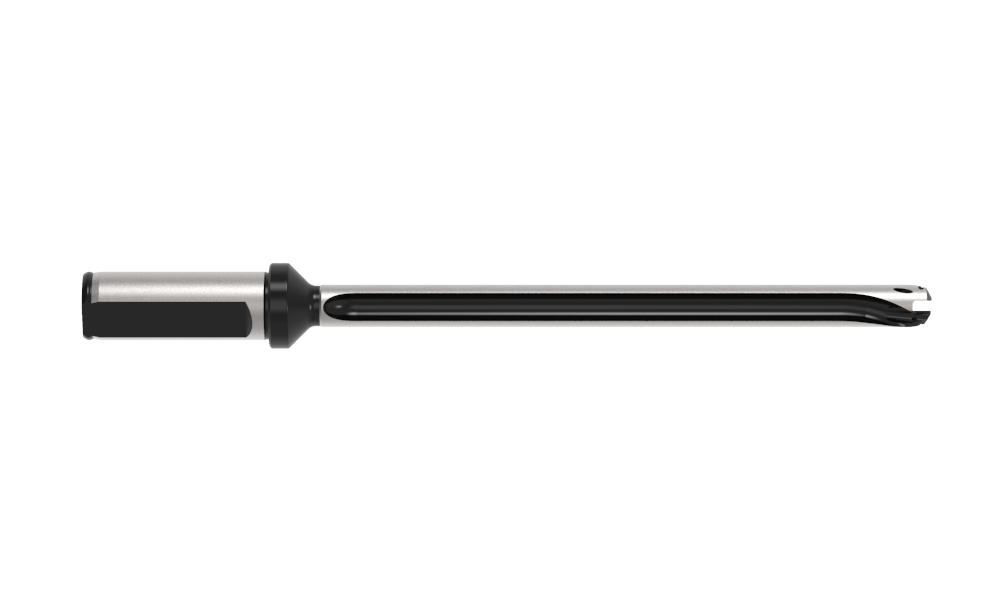

Top
Product Specifications
Series 12
Minimum diameter mm 12.00
Maximum diameter mm 12.99
Length Type 12xD
Flute Type Straight
Overall length mm 235.7
Tool Reference Length mm 185.7
Body length mm 183.5
Drill depth mm 155.9
Shank type Flanged
Shank diameter mm 20
Shank length mm 50.0
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.479
Weight in kg (each) 0.22
Category Stocked
