HXT1213S-20FM
GEN3SYS® XT Pro Replaceable Drill Body: 13.00 mm - 13.99 mm, 12xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

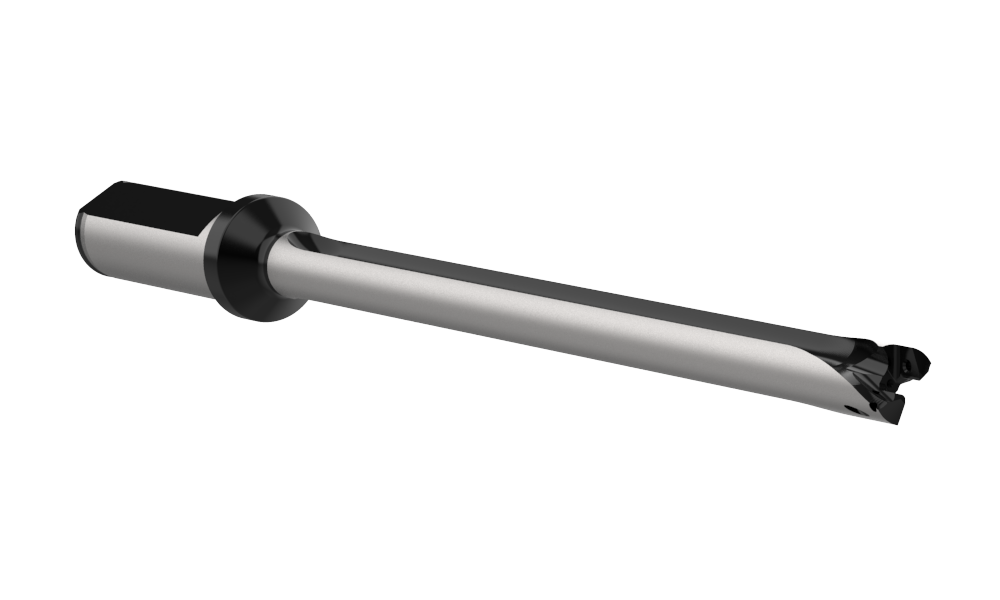

Angle

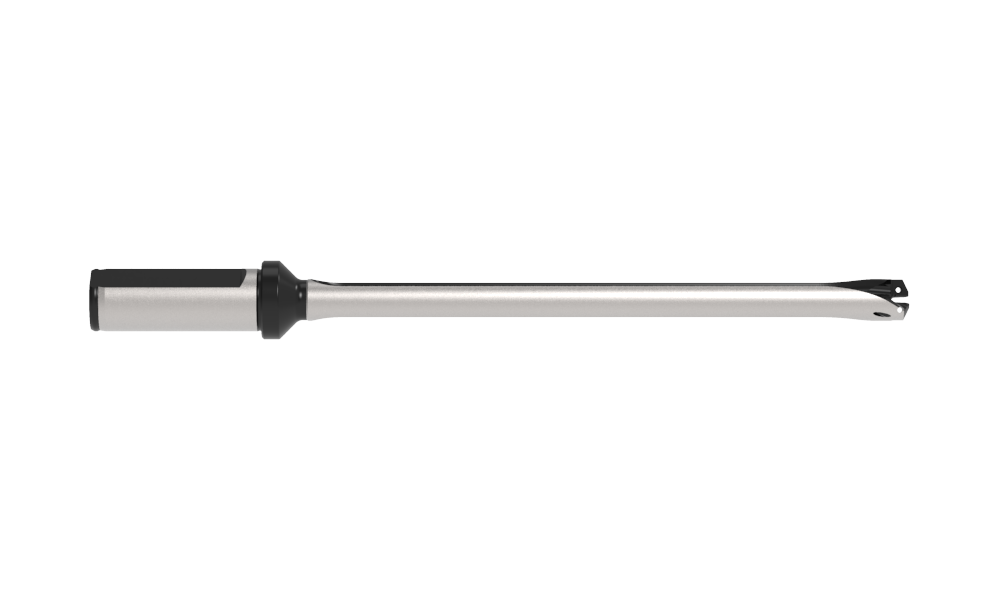

Front

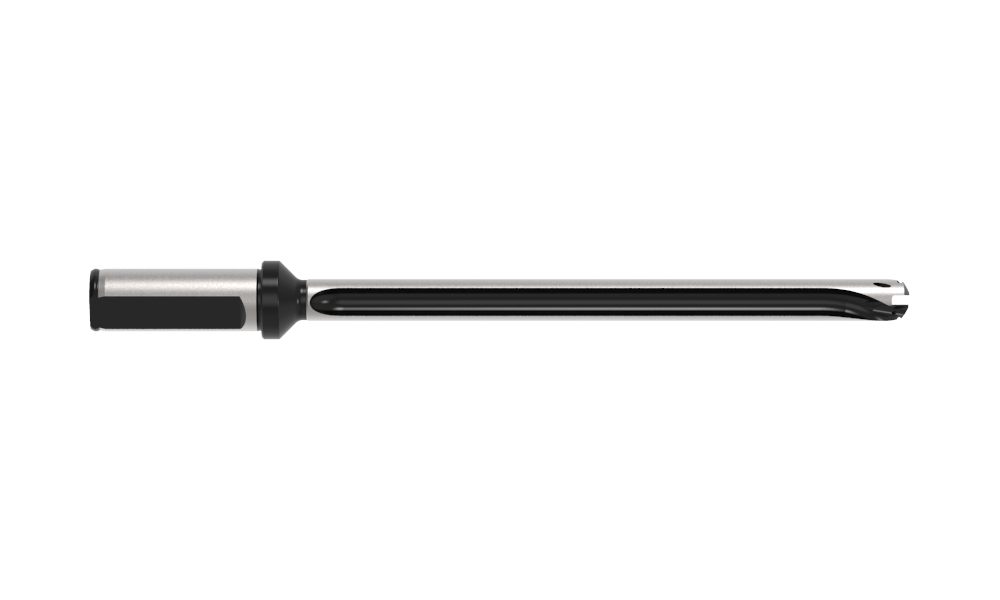

Top
Product Specifications
Series 13
Minimum diameter mm 13.00
Maximum diameter mm 13.99
Length Type 12xD
Flute Type Straight
Overall length mm 247.4
Tool Reference Length mm 197.4
Body length mm 195.2
Drill depth mm 167.9
Shank type Flanged
Shank diameter mm 20
Shank length mm 50.0
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.518
Weight in kg (each) 0.24
Category Stocked
