HXT1217S-20FM
GEN3SYS® XT Pro Replaceable Drill Body: 17.00 mm - 17.99 mm, 12xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information

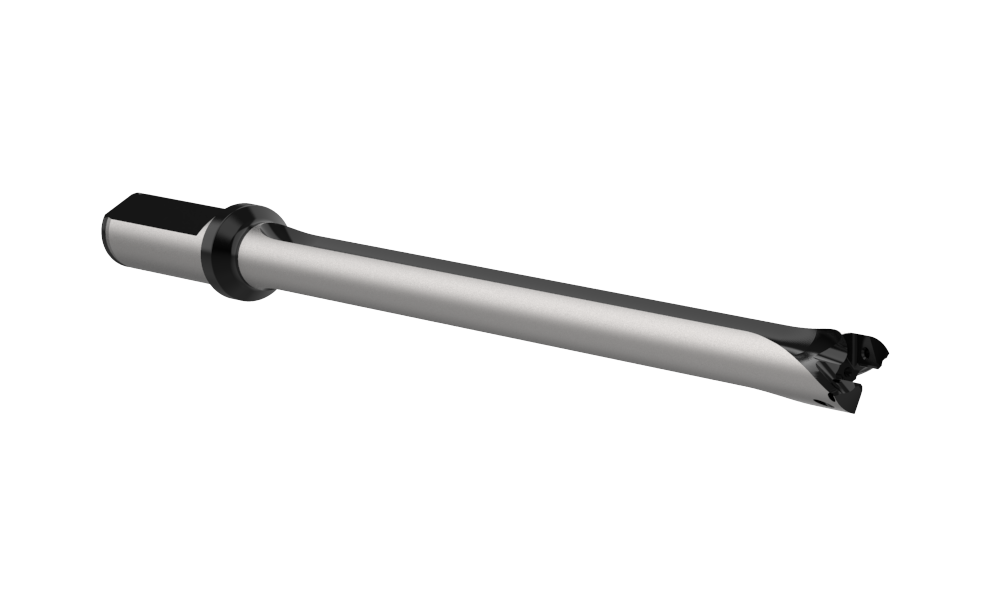

Default Image
Angle

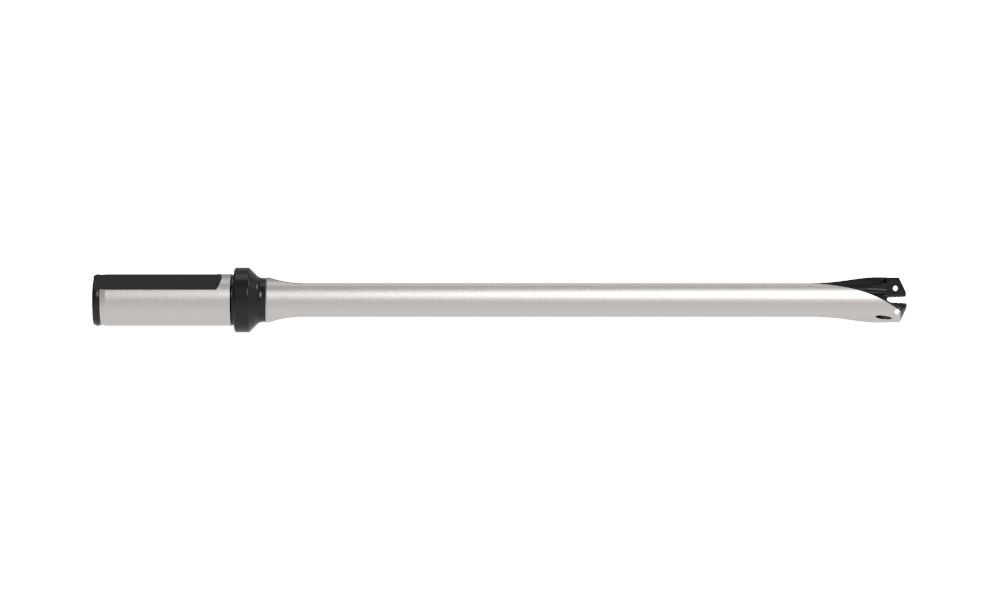

Front

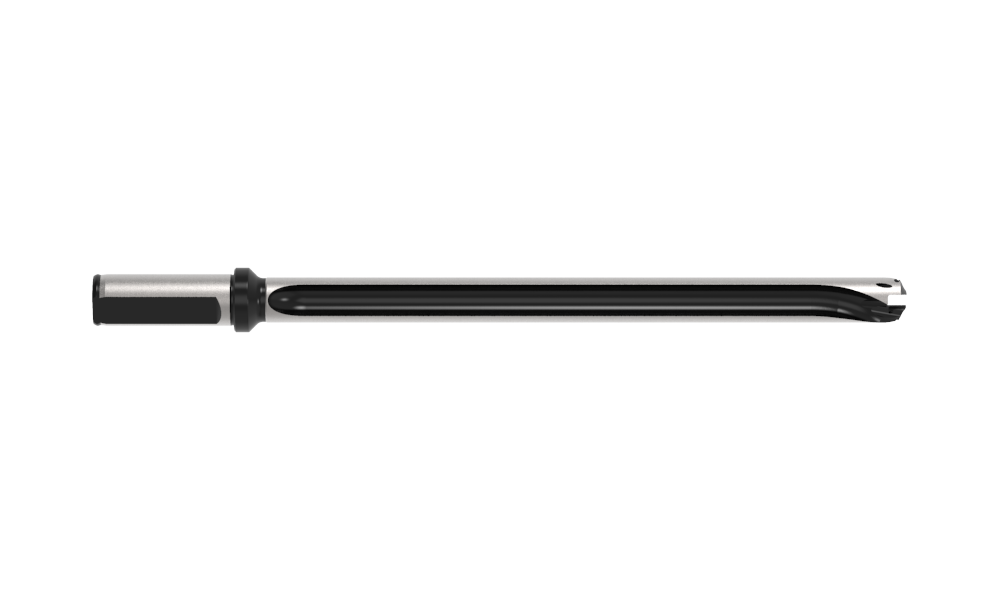

Top
Product Specifications
Series 17
Minimum diameter mm 17.00
Maximum diameter mm 17.99
Length Type 12xD
Flute Type Straight
Overall length mm 298.9
Tool Reference Length mm 248.9
Body length mm 246.0
Drill depth mm 215.9
Shank type Flanged
Shank diameter mm 20
Shank length mm 50.0
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72567-IP8-1 (Qty0)
Replacement GEN3SYS® Screw
0.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.728
Weight in kg (each) 0.33
Category Stocked
