HXT1220S-25FM
GEN3SYS® XT Pro Replaceable Drill Body: 20.00 mm - 21.99 mm, 12xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information

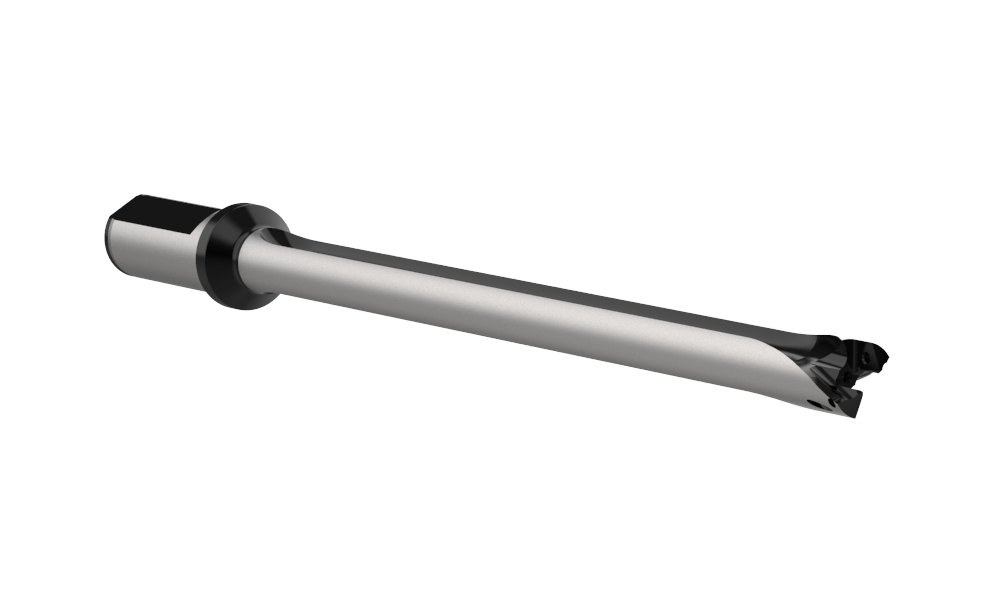

Default Image
Angle

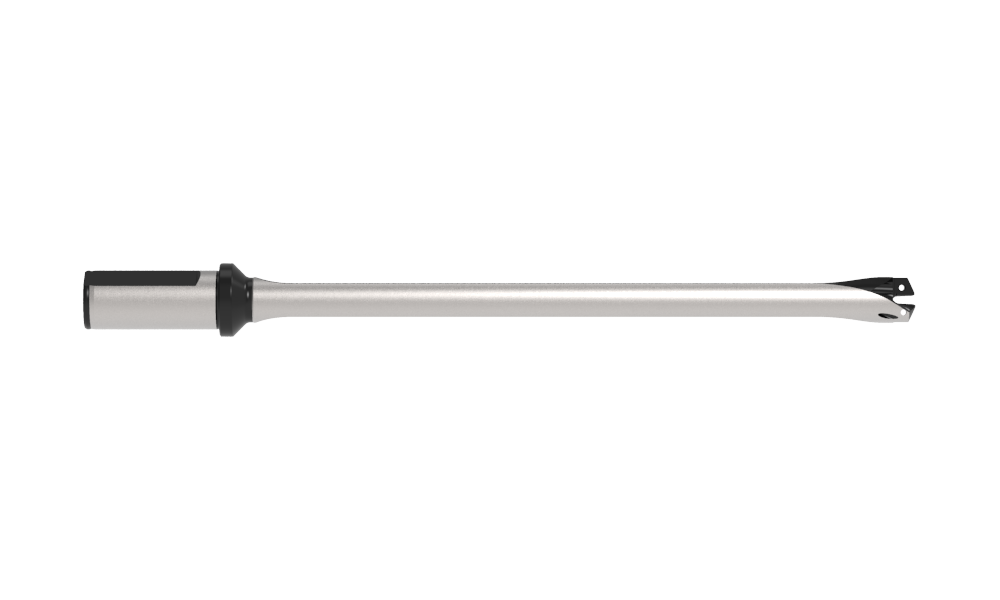

Front

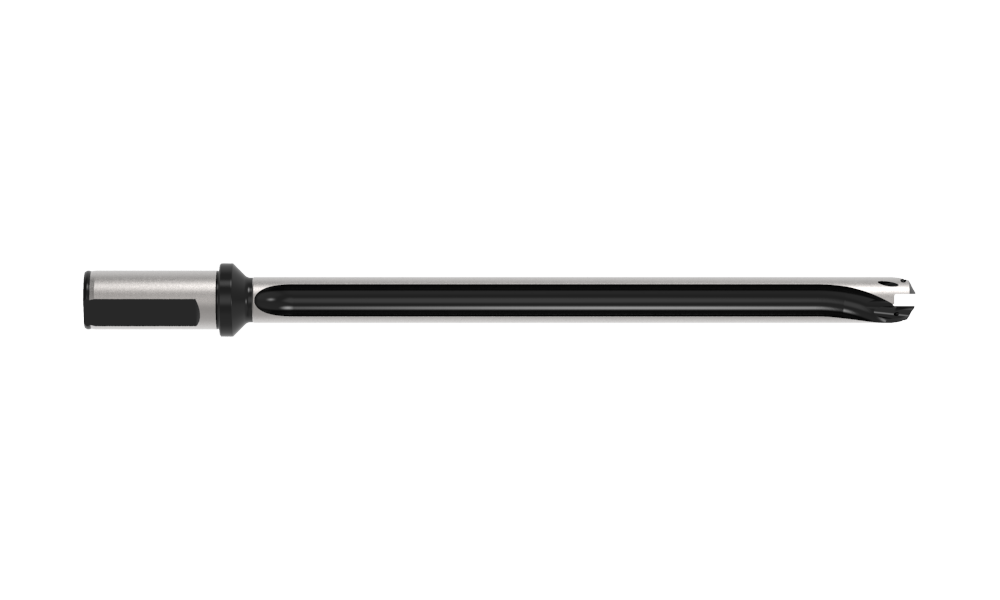

Top
Product Specifications
Series 20
Minimum diameter mm 20.00
Maximum diameter mm 21.99
Length Type 12xD
Flute Type Straight
Overall length mm 356.8
Tool Reference Length mm 300.8
Body length mm 298.0
Drill depth mm 263.9
Shank type Flanged
Shank diameter mm 25
Shank length mm 56.0
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.239
Weight in kg (each) 0.56
Category Stocked
