HXT1222S-100F
GEN3SYS® XT Pro Replaceable Drill Body: 0.8660" - 0.9446", 12xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information

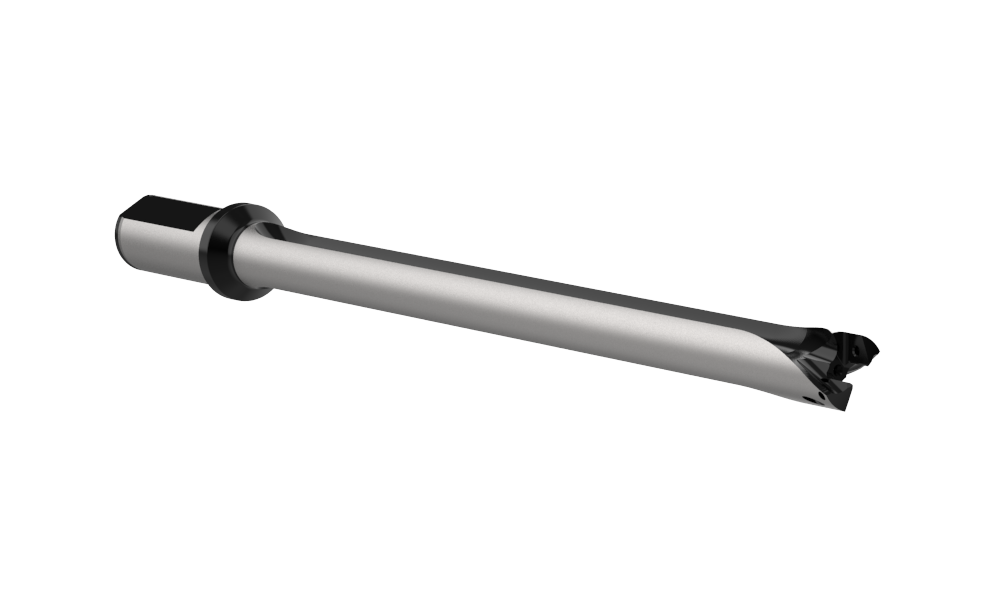

Default Image
Angle

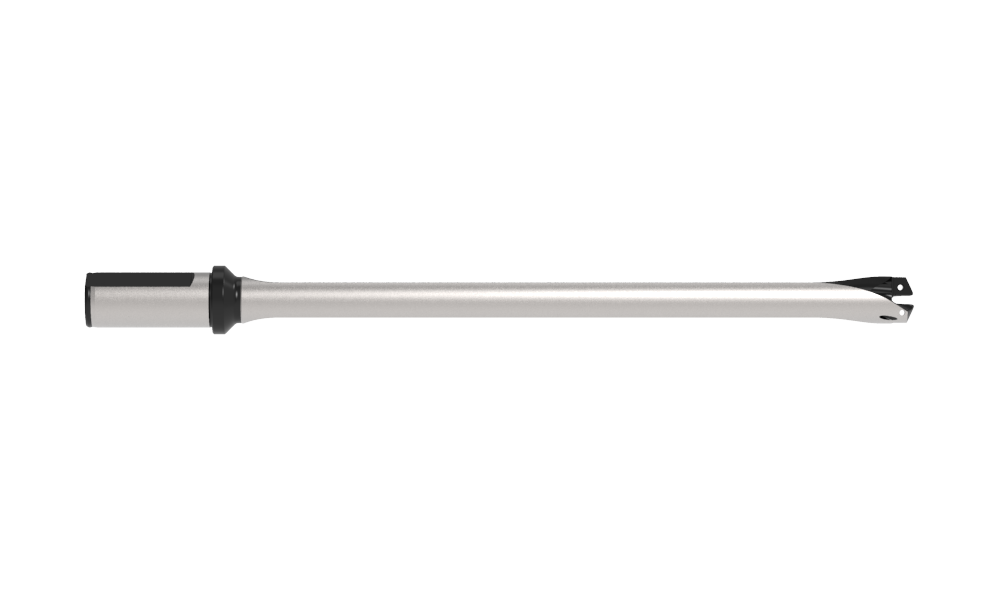

Front

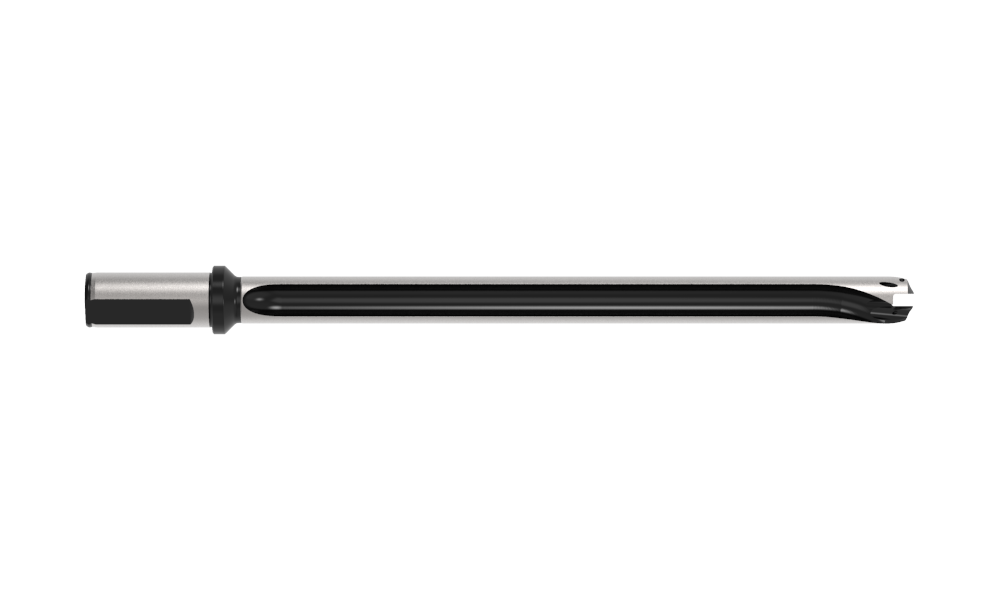

Top
Product Specifications
Series 22
Minimum diameter inch 0.8660
Maximum diameter inch 0.9446
Length Type 12xD
Flute Type Straight
Overall length inch 15.043
Tool Reference Length inch 12.763
Body length inch 12.648
Drill depth inch 11.334
Shank type Flanged
Shank diameter inch 1
Shank length inch 2.280
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 739-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1.5 KIT (1) TORX PLUS, CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.449
Weight in kg (each) 0.66
Category Stocked
