HXT1224S-100C
GEN3SYS® XT Pro Replaceable Drill Body: 0.9447" - 1.0234", 12xD, Cylindrical Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

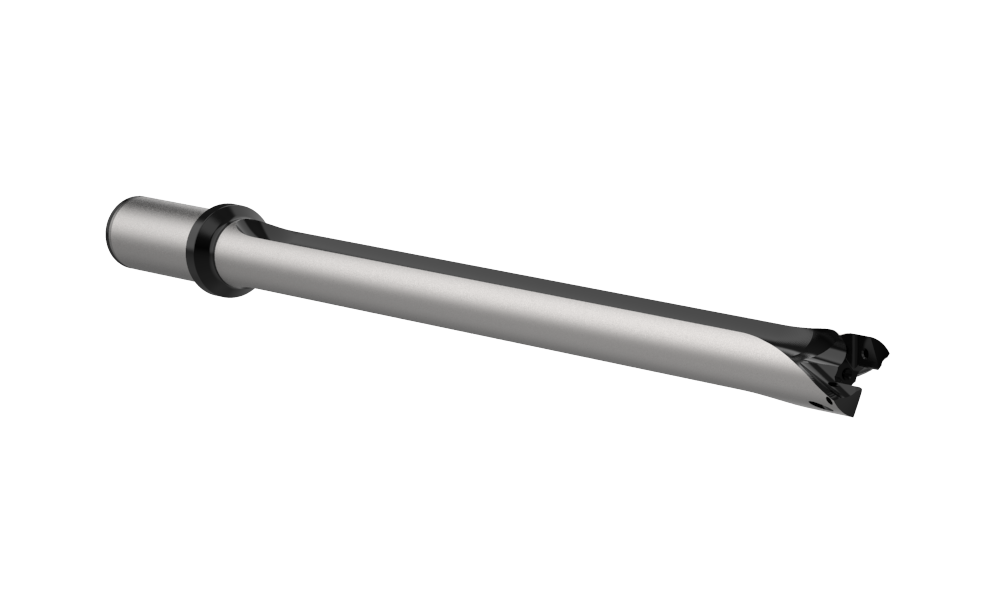

Angle

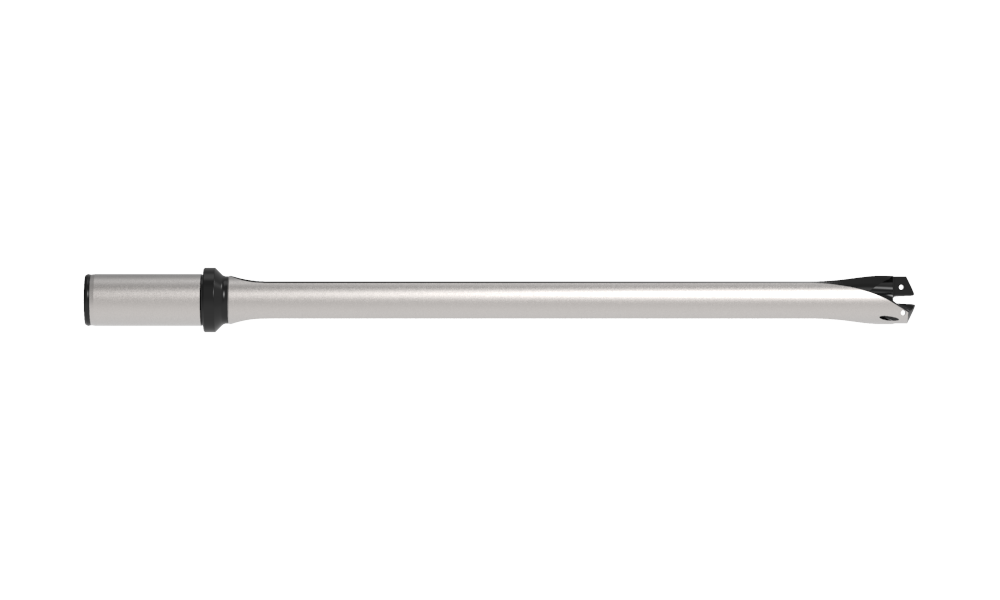

Front

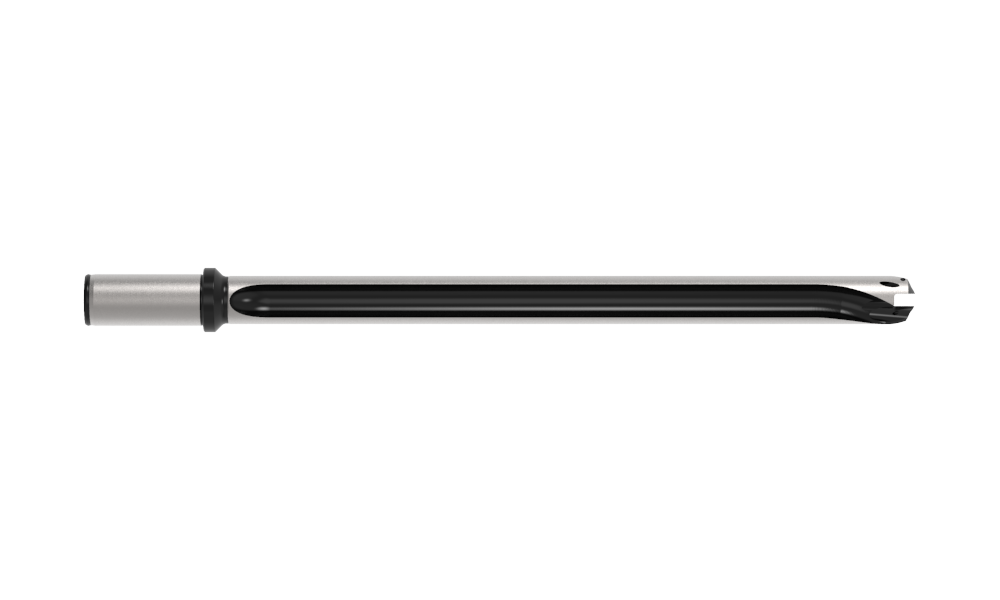

Top
Product Specifications
Series 24
Minimum diameter inch 0.9447
Maximum diameter inch 1.0234
Length Type 12xD
Flute Type Straight
Overall length inch 16.084
Tool Reference Length inch 13.804
Body length inch 13.689
Drill depth inch 12.279
Shank type Cylindrical
Shank diameter inch 1
Shank length inch 2.280
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 739-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1.5 KIT (1) TORX PLUS, CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.707
Weight in kg (each) 0.77
Category Stocked
