I6149-08R0-20FM
AccuPort 432® Replaceable Port Form Body: ISO 6149-1, -8, Cylindrical
AccuPort 432® Holder

Add to cart image Add to list image







See Additional Technical Information

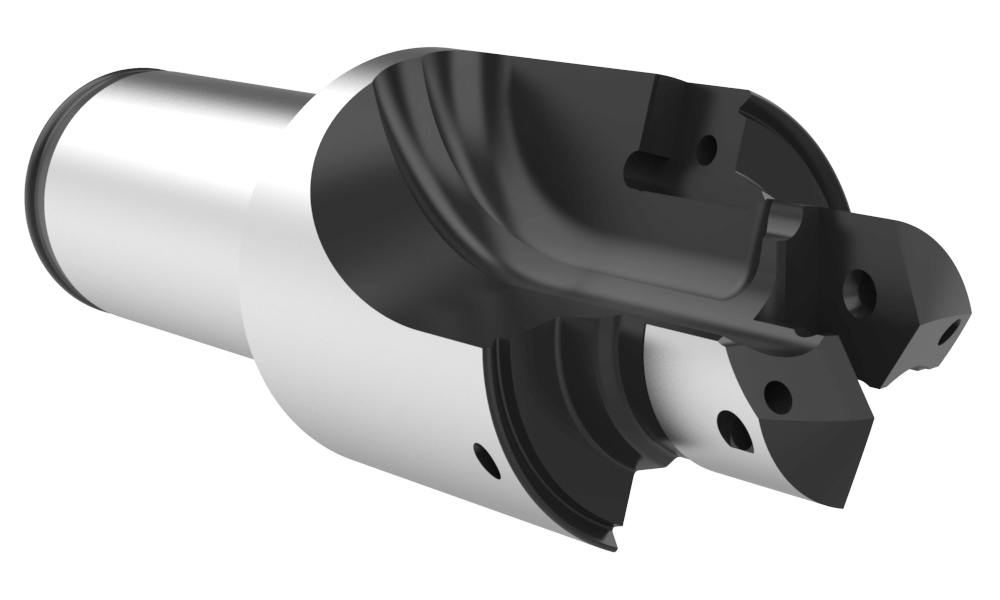

Default Image
Angle

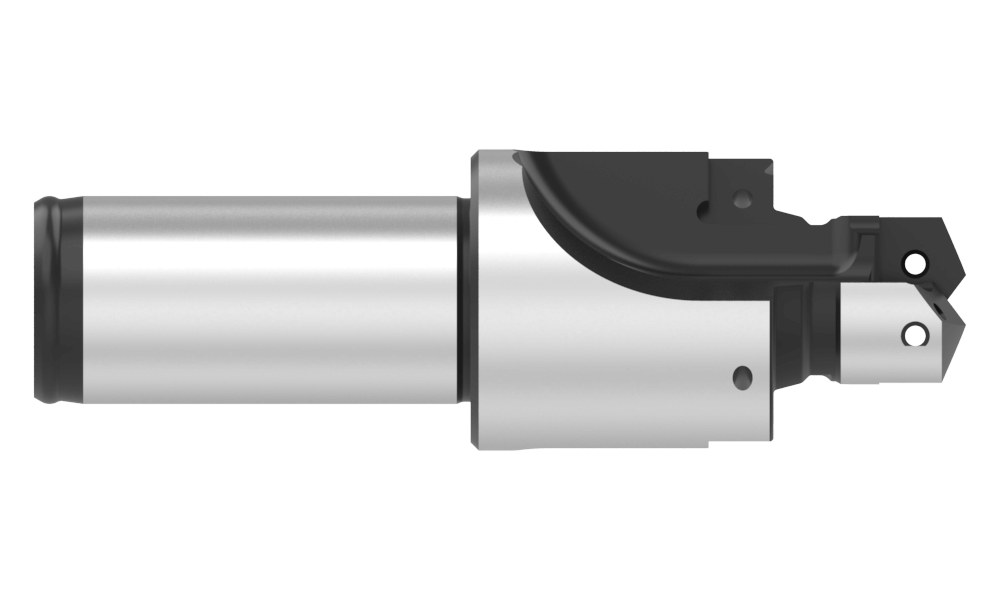

Front

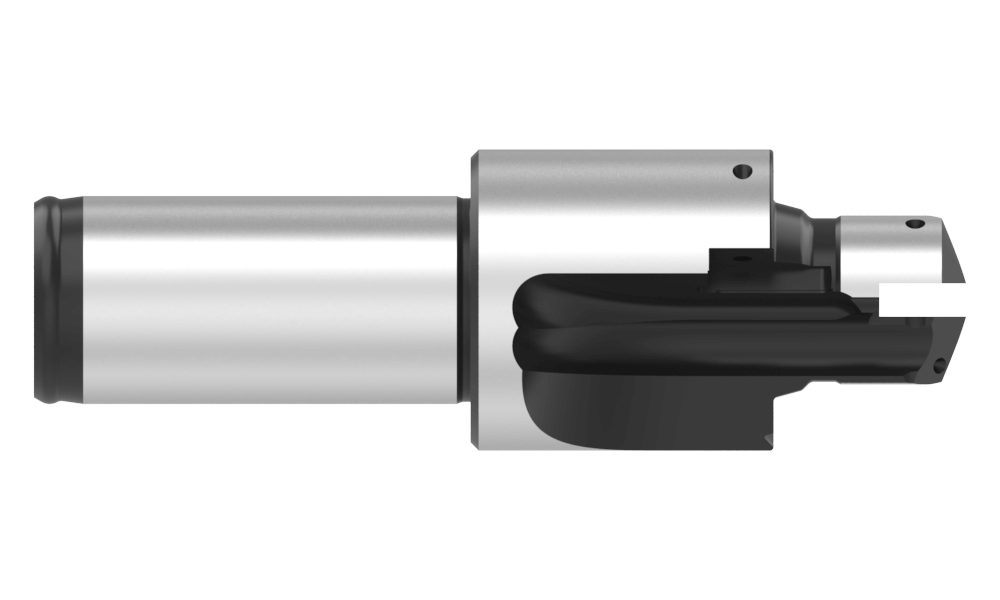

Top
Product Specifications
Specification ISO
Port Standard 6149-1
Tube Size -8
Ridge Capable
Series 0
Spotface diameter mm 30.00
Flute Type Straight
Overall length mm 89.5
Tool Reference Length mm 50.3
Body length mm 47.6
Step Length mm 17.4
Shank type Cylindrical
Shank diameter mm 20
Shank length mm 1.650
Pipe tap rear mm 1/8 BSPT
Type of Product Replaceable Port Form Holder
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72556-IP8-1 (Qty0)
Replacement AccuPort Insert Screw
0 KIT (1) TORX PLUS,CLASS 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 72567-IP8-1 (Qty0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.46
Weight in kg (each) 0.21
Category Stocked
