J1926-324-150F
AccuPort 432® Replaceable Port Form Body: SAE J1926-1, -32, Cylindrical, Standard
AccuPort 432® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

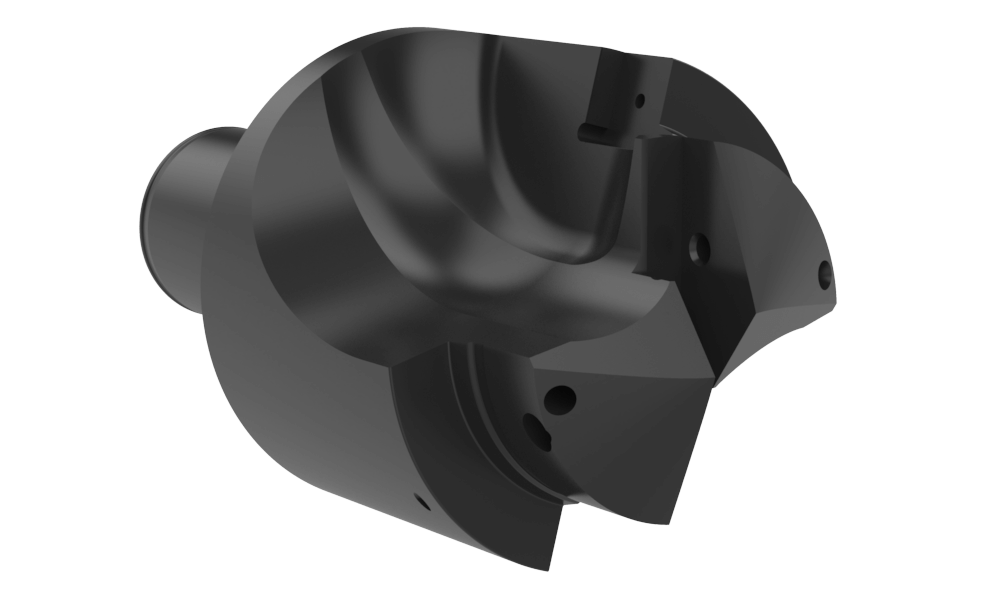

Angle

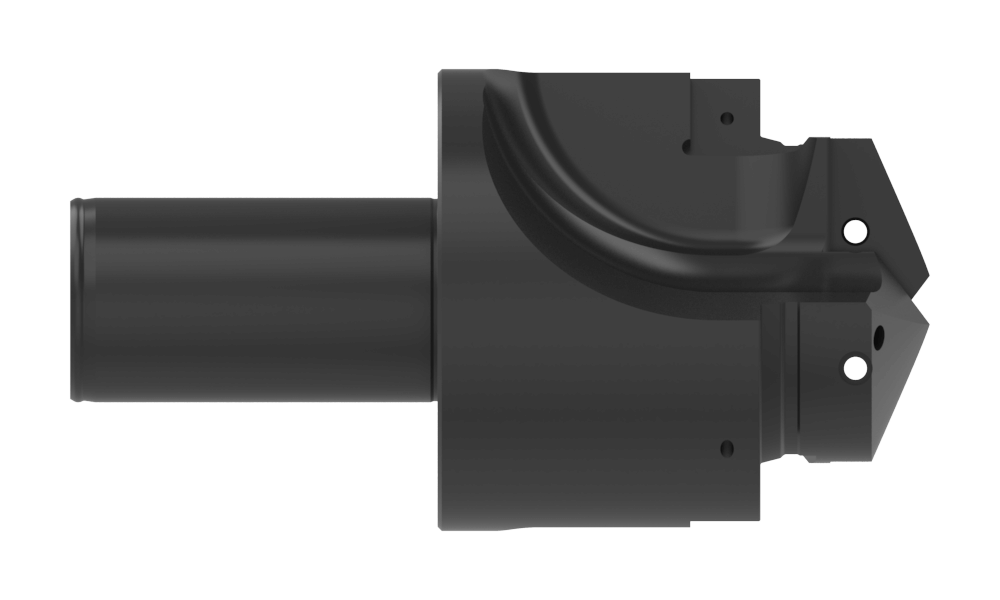

Front

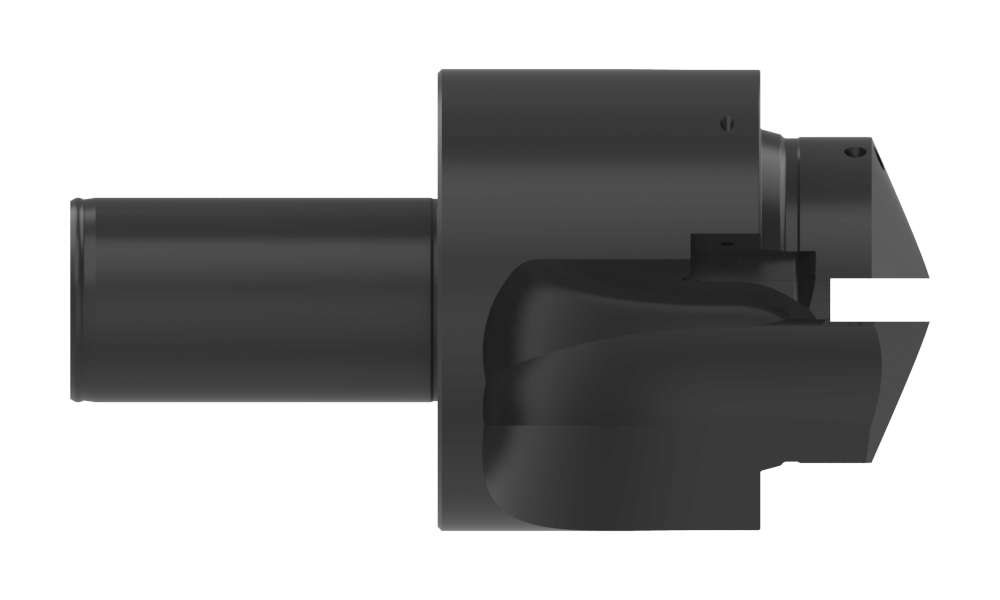

Top
Product Specifications
Specification SAE
Port Standard J1926-1
Tube Size -32
Series 4
Spotface diameter inch 3.4694
Length Type Standard
Flute Type Straight
Overall length inch 6.313
Tool Reference Length inch 3.812
Body length inch 3.625
Step Length inch 0.906
Shank type Cylindrical
Shank diameter inch 1-1/2
Shank length inch 2.688
Pipe tap rear inch 1/4 NPT
Type of Product Replaceable Port Form Holder
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement AccuPort Insert Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
AccuPort Insert Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 6.06
Weight in kg (each) 2.75
Category Stocked
