R42X35-CV50
Revolution Drill® Indexable Drill Body: 2.4000" - 2.6000", 3.5xD, CAT50 Shank
Revolution Drill® Holder

Add to cart image Add to list image







See Additional Technical Information

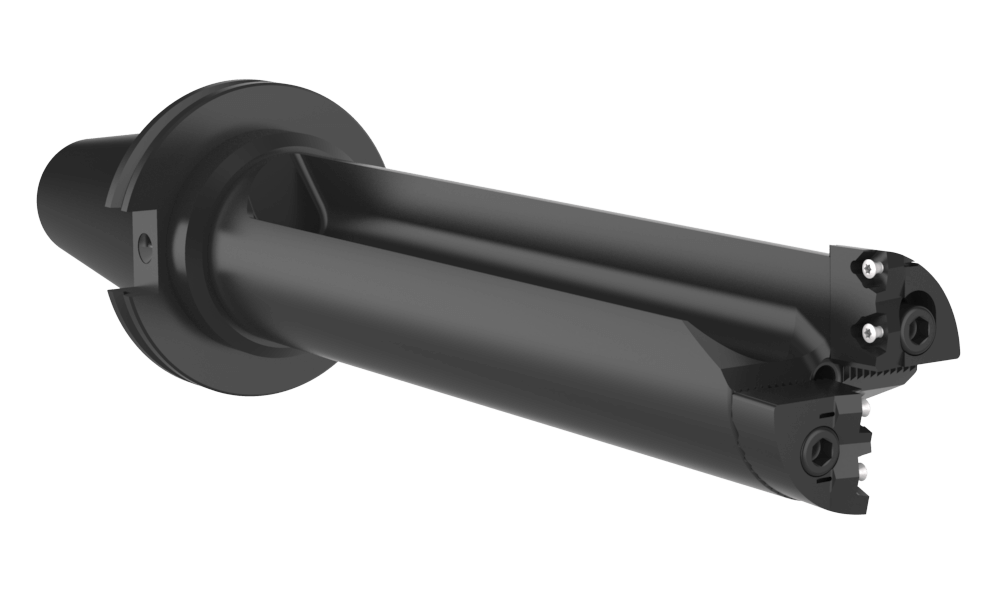

Default Image
Angle

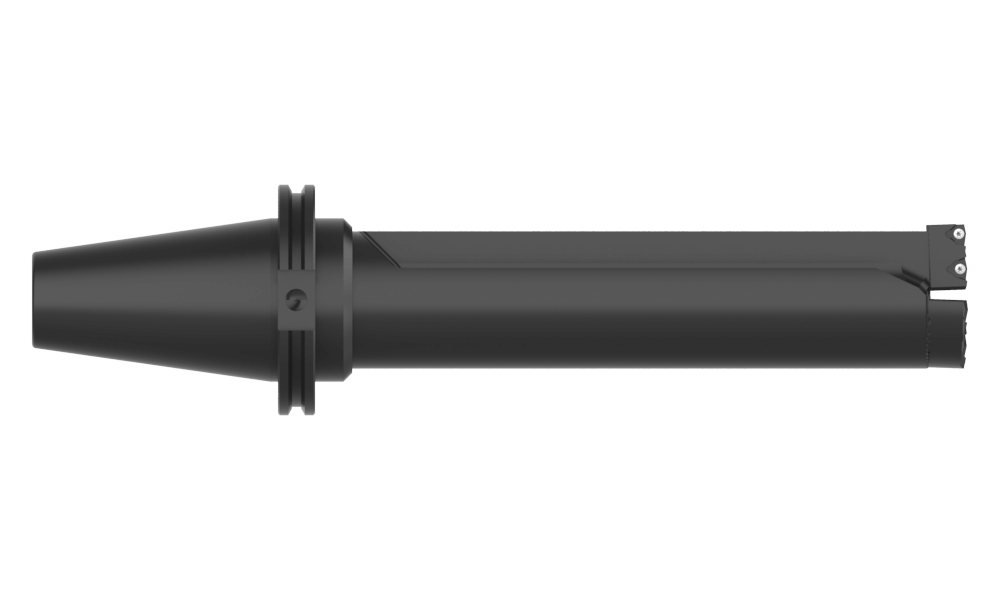

Front

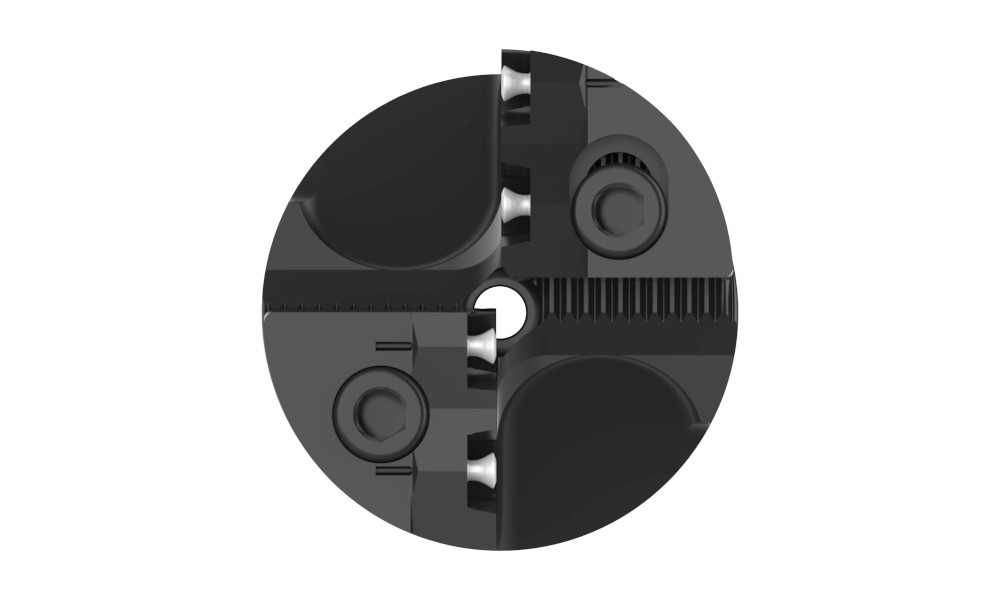

Head

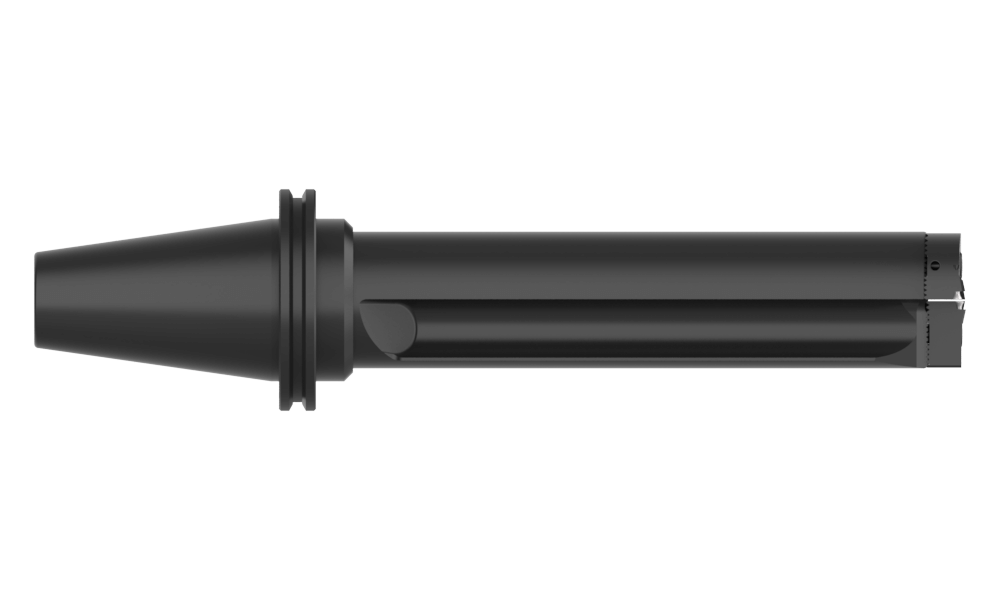

Top
Product Specifications
Series 42
Style Standard
Quantity of Inserts 4
Minimum diameter inch 2.4000
Maximum diameter inch 2.6000
Body Diameter inch 2.310
Length Type 3.5xD
Flute Type Straight
Gage length inch 11.734
Drill depth inch 9.204
Shank type CAT50
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Related Items
ImageNotAvailable.png 6mm Hex Key (Qty0)
Mounting Screw Driver
\Accessories\Torx Drivers\TORX-DRIVER.png 8T-9 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
Accessories\Adjusting Screw\Adjusting Screw_ANGLE.png AS-18T9-1 (Qty0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
Accessories\Insert Screw\Insert Screw_Angle.png IS-10-1 (Qty0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
Accessories\Mounting Screw\Mounting Screw_ANGLE.png MS-19M-1 (Qty0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 15.15
Weight in kg (each) 6.88
Category Stocked
