TM09948-3T2X
AccuThread® T3 Solid Carbide Threadmill: UN 48, #3, Helical 3 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

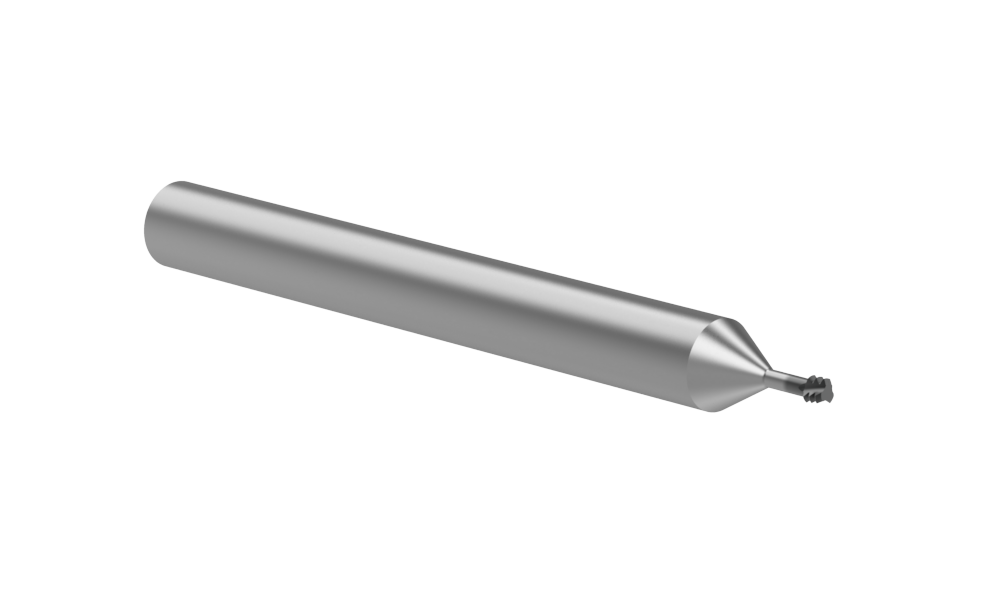

Angle

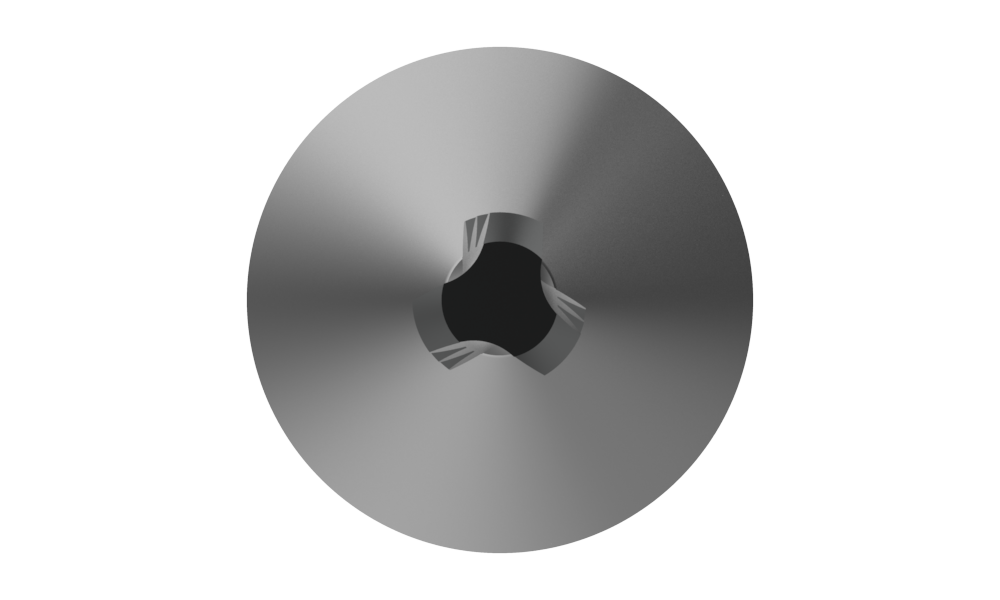

Front

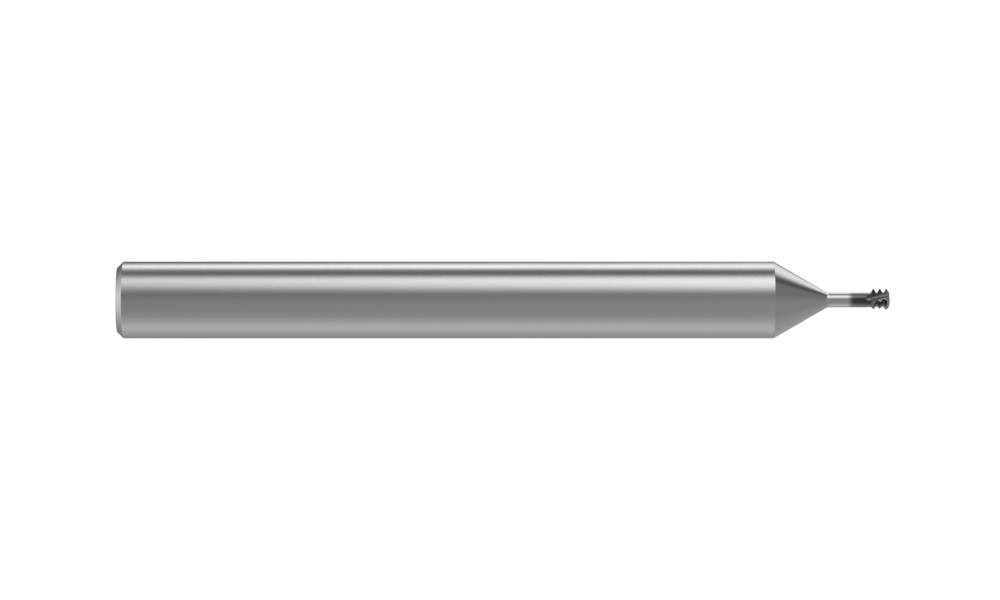

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 2X
Weldon Flat (Yes/No) No
Material Carbide
Shank Diameter (inch) 0.25
Pitch 48
Overall Length (inch) 2.5
Number of Flutes 3
Coating AM210®
Shank Type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size #3
Length of Cut (inch) 0.2
Flute Type Helical
Cutting Direction Left Hand (M04)
Thread Standard UN
Cutter Diameter (inch) 0.075
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.06
Weight in kg (each) 0.03
Category Stocked
