TM10008-3T3X
AccuThread® T3 Solid Carbide Threadmill: UN 8, 1", Helical 4 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

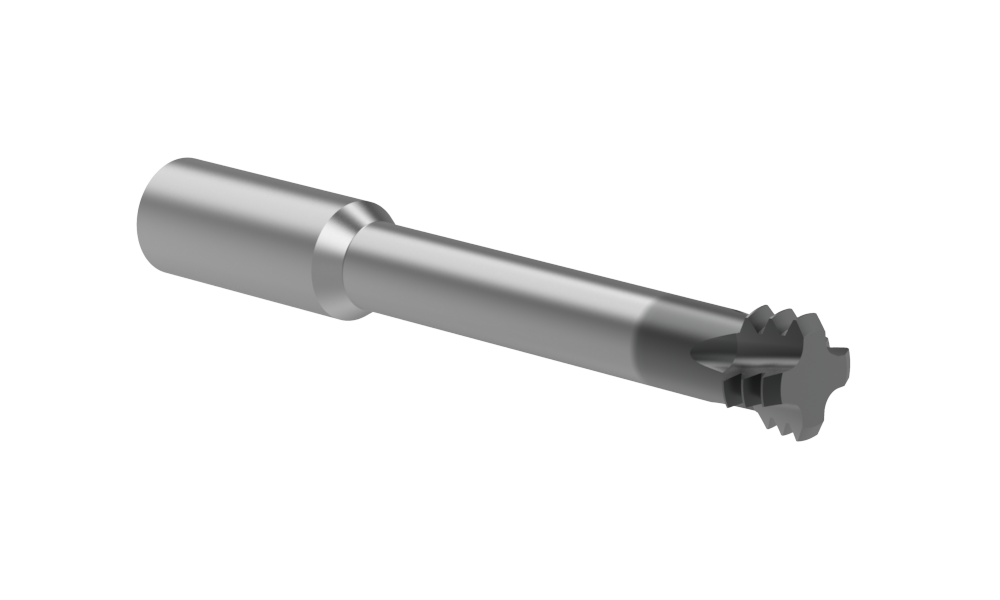

Angle

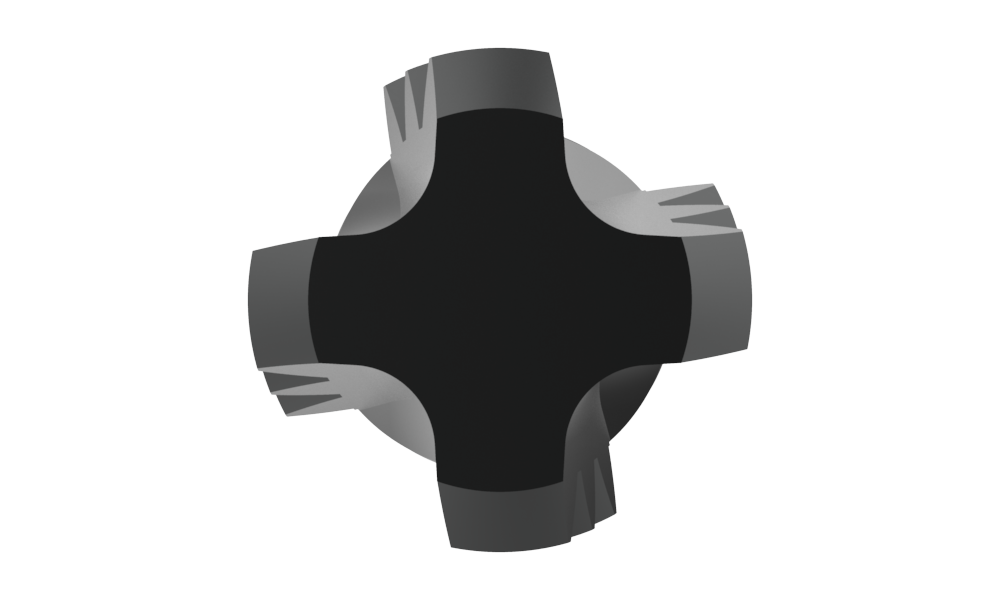

Front

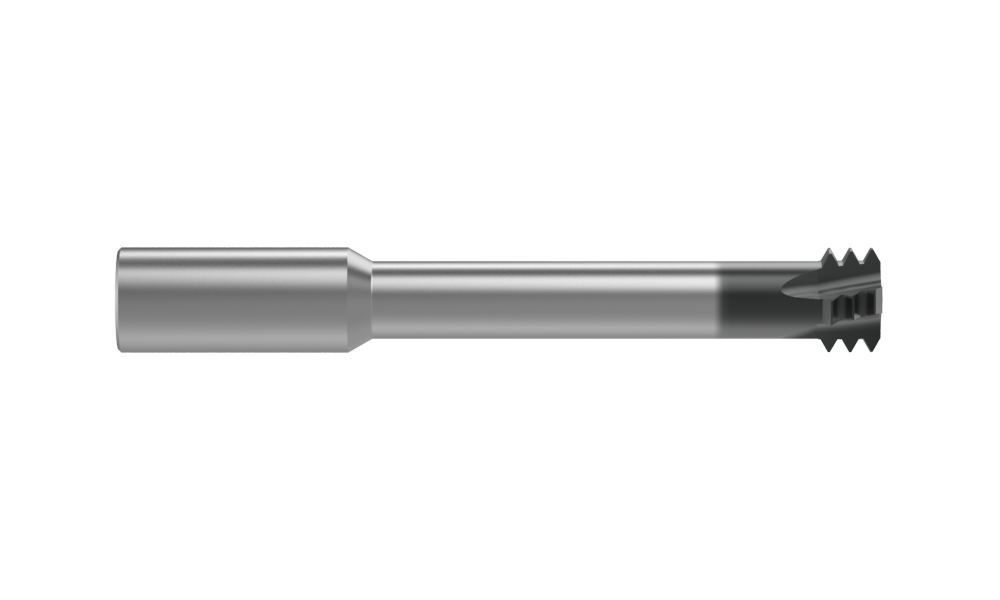

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 3X
Weldon Flat No
Material Carbide
Shank diameter inch 0.625
Pitch 8
Overall length inch 4.5
Number of Flutes 4
Coating AM210®
Shank type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size 1"
Length of cut inch 3
Flute Type Helical
Cutting direction Left Hand (M04)
Thread Standard UN
Cutter Diameter inch 0.62
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.51
Weight in kg (each) 0.23
Category Stocked
