TM11BSPT
ThreadMills USA® Solid Carbide Threadmill: BSPT 11, 1", Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

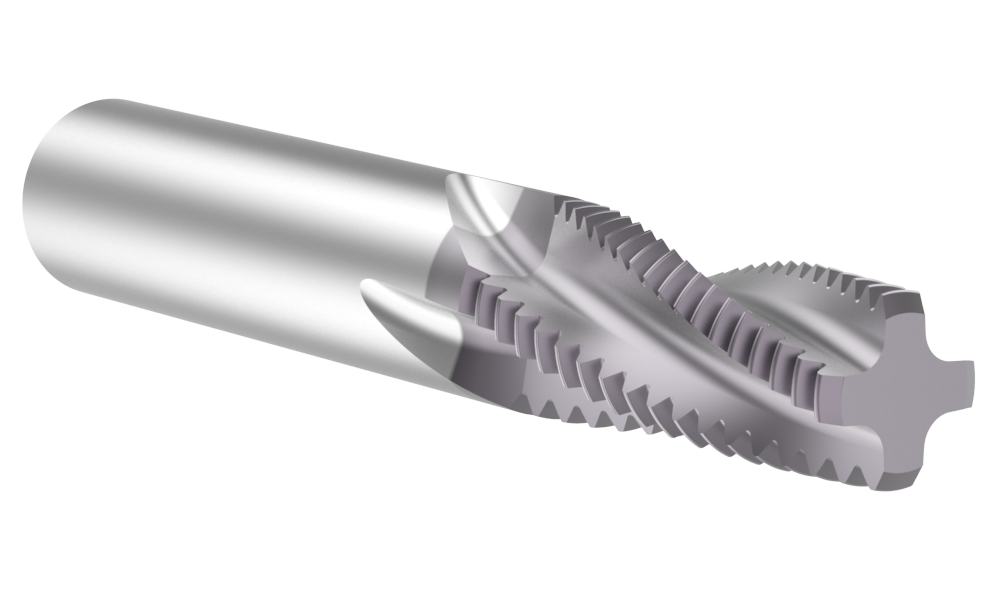

Default Image
Angle

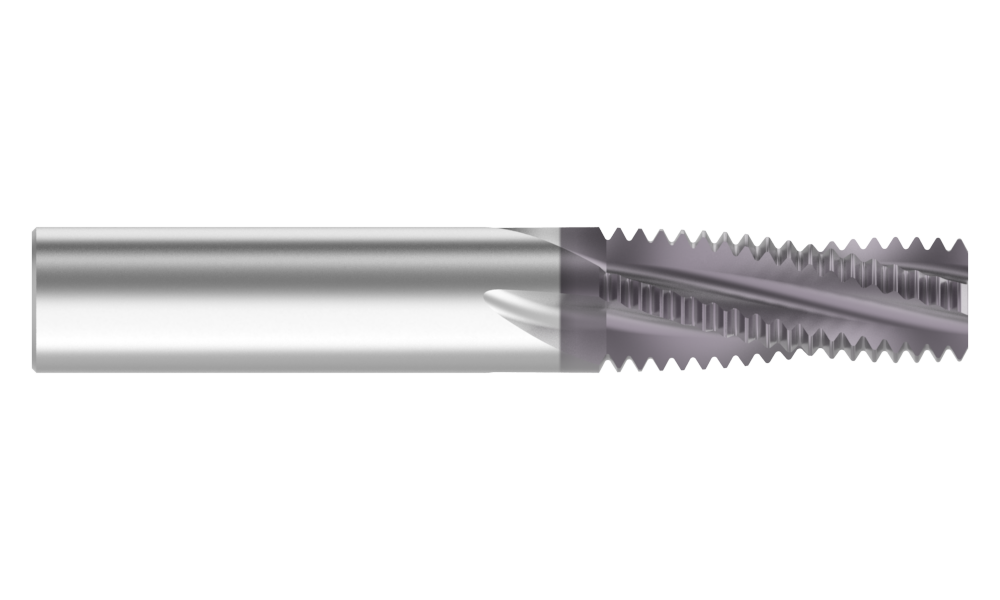

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length inch 4
Shank diameter inch 0.625
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard BSPT
Minimum Thread Size 1"
Pitch 11
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter inch 0.62
Length of cut inch 1.546
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.49
Weight in kg (each) 0.22
Category Stocked
