TM14NPTF
ThreadMills USA® Solid Carbide Threadmill: NPTF 14, 1/2" and 3/4", Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

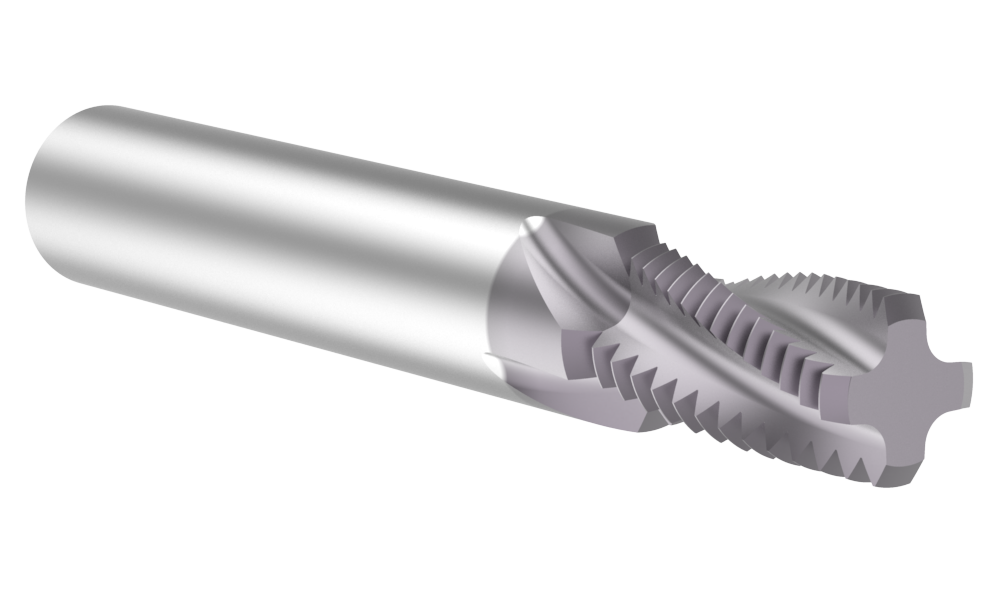

Default Image
Angle

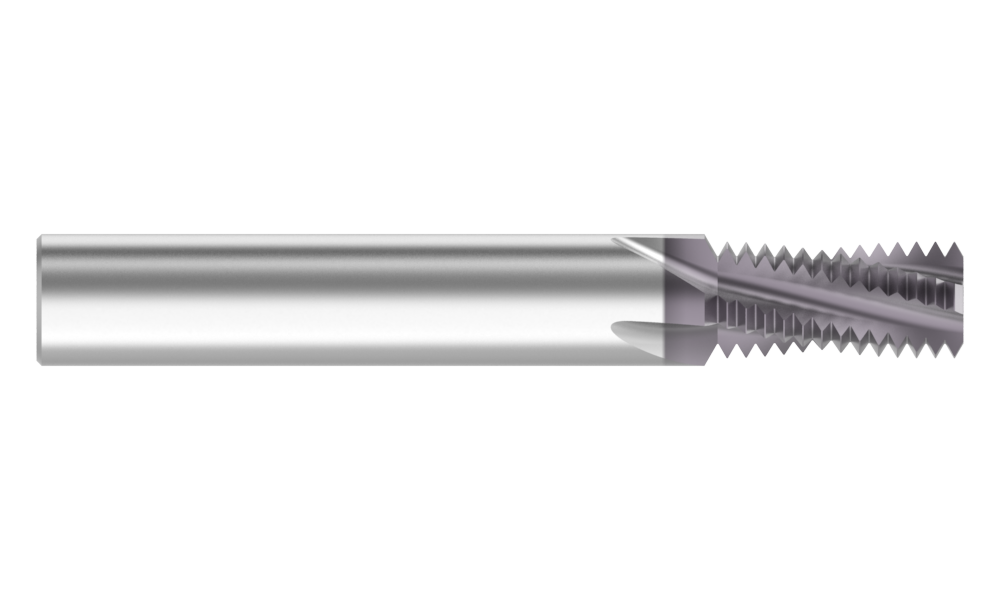

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length inch 3.5
Shank diameter inch 0.500
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPTF
Minimum Thread Size 1/2" and 3/4"
Pitch 14
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter inch 0.495
Length of cut inch 0.875
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.3
Weight in kg (each) 0.14
Category Stocked
