TM18150M-3T2X
AccuThread® T3 Solid Carbide Threadmill: ISO 1.5, M18, Helical 4 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

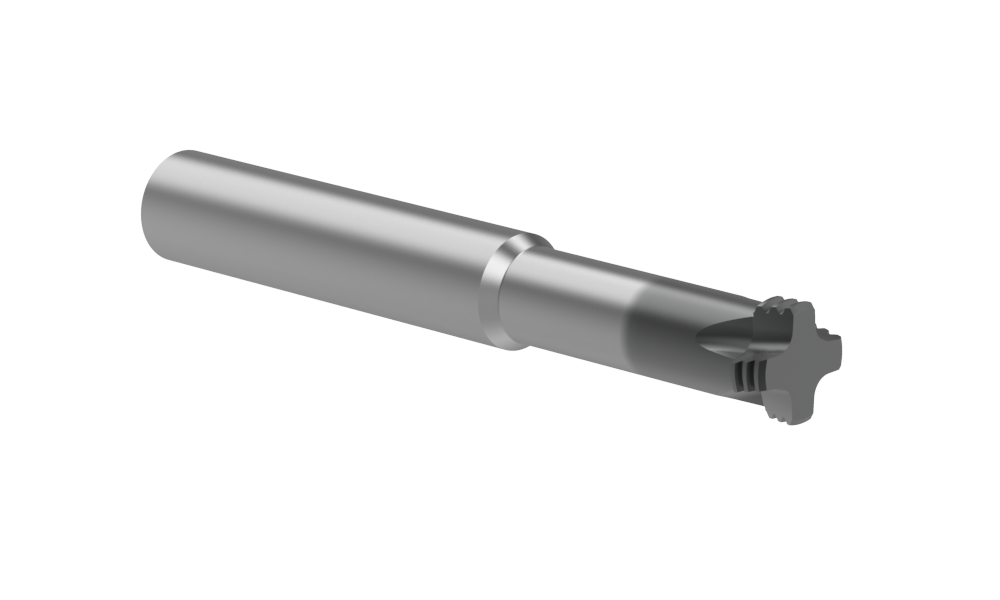

Angle

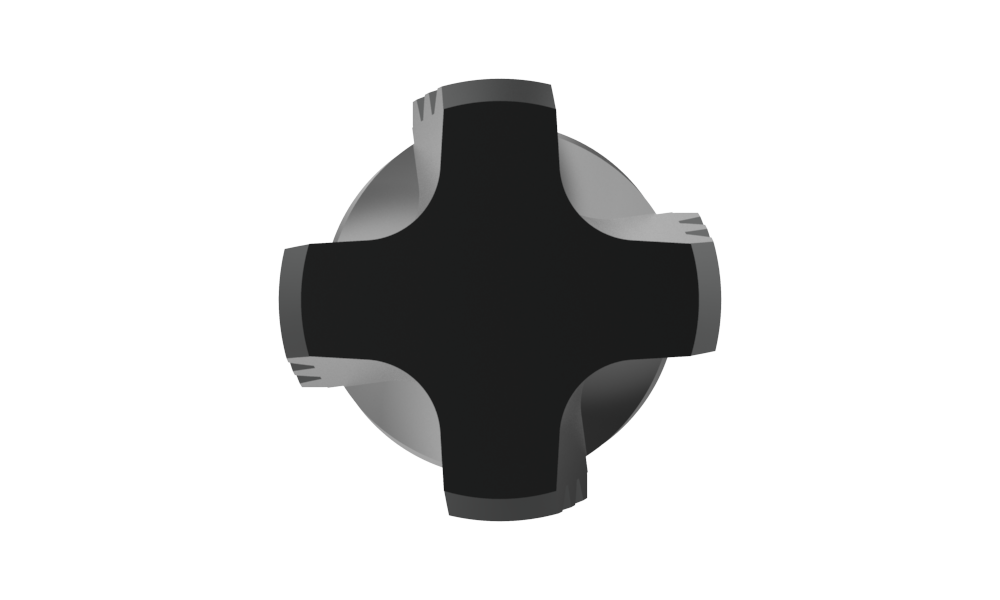

Front
Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 2X
Weldon Flat No
Material Carbide
Overall length mm 88.9
Pitch 1.5
Number of Flutes 4
Coating AM210®
Shank type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size M18
Cutter Diameter mm 11.94
Length of cut mm 36.07
Shank diameter mm 12
Flute Type Helical
Cutting direction Left Hand (M04)
Thread Standard ISO
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.28
Weight in kg (each) 0.13
Category Stocked
