TM18NPTF
ThreadMills USA® Solid Carbide Threadmill: NPTF 18, 1/4" and 3/8", Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

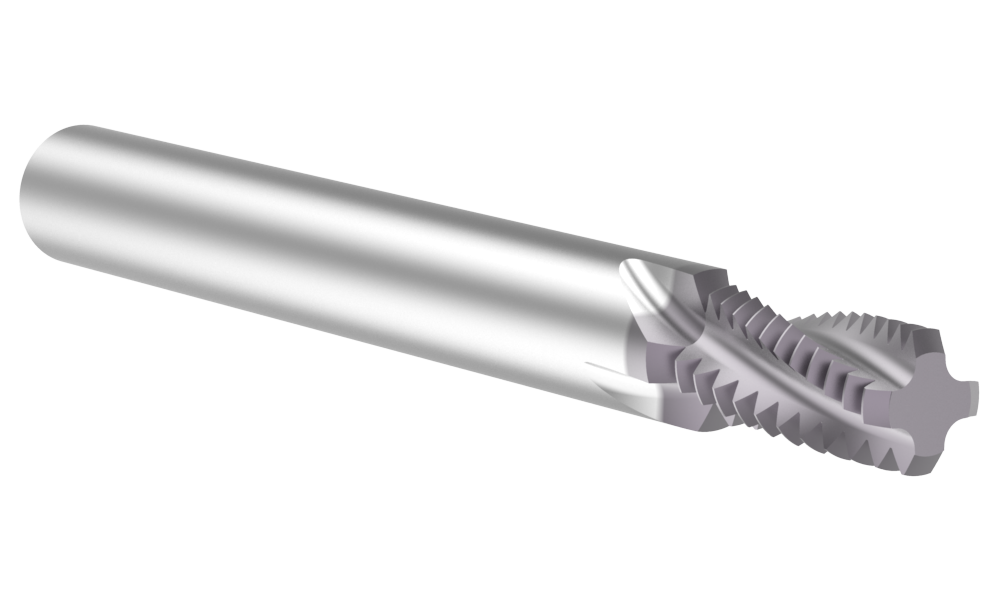

Default Image
Angle

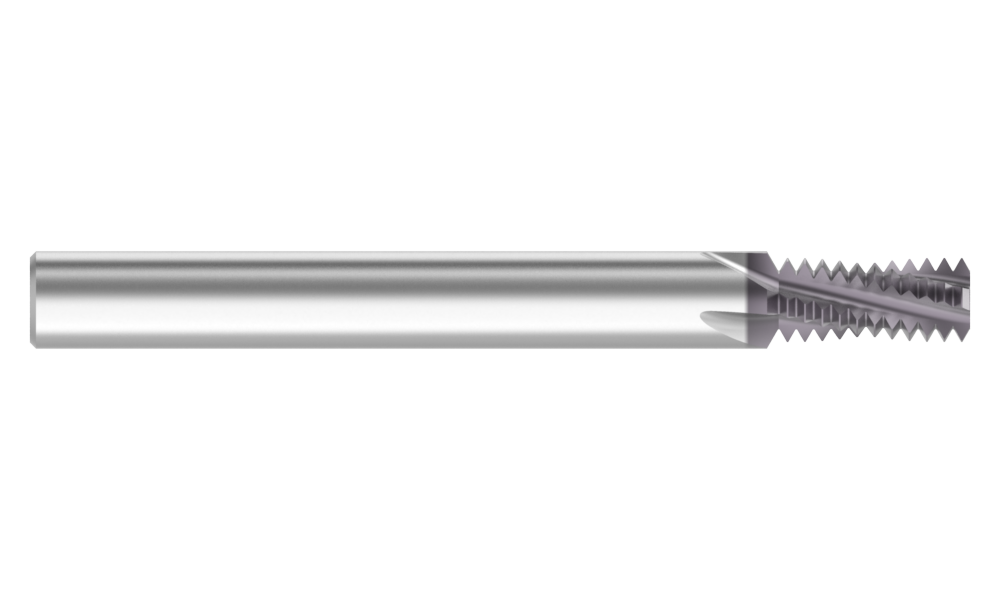

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 3
Shank Diameter (inch) 0.312
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPTF
Minimum Thread Size 1/4" and 3/8"
Pitch 18
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter (inch) 0.305
Length of Cut (inch) 0.625
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.11
Weight in kg (each) 0.05
Category Stocked
