TM25045M-3T2X
AccuThread® T3 Solid Carbide Threadmill: ISO 0.45, M2.5, Helical 3 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image

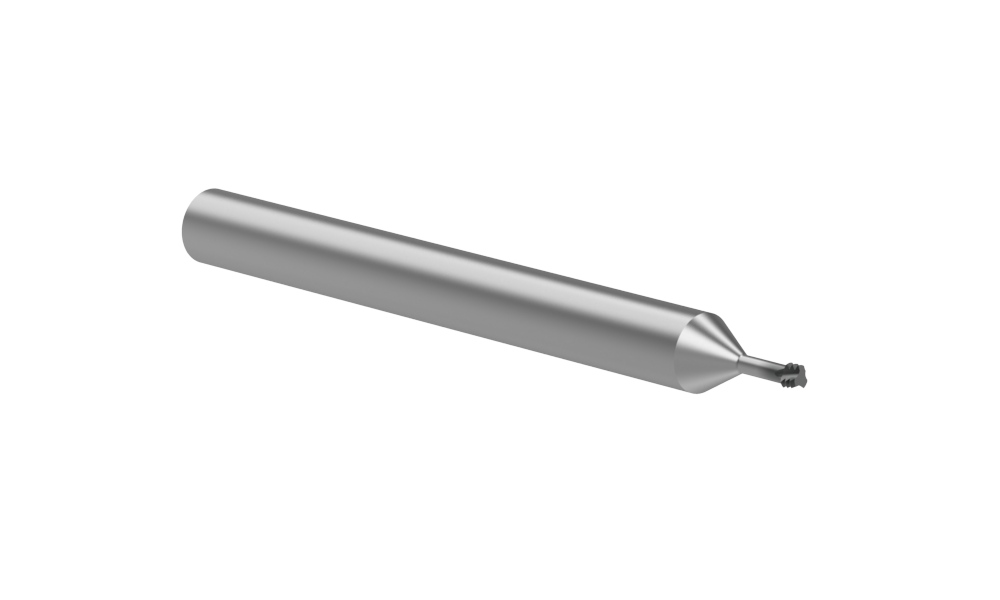

Default Image
Angle

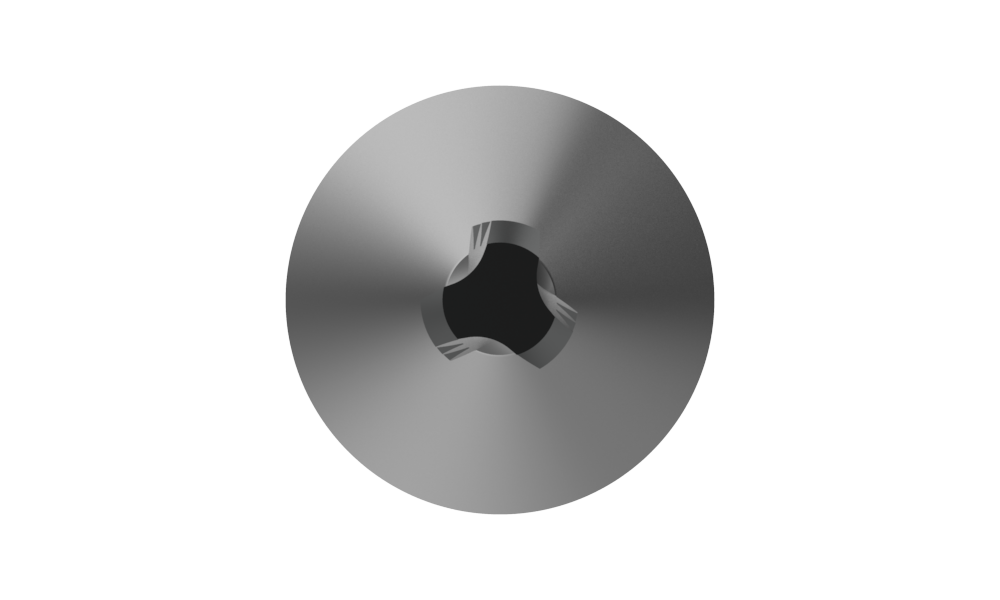

Front

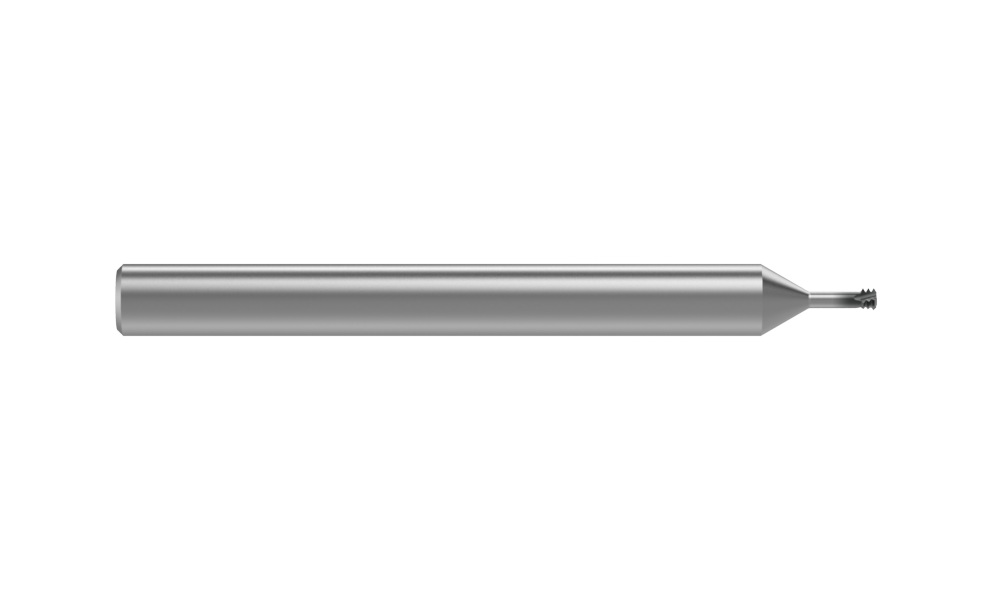

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 2X
Weldon Flat No
Material Carbide
Overall length mm 63.00
Pitch 0.45
Number of Flutes 3
Coating AM210®
Shank type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size M2.5
Cutter Diameter mm 1.96
Length of cut mm 5.60
Shank diameter mm 6.00
Flute Type Helical
Cutting direction Left Hand (M04)
Thread Standard ISO
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.05
Weight in kg (each) 0.02
Category Stocked
