TM28BSPT
ThreadMills USA® Solid Carbide Threadmill: BSPT 28, 1/16" and 1/8", Helical 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

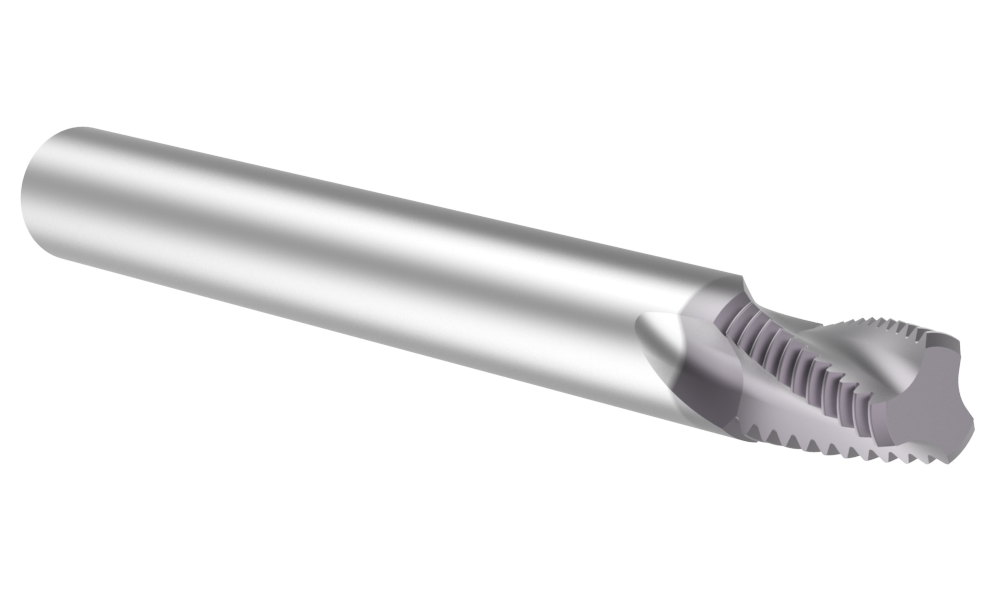

Default Image
Angle

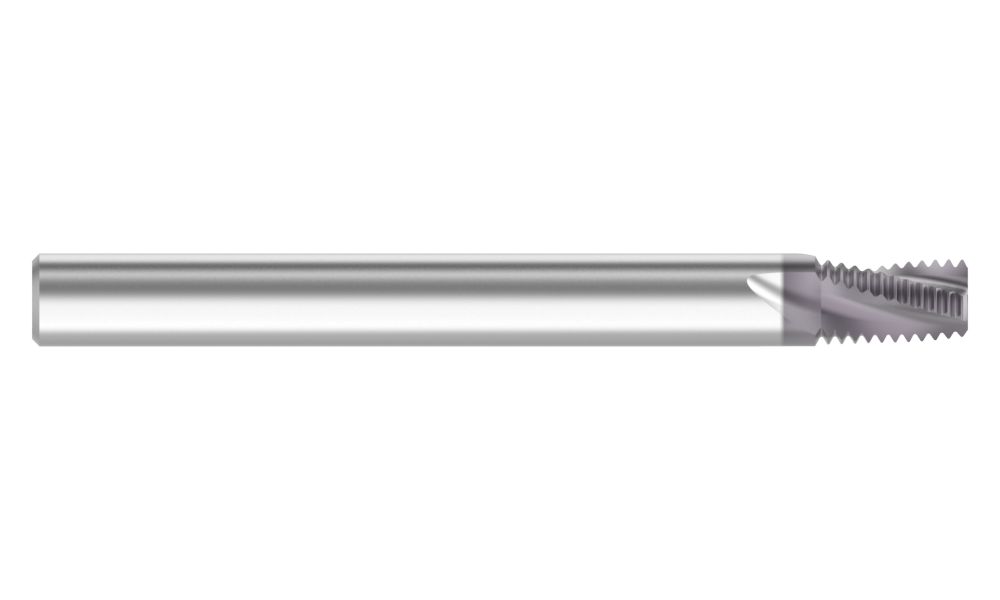

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 2.5
Shank Diameter (inch) 0.250
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard BSPT
Minimum Thread Size 1/16" and 1/8"
Pitch 28
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter (inch) 0.24
Length of Cut (inch) 0.393
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.06
Weight in kg (each) 0.03
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.008 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYETHYLENE
Total Recycled Content 0.00%
Weight 0.007 lbs
Recycleable? Yes
Contains PFAS? No
