TM75010M-3T3X
AccuThread® T3 Solid Carbide Threadmill: UN 10, 3/4", Helical 4 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

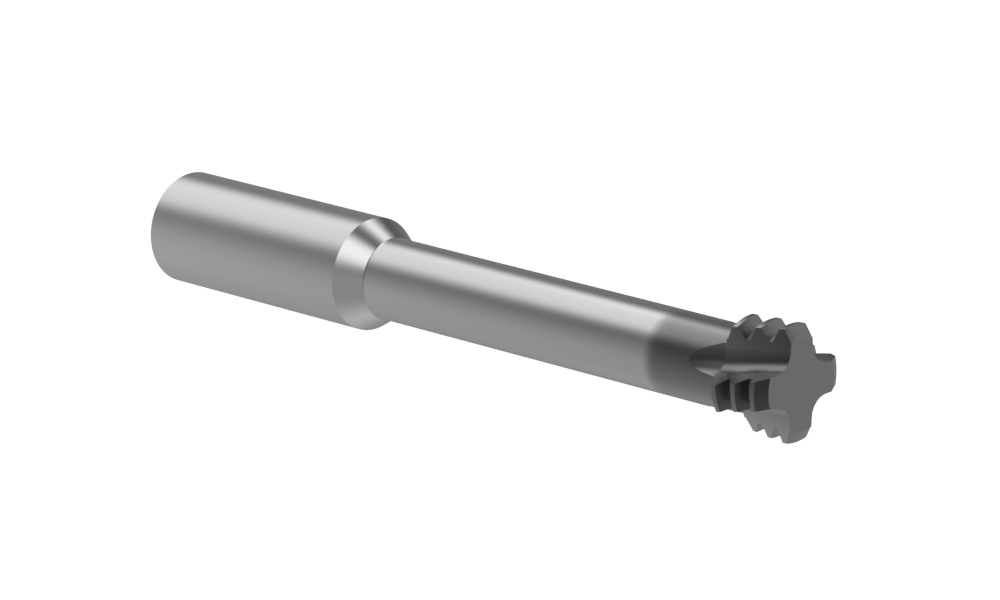

Angle

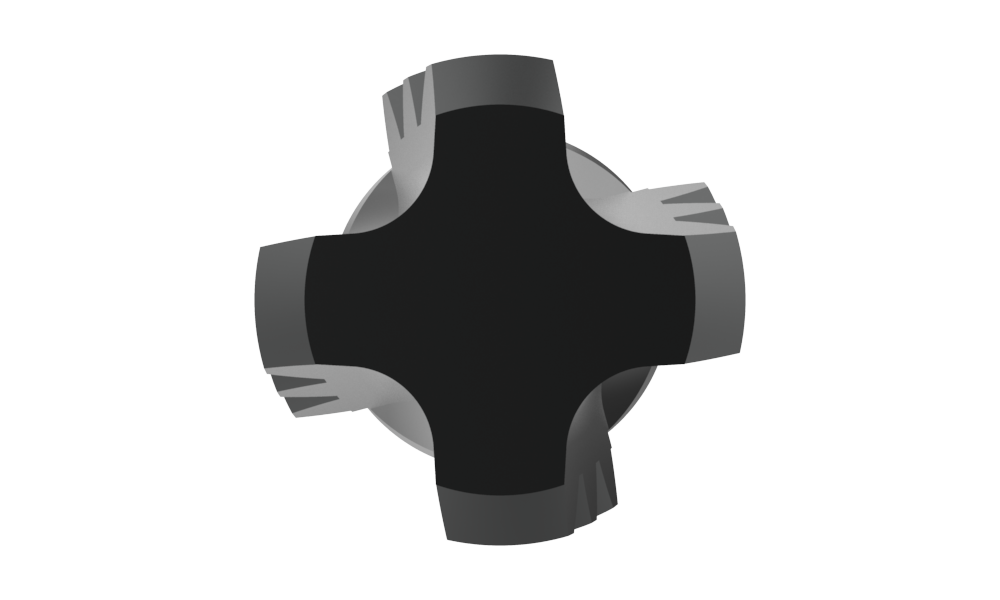

Front

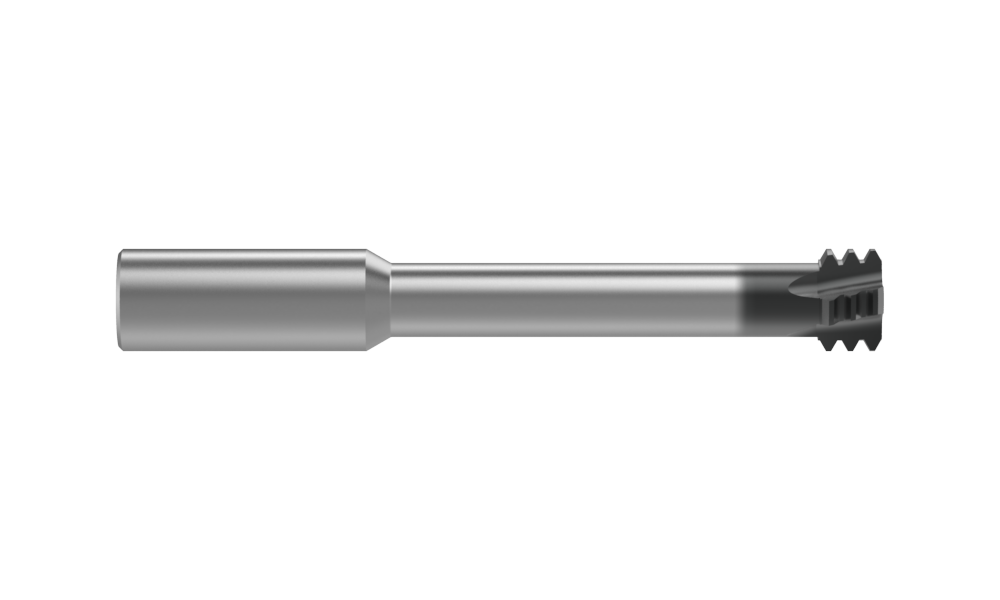

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 3X
Weldon Flat No
Material Carbide
Overall length mm 88.9
Pitch 10
Number of Flutes 4
Coating AM210®
Shank type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size 3/4"
Cutter Diameter mm 11.94
Length of cut mm 57.15
Shank diameter mm 12
Flute Type Helical
Cutting direction Left Hand (M04)
Thread Standard UN
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.23
Weight in kg (each) 0.1
Category Stocked
