TM75012-3T3X
AccuThread® T3 Solid Carbide Threadmill: UN 12, 3/4", Helical 4 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image
Angle

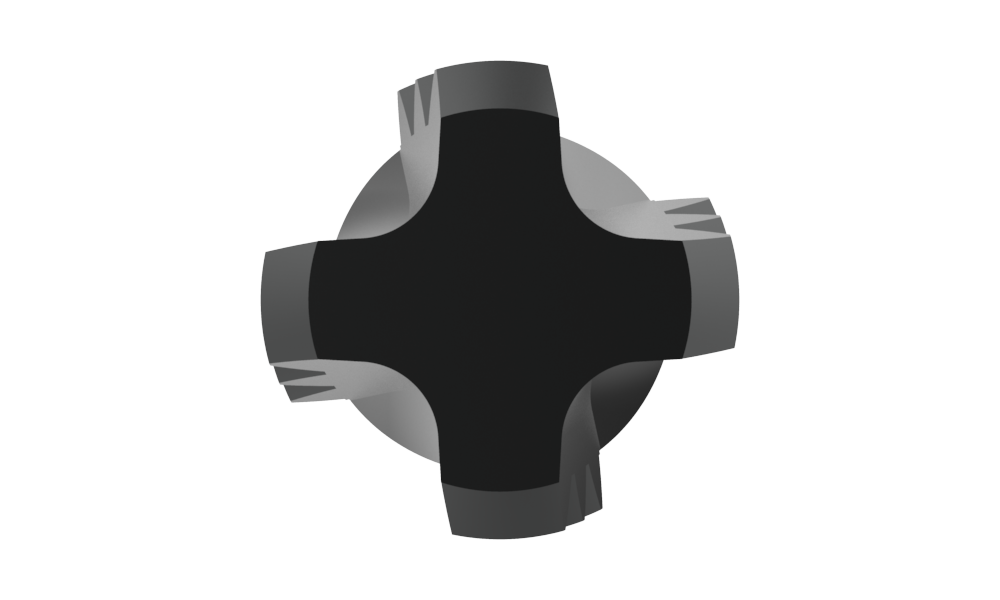

Front

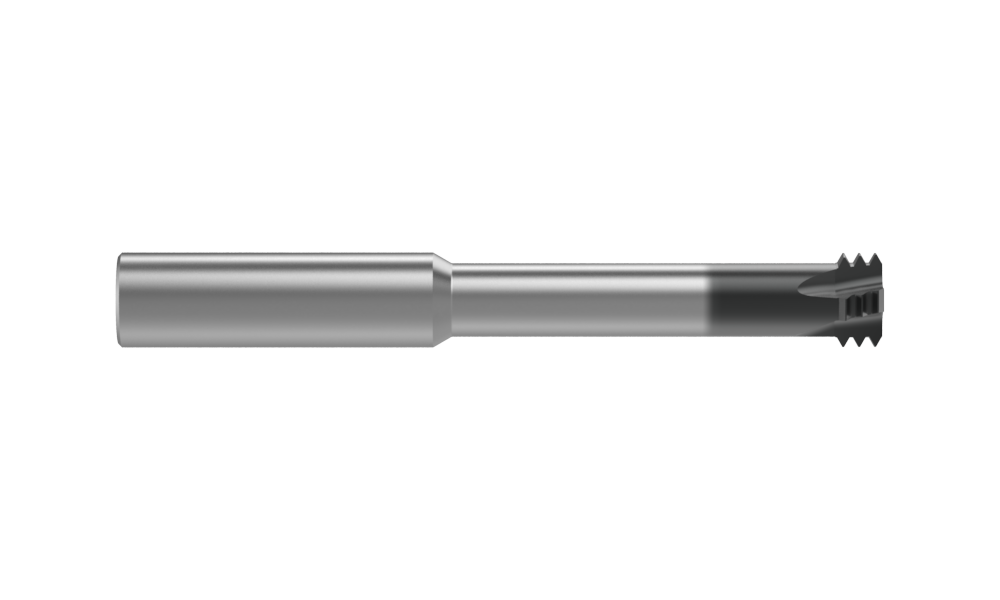

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 3X
Weldon Flat No
Material Carbide
Shank diameter inch 0.5
Pitch 12
Overall length inch 4
Number of Flutes 4
Coating AM210®
Shank type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size 3/4"
Length of cut inch 2.25
Flute Type Helical
Cutting direction Left Hand (M04)
Thread Standard UN
Cutter Diameter inch 0.495
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.32
Weight in kg (each) 0.15
Category Stocked
