TM8NPTCHM
ThreadMills USA® Solid Carbide Threadmill: NPT 8, 2-1/2", Helical 5 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

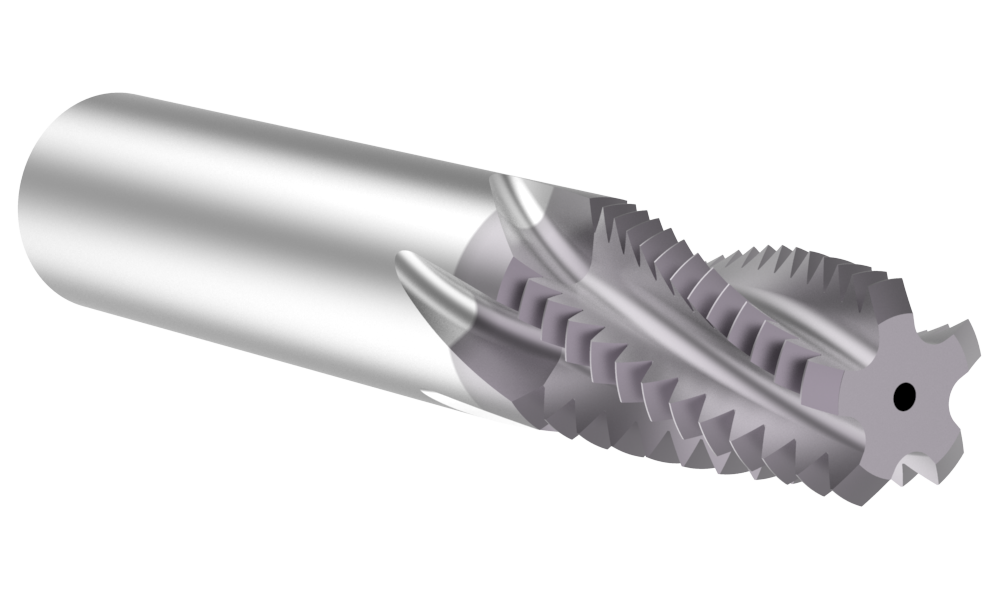

Angle

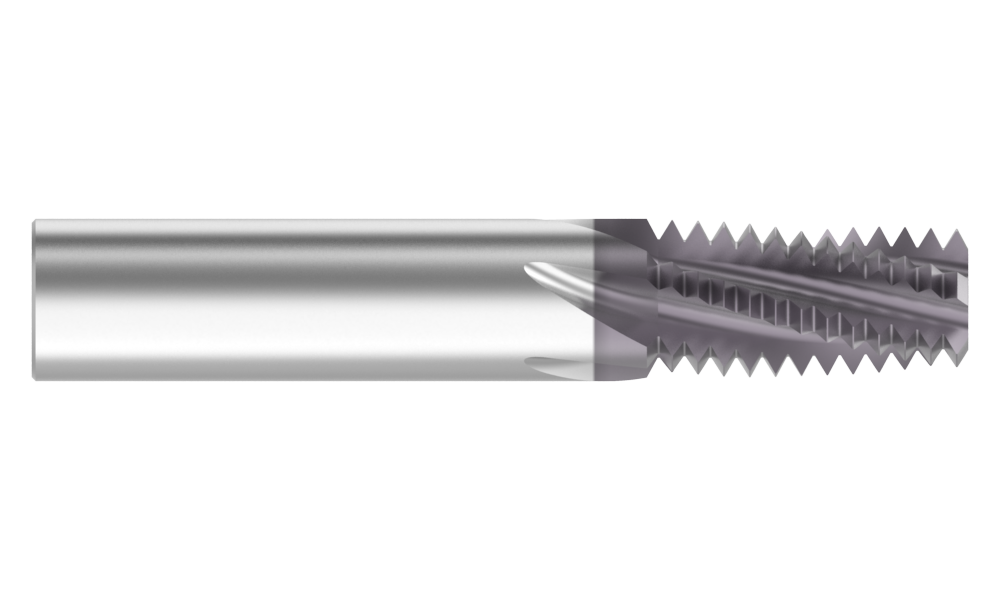

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (mm) 115
Shank Diameter (mm) 20
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPT
Minimum Thread Size 2-1/2"
Pitch 8
Number of Flutes 5
Thread Style Internal/External
Cutter Diameter (mm) 19.75
Length of Cut (mm) 38.1
Coolant Through Yes
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.91
Weight in kg (each) 0.41
Category Stocked
