TM8NPTFM
ThreadMills USA® Solid Carbide Threadmill: NPTF 8, 2-1/2", Helical 5 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

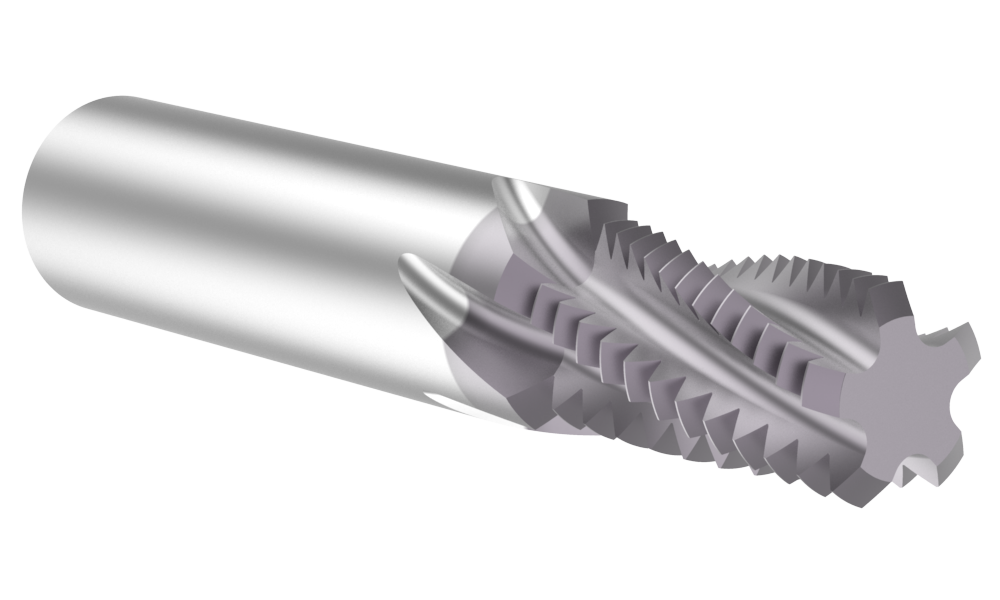

Default Image
Angle

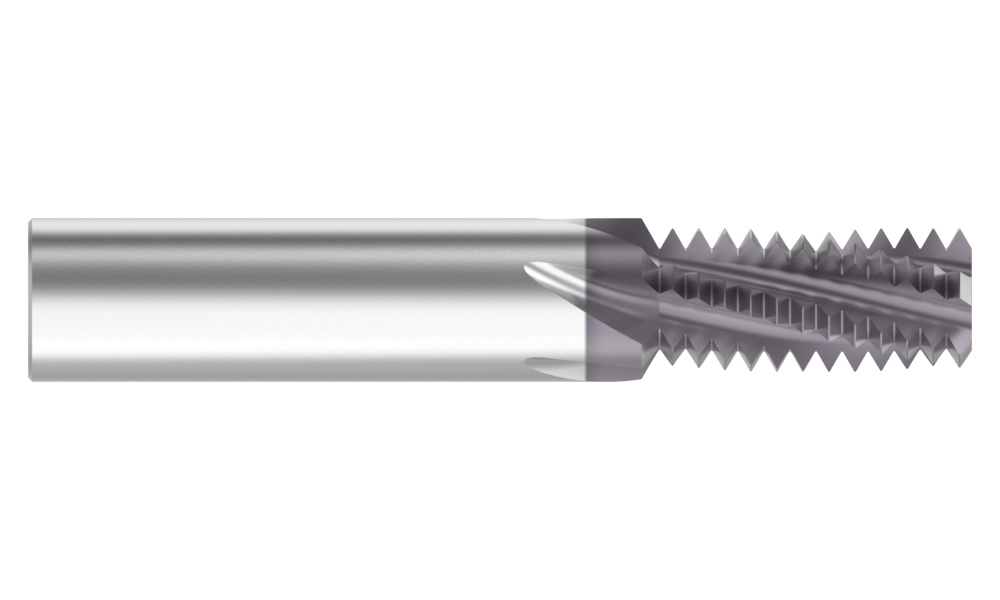

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length mm 115
Shank diameter mm 20
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPTF
Minimum Thread Size 2-1/2"
Pitch 8
Number of Flutes 5
Thread Style Internal/External
Cutter Diameter mm 19.75
Length of cut mm 38.1
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.91
Weight in kg (each) 0.41
Category Stocked
