TMNK2500-NPTF
AccuThread 856® Solid Carbide Threadmill: NPTF 8, 2-1/2", Helical 4 Flute, AM210®
AccuThread® 856 Solid

Add to cart image Add to list image







See Additional Technical Information
Default Image

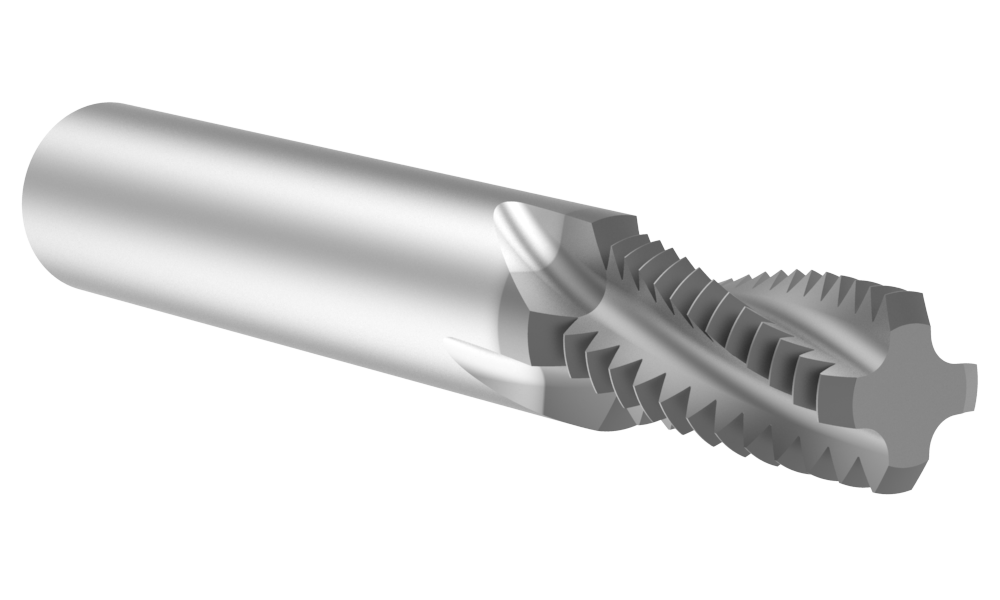

Angle

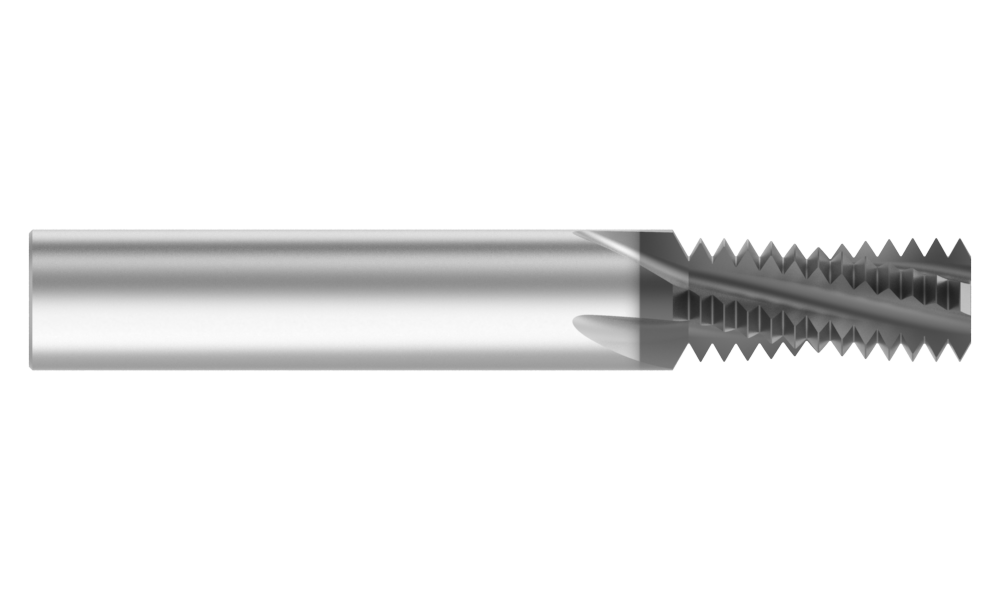

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 5
Shank Diameter (inch) 0.750
Shank Type Cylindrical
Coating AM210®
Material Carbide
Flute Type Helical
Thread Standard NPTF
Minimum Thread Size 2-1/2"
Pitch 8
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter (inch) 0.745
Length of Cut (inch) 1.5
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.94
Weight in kg (each) 0.43
Category Stocked
