TNR-1116-3F150
AccuThread 856® Indexable Threadmill Holder: Pin & Screw, 3 Flute, Neutral, Weldon Shank
AccuThread® 856 Holder

Add to cart image Add to list image







See Additional Technical Information

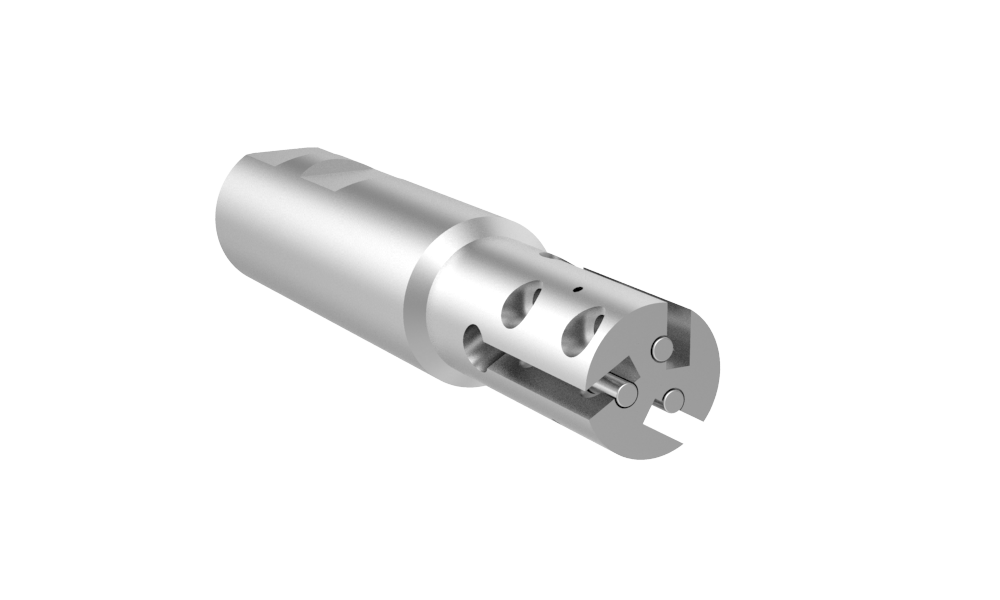

Default Image
Angle

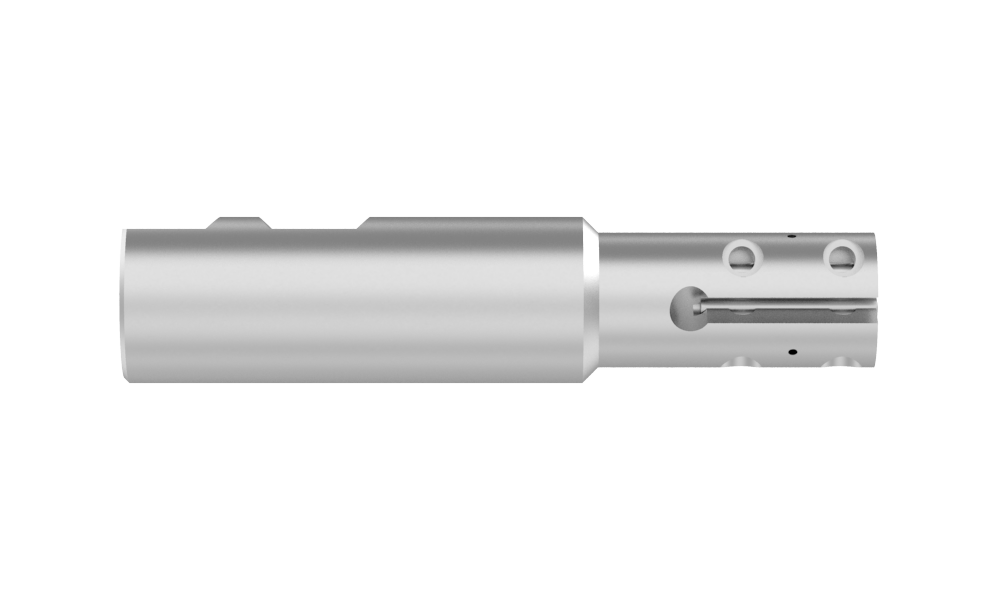

Front

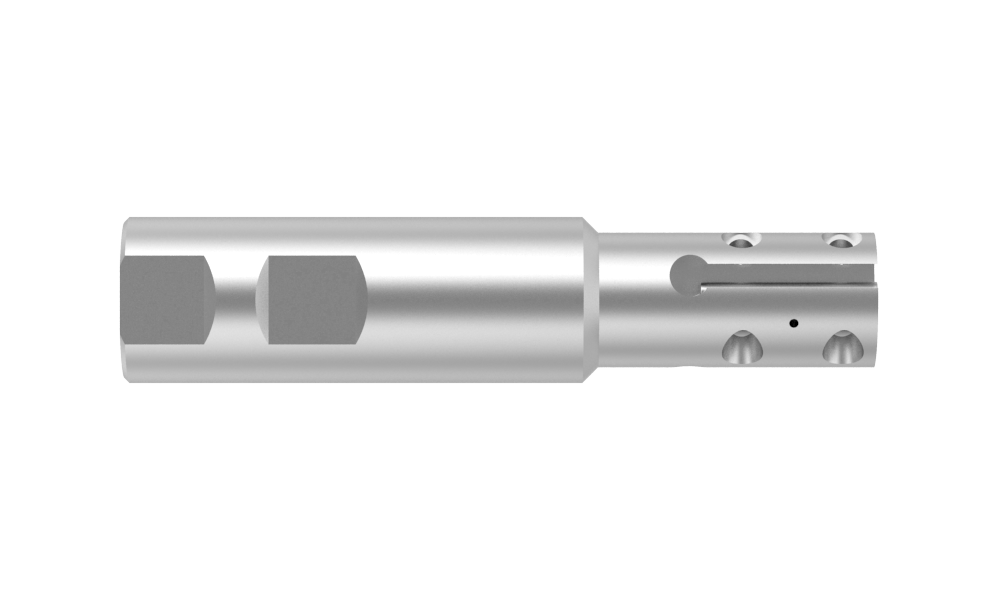

Side
Product Specifications
Type of Product Indexable Threadmill Holder
Overall length inch 4.5
Shank diameter inch 1
Insert prefix TN150K-
Shank type Weldon
Geometry Neutral
Pilot Diameter inch 0.812
Material Stainless
Flute Length inch 2.00
Number of Flutes 3
Connection Style Pin & Screw
Cutter Diameter inch 1.116
Insert Length inch 1.5
Oversize cutter diameter inch 1.247
Form Type Straight or Tapered
Key Size 3/32
Related Items
ImageNotAvailable.png 3/32" Hex Key (Qty0)
Insert Screw Driver
Threadmills\Accessories\Pin\Pin_Angle.png TMP-2 (Qty0)
Replacement Pin
TM PIN
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.3
Weight in kg (each) 0.14
Category Stocked
