TNR-1755-5F150
AccuThread 856® Indexable Threadmill Holder: Pin & Screw, 5 Flute, Neutral, Weldon Shank
AccuThread® 856 Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

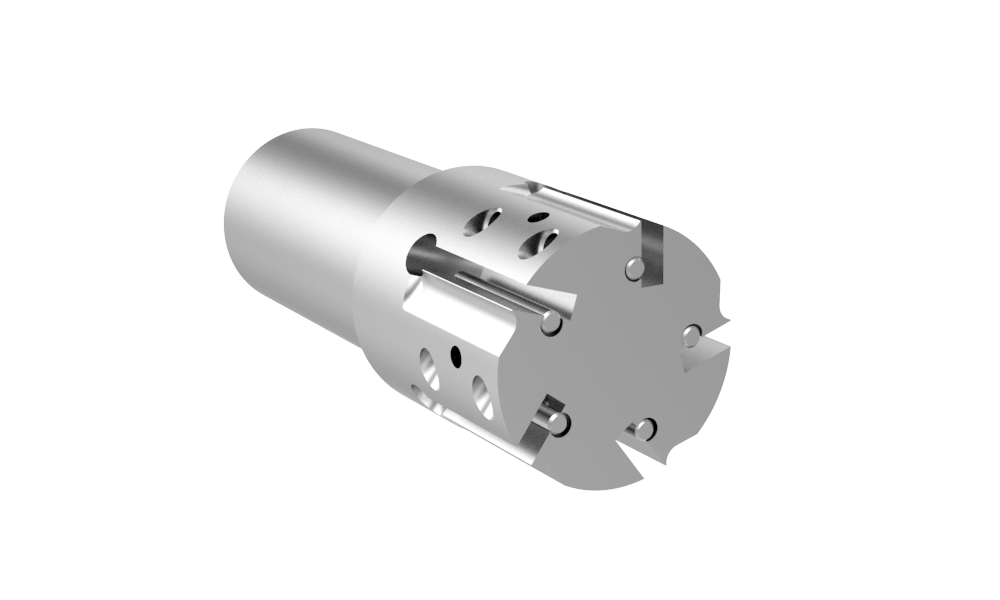

Angle

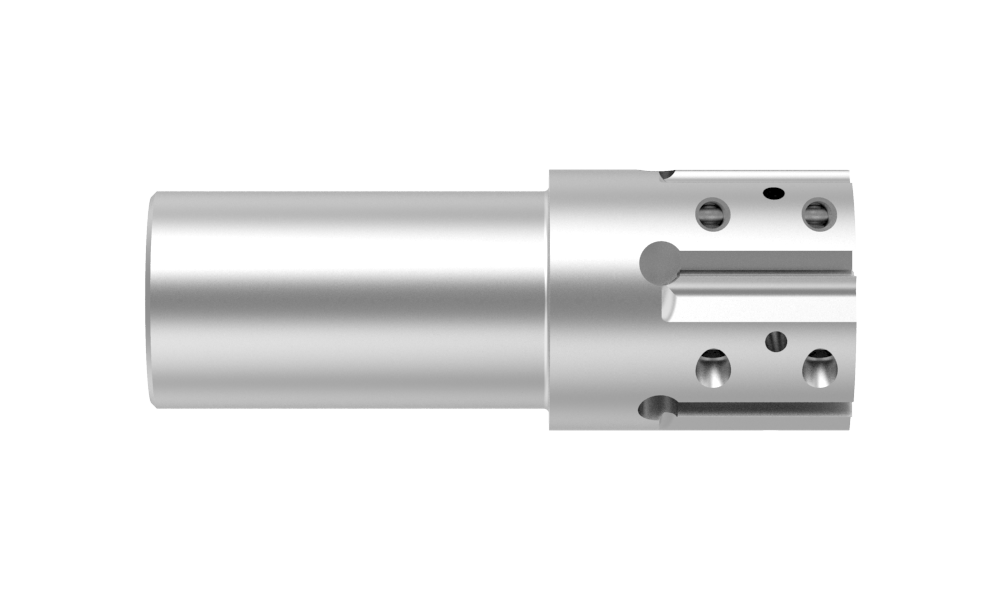

Side
Product Specifications
Type of Product Indexable Threadmill Holder
Overall length inch 4.531
Shank diameter inch 1.25
Insert prefix TN150K-
Shank type Weldon
Geometry Neutral
Pilot Diameter inch 1.5
Material Stainless
Flute Length inch 2.25
Number of Flutes 5
Connection Style Pin & Screw
Cutter Diameter inch 1.755
Insert Length inch 1.5
Oversize cutter diameter inch 1.887
Form Type Straight or Tapered
Key Size 3/32
Related Items
ImageNotAvailable.png 3/32" Hex Key (Qty0)
Insert Screw Driver
Threadmills\Accessories\Pin\Pin_Angle.png TMP-2 (Qty0)
Replacement Pin
TM PIN
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.3
Weight in kg (each) 0.14
Category Stocked
