TSR-2217-6F150
AccuThread 856® Indexable Threadmill Holder: Pin & Screw, 6 Flute, Neutral, Shell Mill Shank
AccuThread® 856 Holder

Add to cart image Add to list image







See Additional Technical Information

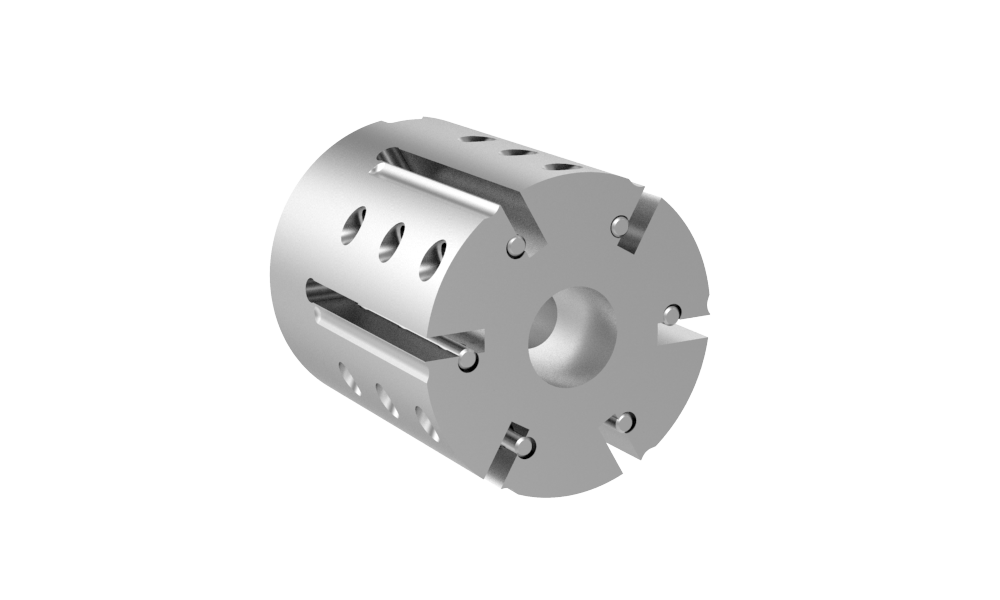

Default Image
Angle

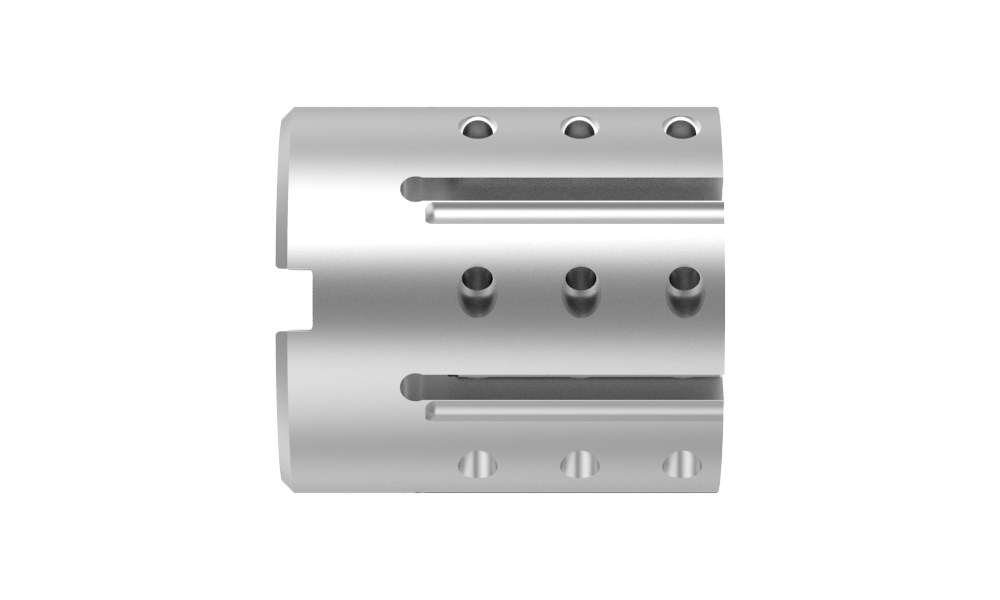

Side
Product Specifications
Type of Product Indexable Threadmill Holder
Overall length inch 2.25
Insert prefix TN150K-
Shank type Shell Mill
Geometry Neutral
Material Stainless
Number of Flutes 6
Connection Style Pin & Screw
Cutter Diameter inch 2.217
Insert Length inch 1.5
Oversize cutter diameter inch 2.349
Form Type Straight or Tapered
Bore Diameter inch 0.75
Slot width inch 0.312
Body Diameter inch 2
Key Size 3/32
Related Items
ImageNotAvailable.png 3/32" Hex Key (Qty0)
Insert Screw Driver
Threadmills\Accessories\Pin\Pin_Angle.png TMP-2 (Qty0)
Replacement Pin
TM PIN
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.3
Weight in kg (each) 0.14
Category Stocked
