V3300D-33
APX™ Pilot Head: 1.2992" (33.00 mm), T-A® Pilot
APX™ Head

Add to cart image Add to list image







See Additional Technical Information

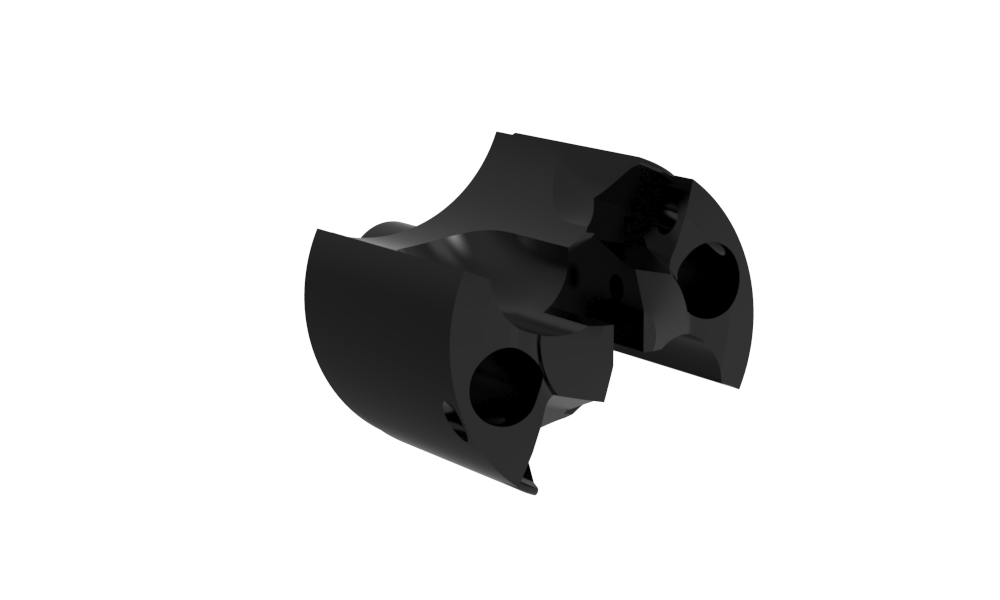

Default Image
Angle
Front

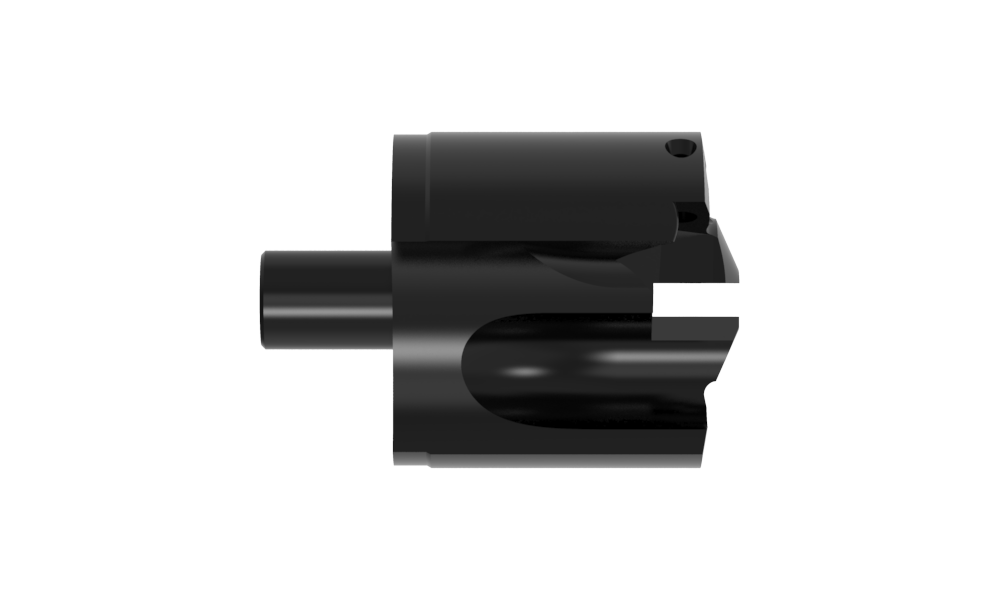

Side

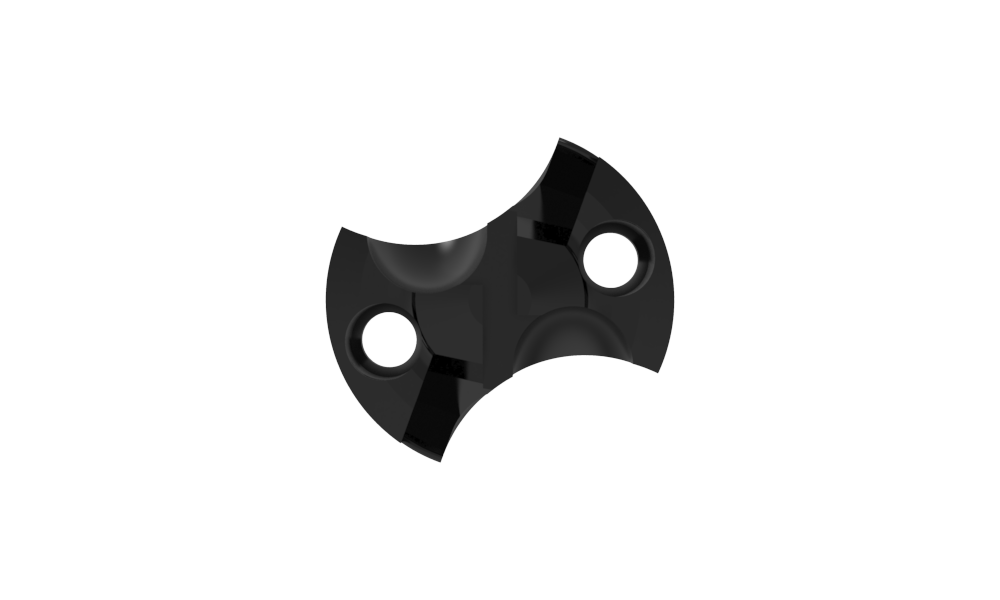

Top
Product Specifications
Series 33
Diameter mm 33.00
Diameter inch 1.2992
Pilot Head Type T-A®
Pilot series 0
Pilot Diameter mm 16.00
Pilot Diameter inch 0.6299
Pilot length inch 0.221
Pilot length mm 5.6
Style Double Effective
IC Size inch 5/16
Wear Pad No
Type of Product Indexable Drill Head
Product Application Large Diameter Drilling
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72567-IP8-1 (Qty0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 75020-IP20-1 (Qty0)
Replacement Mounting Screw
SCREW (1)TORX PLUS M5X 0,8-4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-10 (Qty0)
IC Insert Screw Driver
DRIVER, TORX PLUS HAND IP-10
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
Mounting Screw Driver
DRIVER, TORX PLUS HAND IP-20
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Accessories\Insert Screw\Insert Screw_Angle.png IS-10-1 (Qty0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.21
Weight in kg (each) 0.1
Category Stocked
