V9532S-98
APX™ Pilot Head: 3.8583" (98.00 mm), GEN3SYS® Pilot
APX™ Head

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle

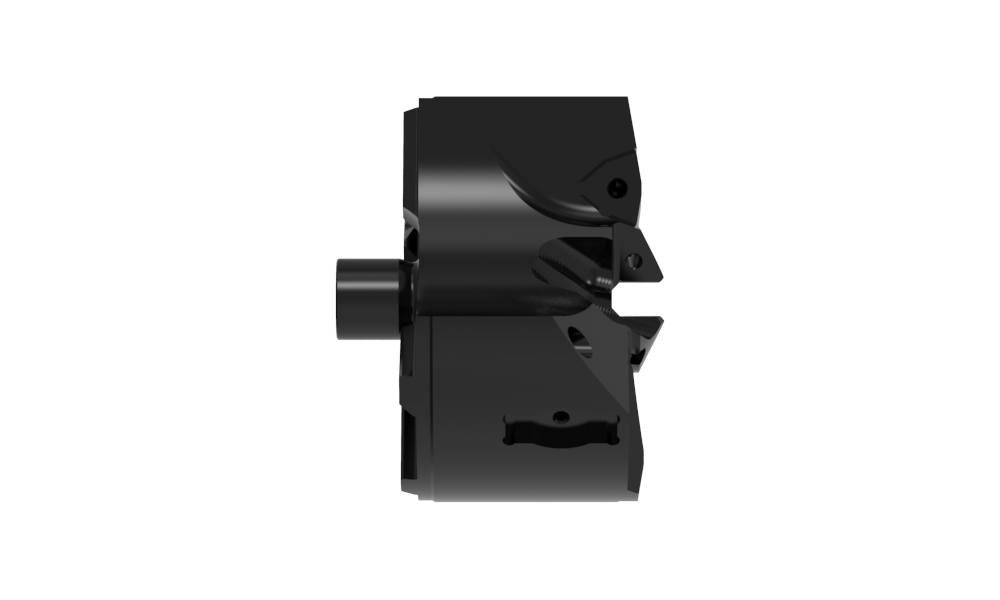

Front

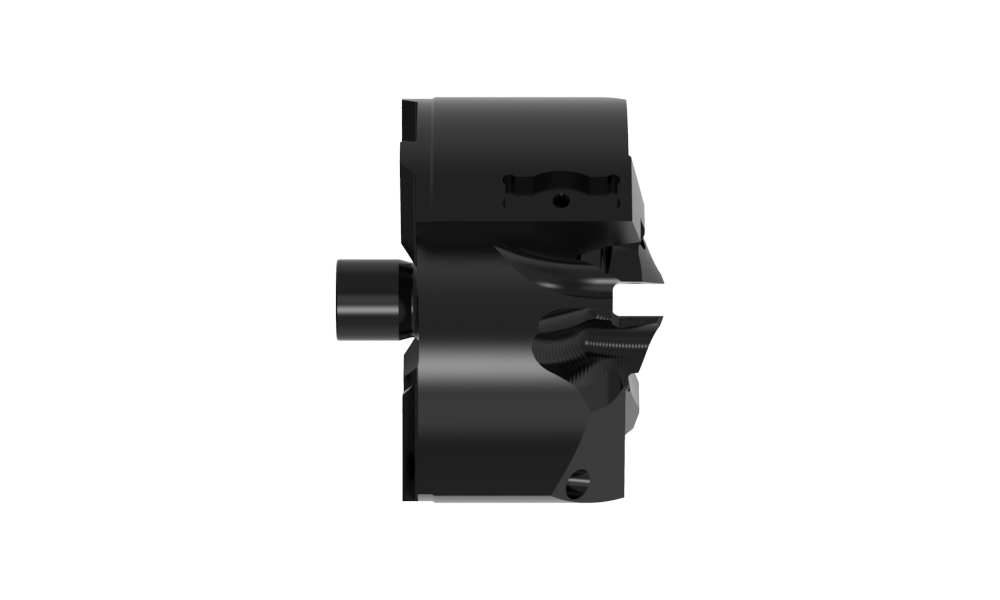

Side

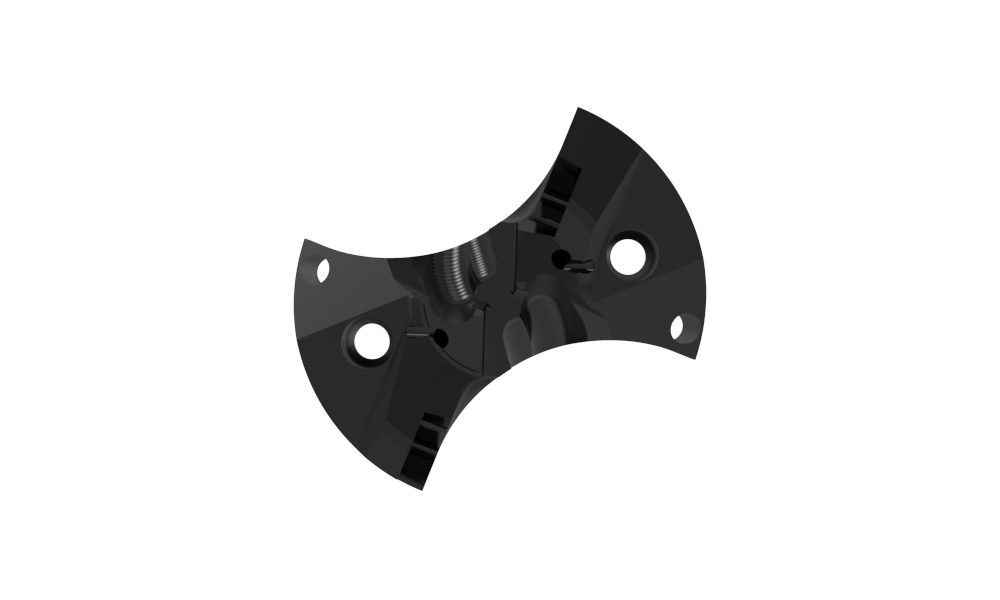

Top
Product Specifications
Series 95
Diameter mm 98.00
Diameter inch 3.8583
Pilot Head Type GEN3SYS®
Pilot series 32
Pilot Diameter mm 34.93
Pilot Diameter inch 1.3752
Pilot Diameter Fractional Equivalent 1-3/8"
Pilot length inch 0.344
Pilot length mm 0.3
Style Single Effective
IC Size inch 9/16
Wear Pad Yes
Type of Product Indexable Drill Head
Product Application Large Diameter Drilling
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 75014-IP20-1 (Qty0)
Replacement IC Insert Screw
SCREW (1)TORX PLUS M5X 0,8-4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 78027-IP30-1 (Qty0)
Replacement Mounting Screw
SCREW (1)TORX PLUS M8X 1.25-6G
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
Insert Screw Driver
DRIVER, TORX PLUS HAND IP-15
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
IC Insert Screw Driver
DRIVER, TORX PLUS HAND IP-20

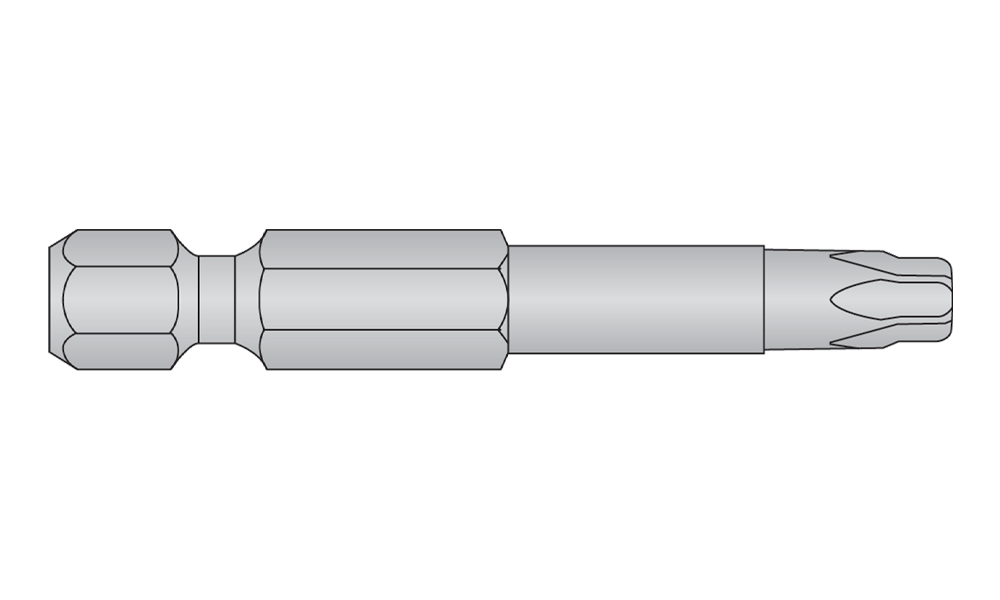

Accessories\Torx Drivers\Torx Driver Bit\TORX-DRIVER-BIT.png 8IP-30B (Qty0)
Mounting Screw Driver
BIT, REPLACEMENT TORX PLUS
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.7
Weight in kg (each) 1.23
Category Stocked
