W3808H-CV40
APX™ Replaceable Drill Body: 1.4959" - 1.7320" , 8xD, CAT40 Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information

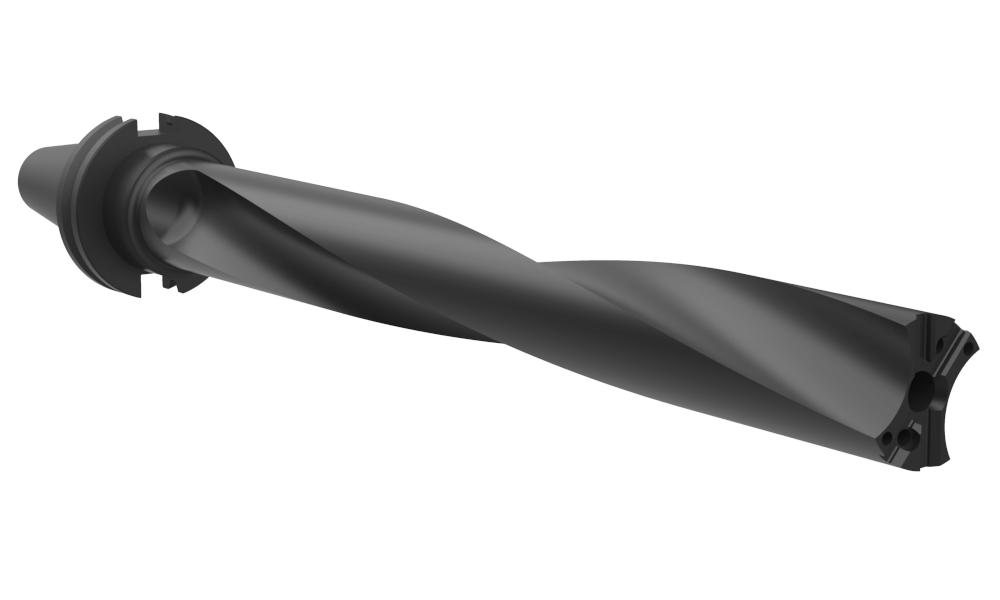

Default Image
Angle

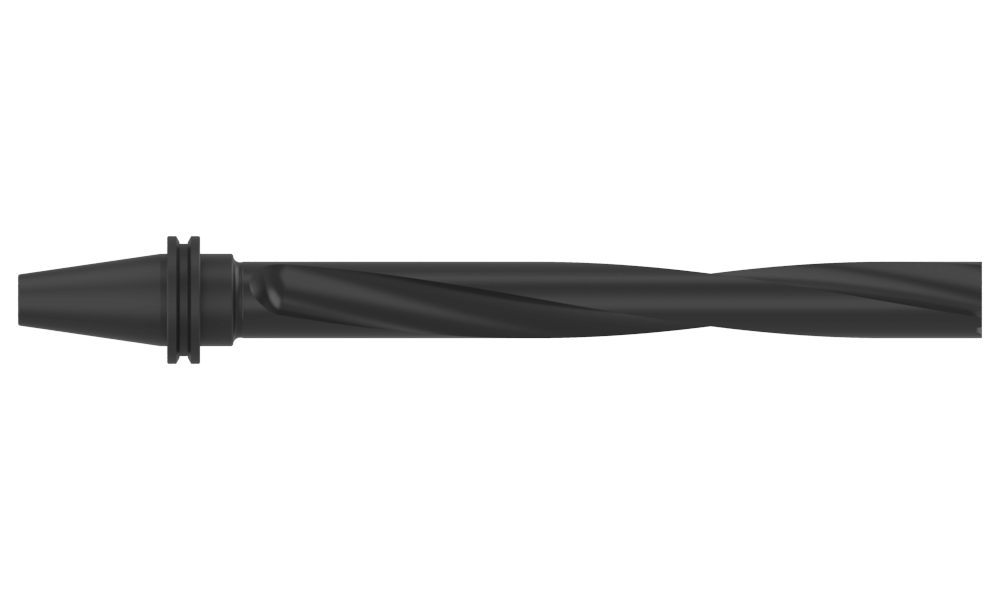

Front

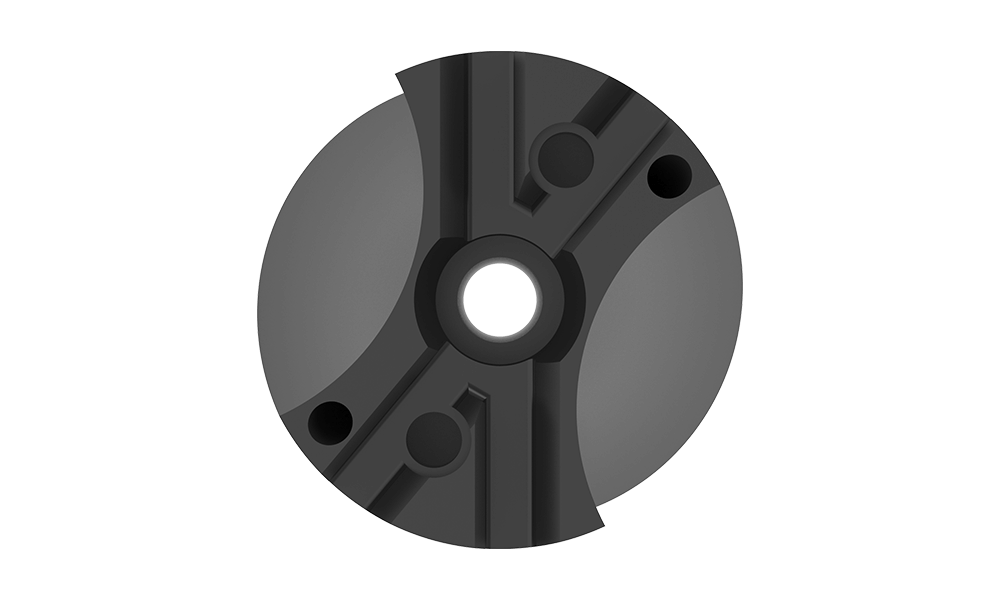

Top
Product Specifications
Series 38
Minimum diameter inch 1.4959
Maximum diameter inch 1.7320
Length Type 8xD
Flute Type Helical
Gage length inch 16.965
Drill depth inch 14.539
Shank type CAT40
Deep Hole Guidelines Yes
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 6.47
Weight in kg (each) 2.94
Category Stocked
