W4403H-40FM
APX™ Replaceable Drill Body: (44.00 mm- 50.99 mm), 3xD, Flanged Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

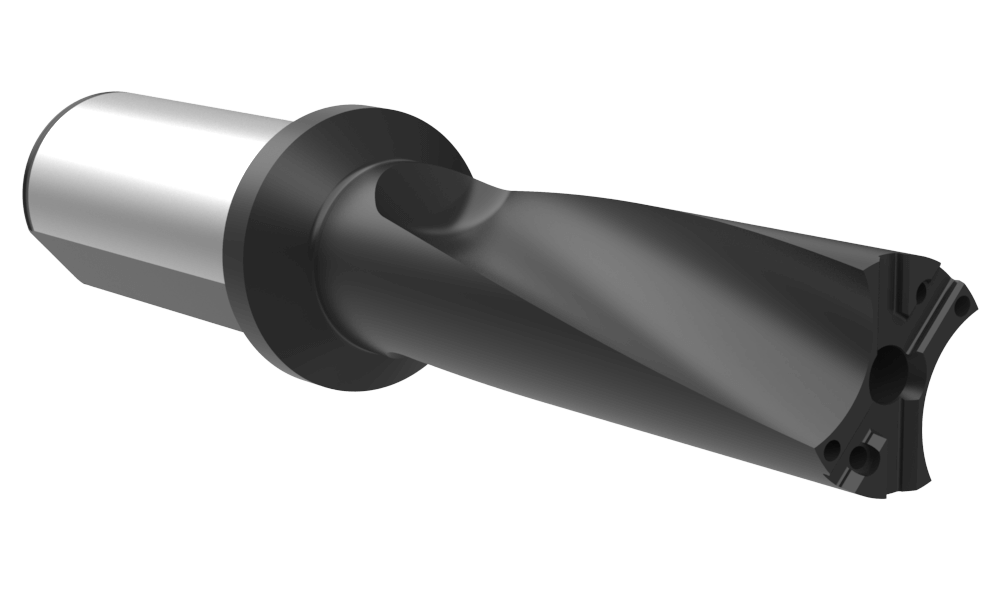

Angle

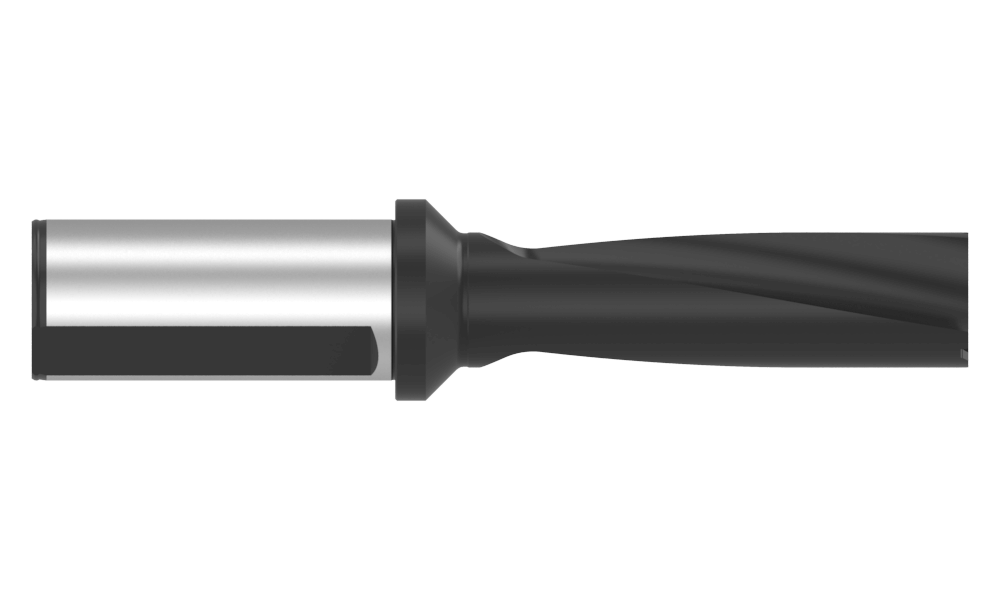

Front

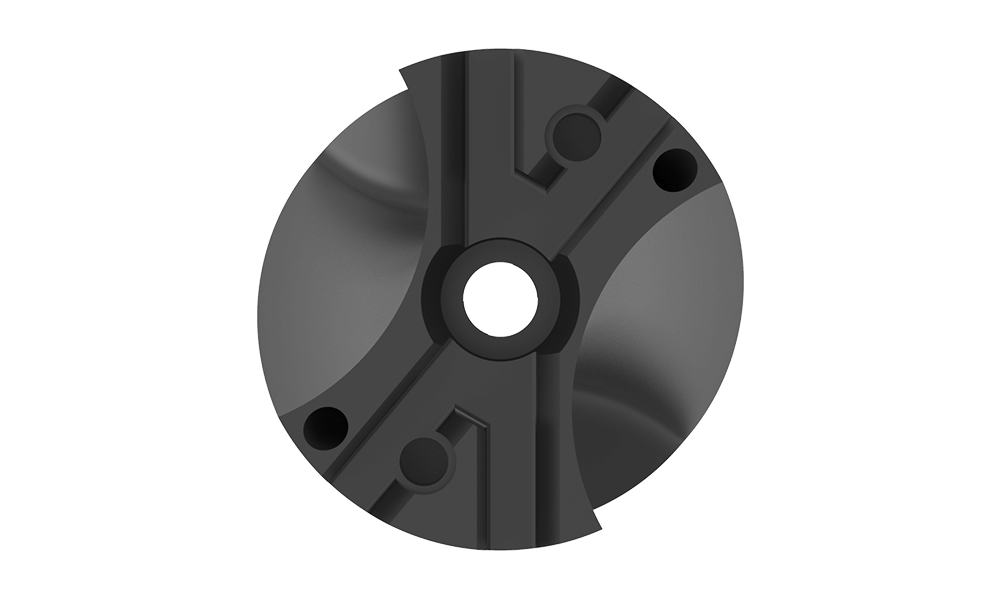

Top
Product Specifications
Series 44
Minimum diameter mm 44.00
Maximum diameter mm 50.99
Length Type 3xD
Flute Type Helical
Overall length mm 286.9
Tool Reference Length mm 216.9
Drill depth mm 169.7
Shank type Flanged
Shank diameter mm 40
Shank length mm 70.0
Pipe tap rear mm 1/4 BSPT
Deep Hole Guidelines No
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.43
Weight in kg (each) 2.01
Category Stocked
