320009
320, 6.398-8.071", MVS80-36

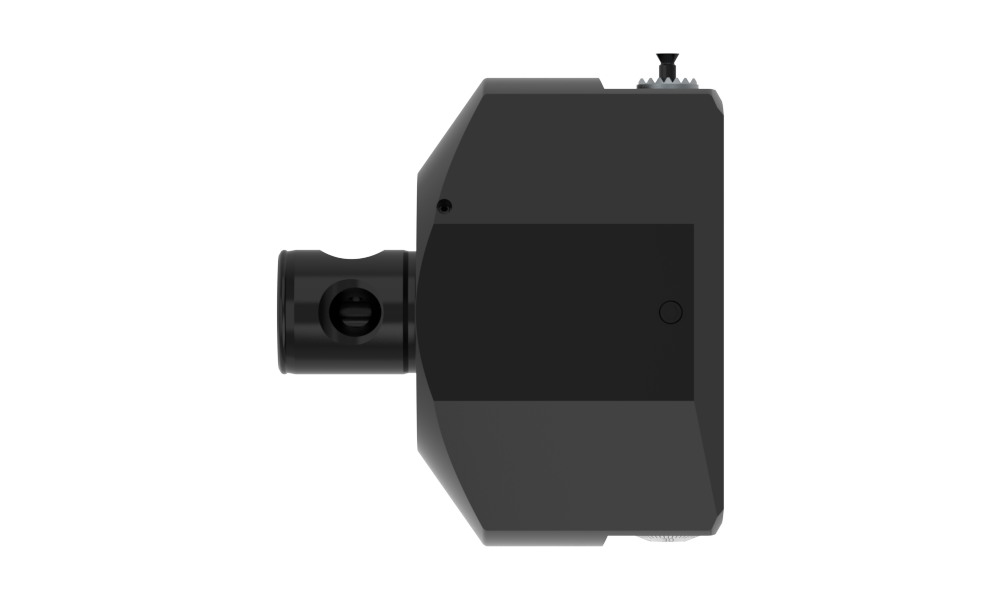

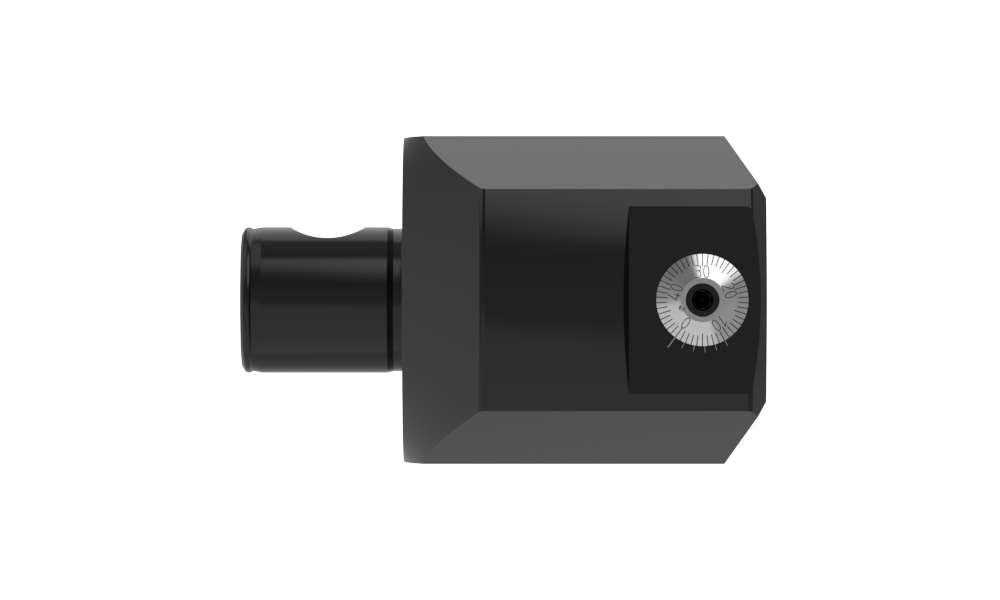

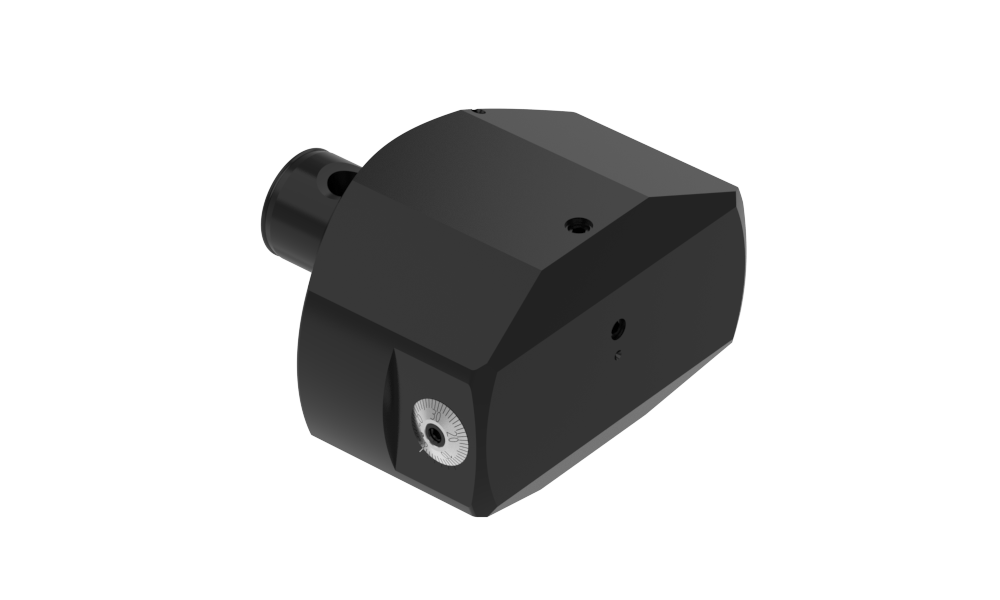

Wohlhaupter® Boring Head






Product Specifications
Type of ProductBoring Head
Minimum diameter mm162.5
Minimum diameter inch6.398
Maximum diameter mm205
Maximum diameter inch8.071
Working length mm90.00
Working length inch3.543
Body length mm88
Body length inch3.445
Body Diameter mm135
Body Diameter inch5.315
Male minor36
Male major80
Adjustment dial inch0.0001
Adjustment TypeVernier (analog)
Adjustment UnitImperial
Offset mm42.5
Offset inch1.673
MaterialAluminum
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)5.071
CategoryStocked
