320010

320, 0.787-0.965", MVS19-11

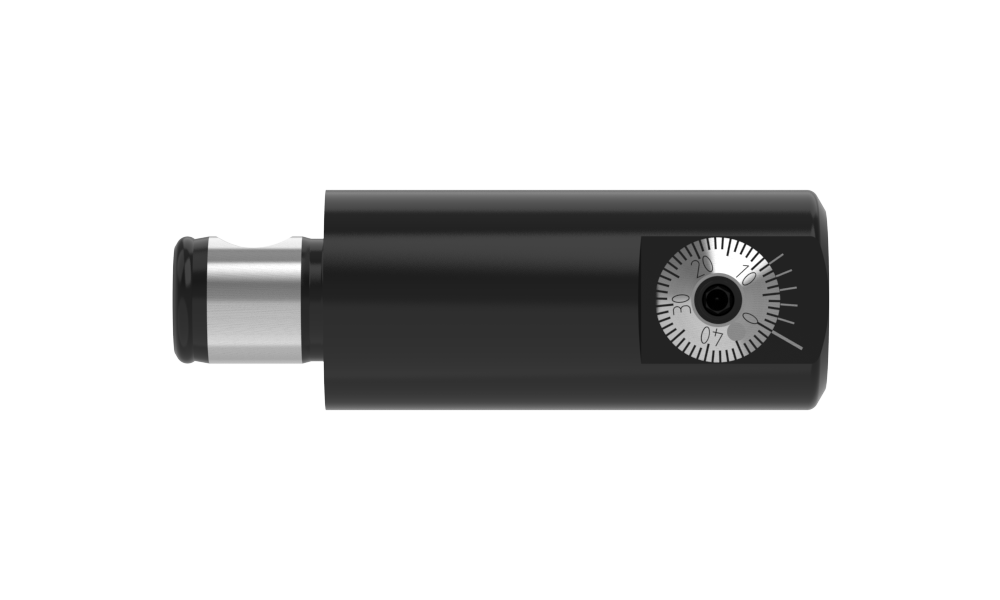

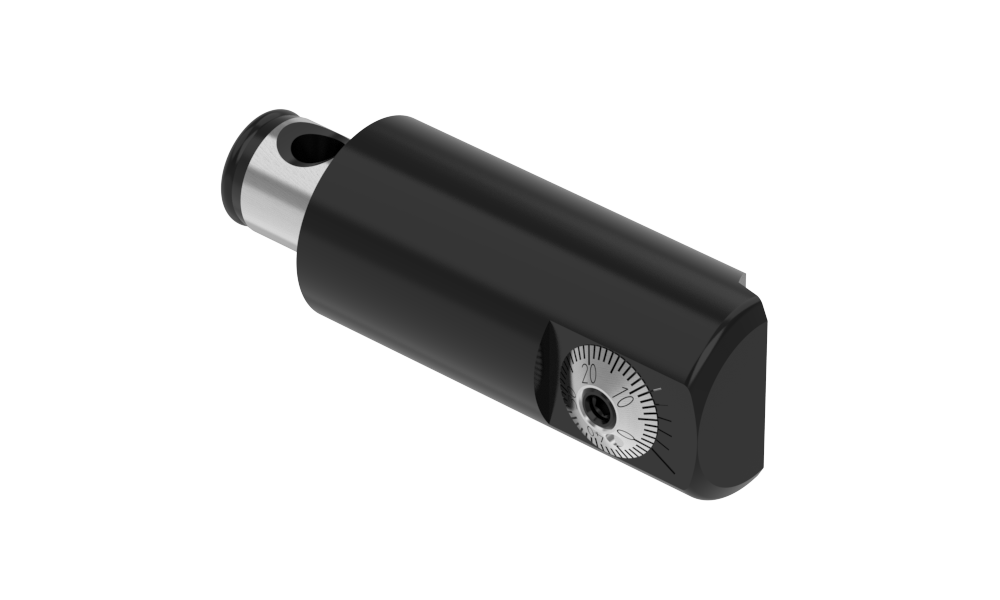

Wohlhaupter Boring Head

Product Specifications

Type of Product	Boring Head
Minimum diameter mm	20
Minimum diameter inch	0.787
Maximum diameter mm	24.5
Maximum diameter inch	0.965
Working length mm	46
Working length inch	1.811
Body length mm	43
Body length inch	1.693
Body Diameter mm	19
Body Diameter inch	0.748
Male minor	11
Male major	19
Inner Diameter mm	N/A
Inner Diameter inch	N/A
Adjustment dial mm	0.002
Adjustment dial inch	0.0001
Offset mm	4.5
Offset inch	0.177
Material	Steel

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.22
Category	Stocked
