J1926-060-20FM

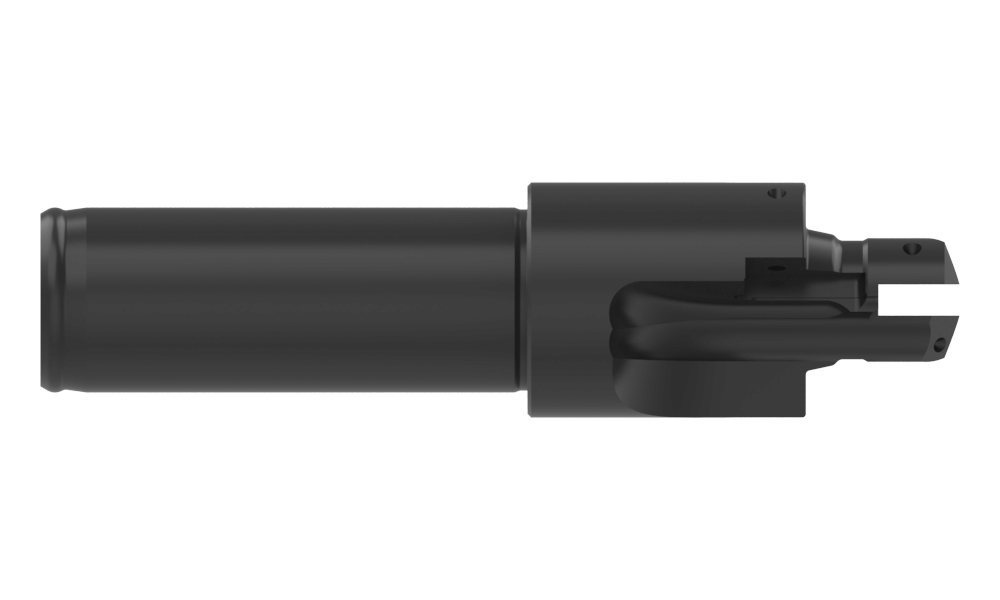

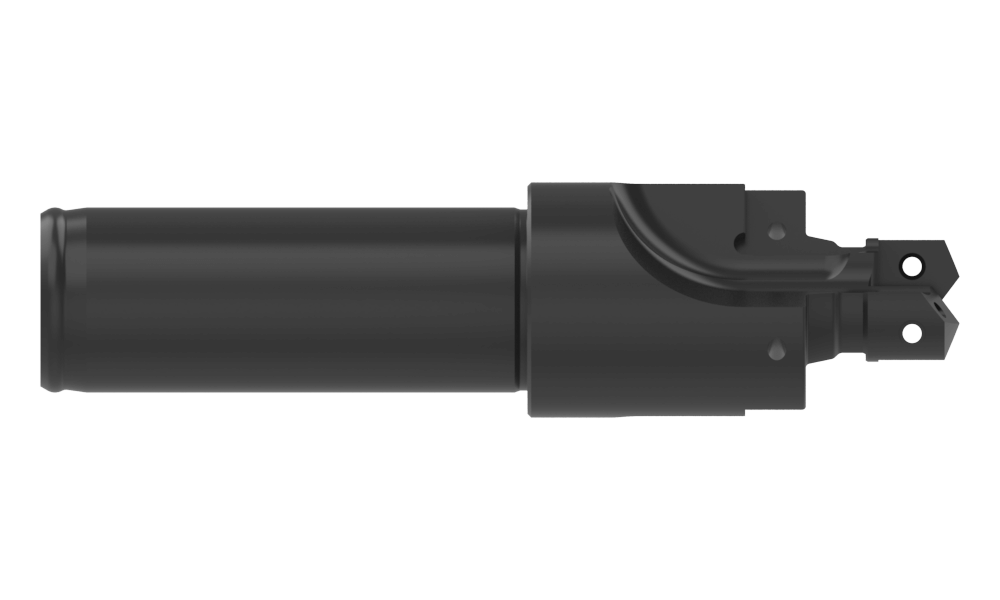

#0 -6 ACCUPORT HOLDER

AccuPort 432® Holder

Siehe zusätzliche technische Daten

Produktspezifikationen

Specification	SAE
Port Standard	J1926/1
Tube Size	-6
Series	0
Spotface diameter mm	25.13
Length Type	Standard
Flute Type	Straight
Overall length mm	86.4
Tool Reference Length mm	47.2
Body length mm	44.5
Step Length mm	15.5
Shank type	Cylindrical
Shank diameter mm	20
Shank length mm	1.650
Pipe tap rear mm	1/8 BSPT
Type of Product	Replaceable Port Form Holder
Product Application	General Purpose

Related Items

72556-IP8-1 (Menge: 0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H

8IP-8 (Menge: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8

Bestellinformationen

Packmenge	1
Mindestbestellmenge	1
Jeweiliges Gewicht in Pfund (lbs)	0,39
Kategorie	lagernd
