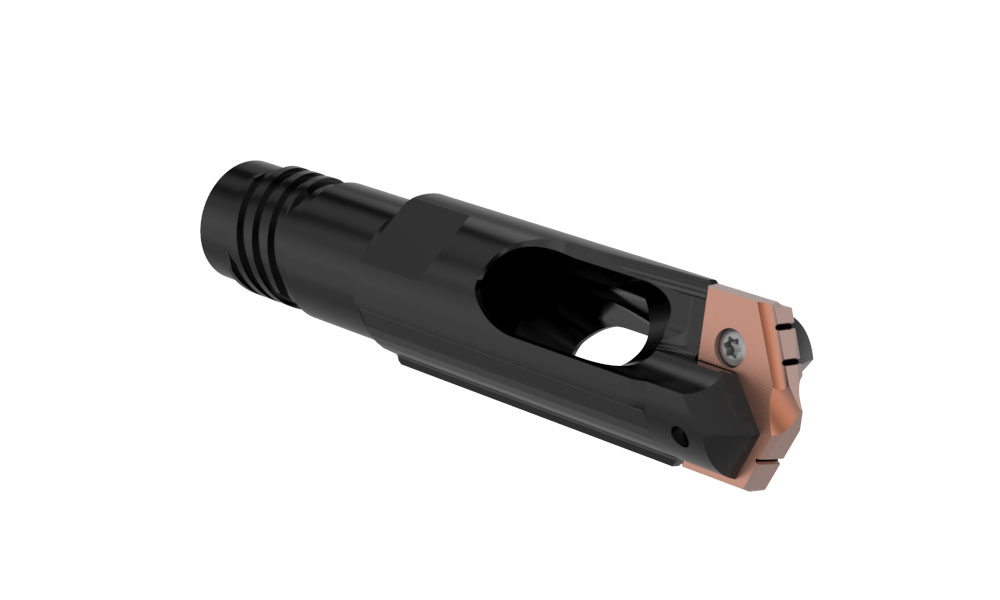

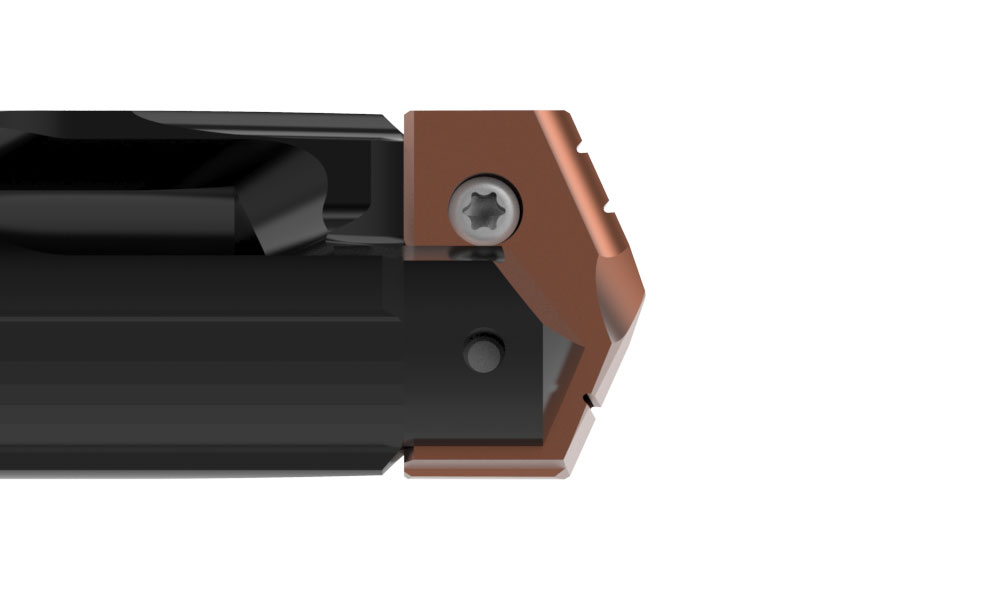

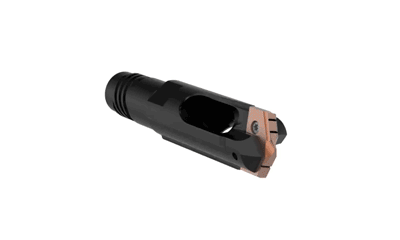

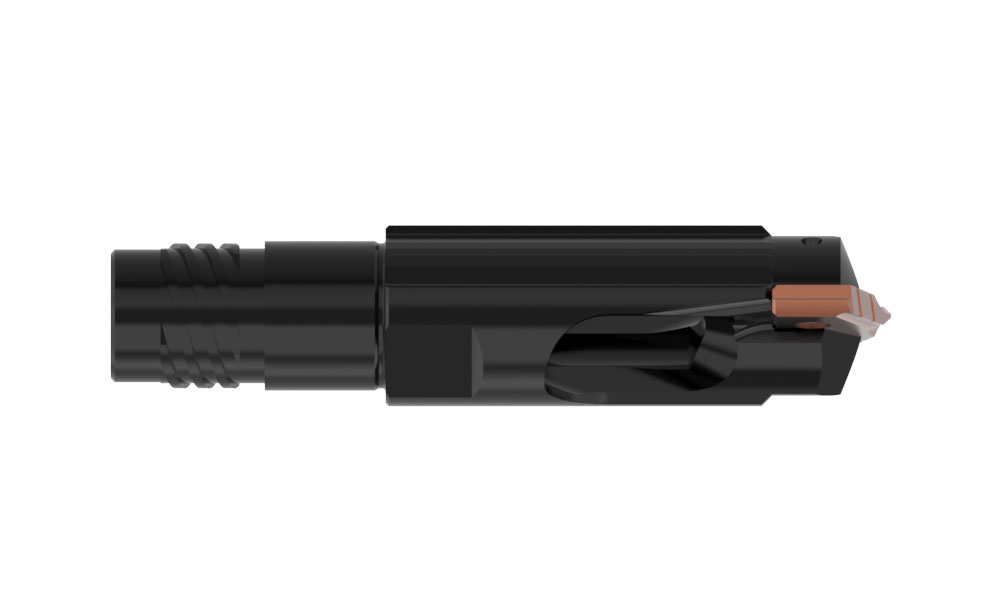

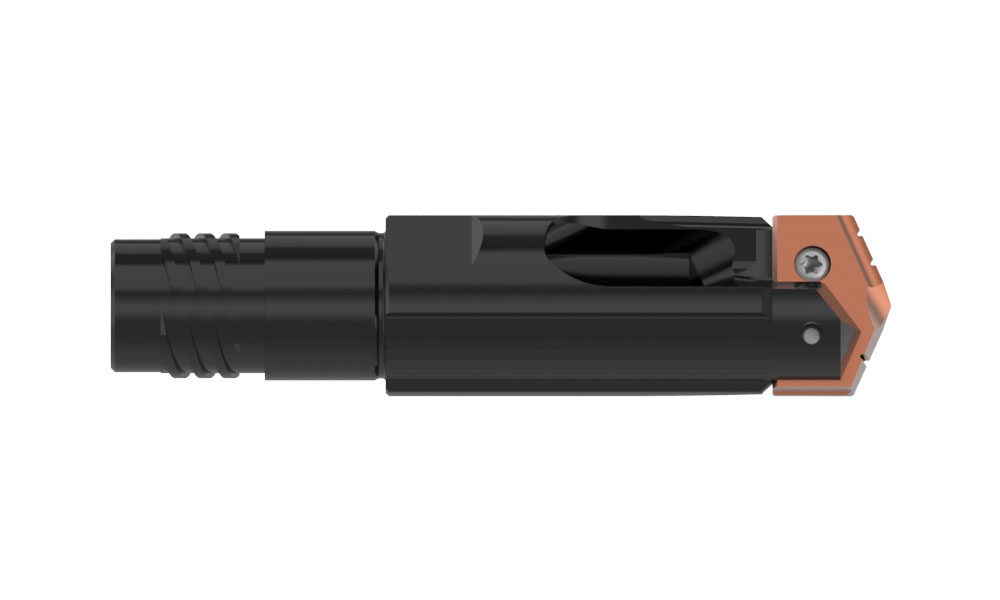

BT-A Drill (STS Deep Hole Drilling)    360 Icon
The BT-A Drill is compatible with standard BTA-STS (Boring Trepanning Association) Systems. Double effective cutting allows up to 2x penetration rate over conventional BTA heads.
Advantages
  • Increased penetration rates

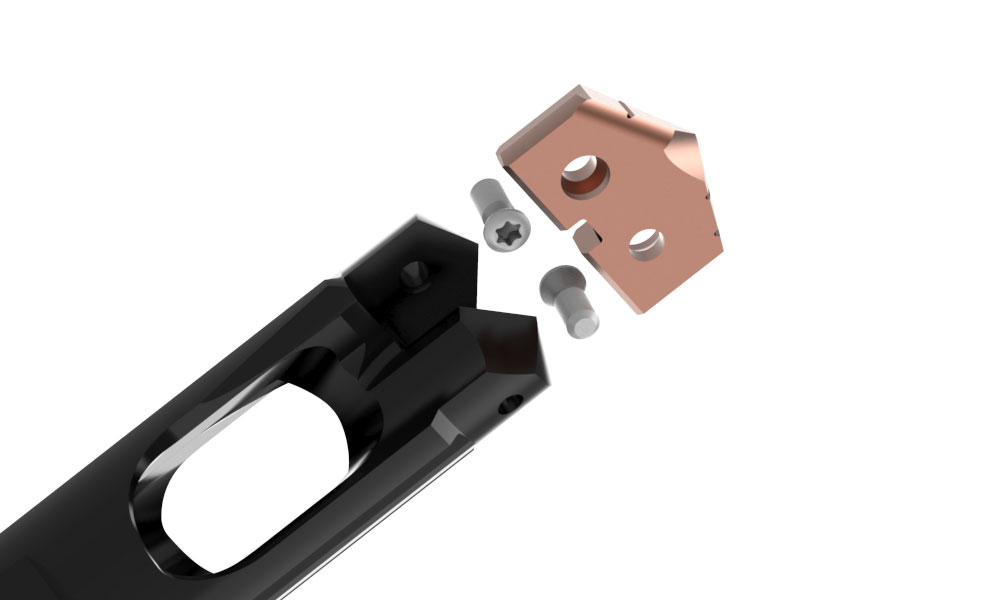

  • Replaceable cutting edges
  • Lower cost-per-hole
  • Improved performance in cross holes
Features
  • Double effective cutting
  • Laser clad bearing area
  • Uses standard BTA-STS tube connection
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Product Specifications
Product Type
Replaceable Tip BTA Drill
Diameter Range
0.5100" - 1.8820" (12.95mm - 47.80mm)
Coating
AM200®, TiAlN
Insert Material
C1
Holder
BT-A Holder
Tube Options
Standard STS Tubes Available
Coolant
Through Coolant

Product Nomenclature

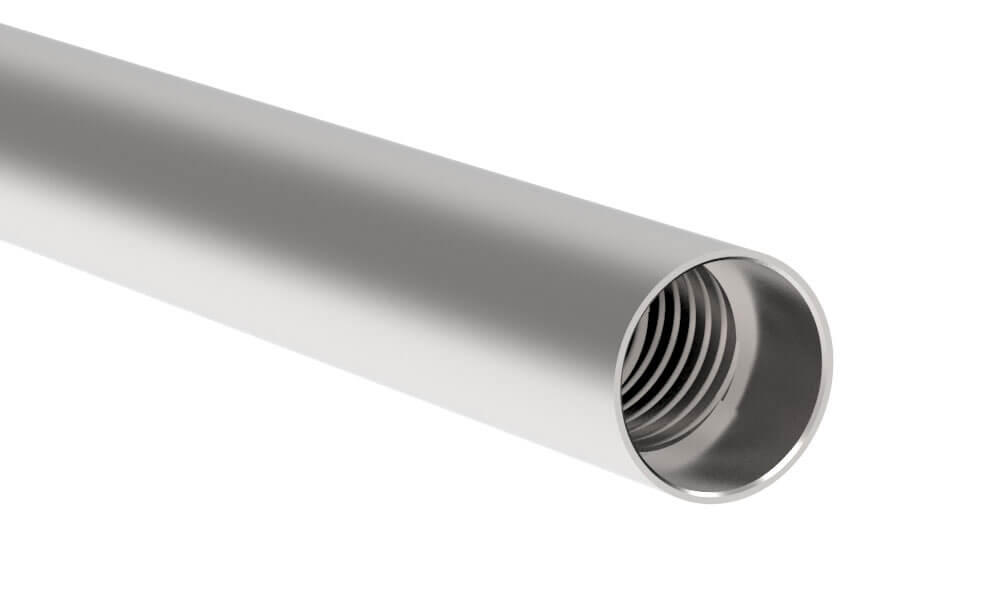

BT- A Drill Tubes
BT-A Drill T-A Insert Series
x
BTAT = BT-A Tube
BTAT
-
Tube Size
x
794
795
796
797
798
799
800
801
802
803
804
805

806
807
808
809
810
811
804
-
Length
x
63 = Standard
102 = Long
63
BT-A Holder
BT-A Drill T-A Insert Series
x
BTA0 = 0 series T-A insert
BTA1 = 1 series T-A insert
BTA2 = 2 series T-A insert
BTA3 = 3 series T-A insert
BTA2
-
Tube Size
x
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
804
-
Diameter
x
0.7344 = Inch
25.00 = Metric
1.1299
