Opening Drill®    360 Icon

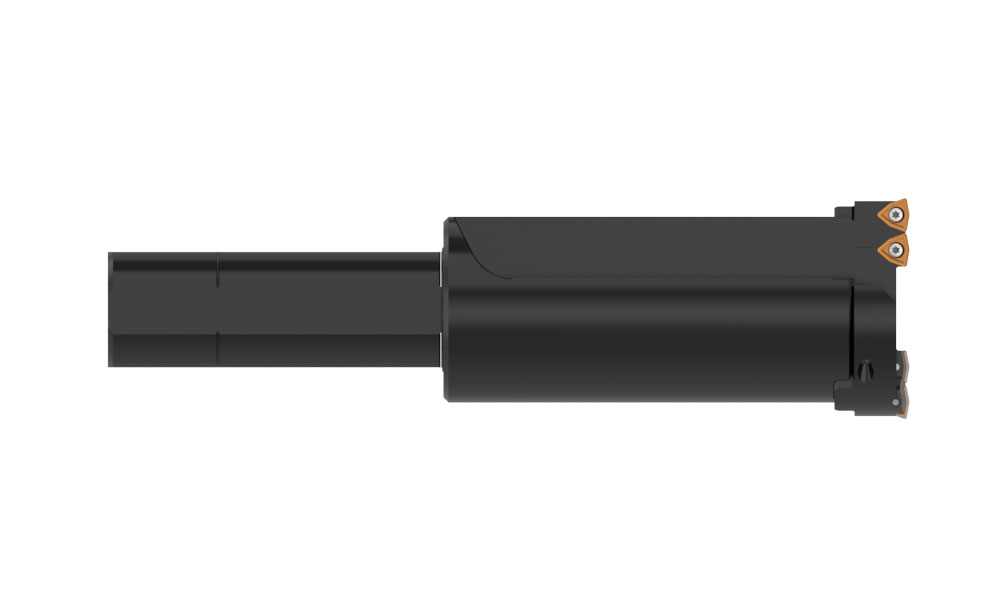

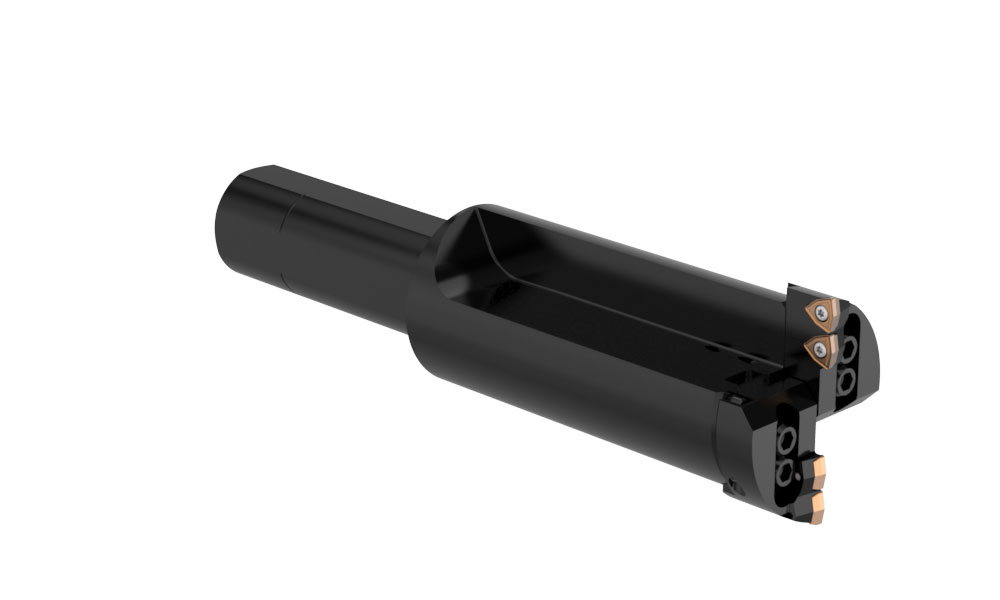

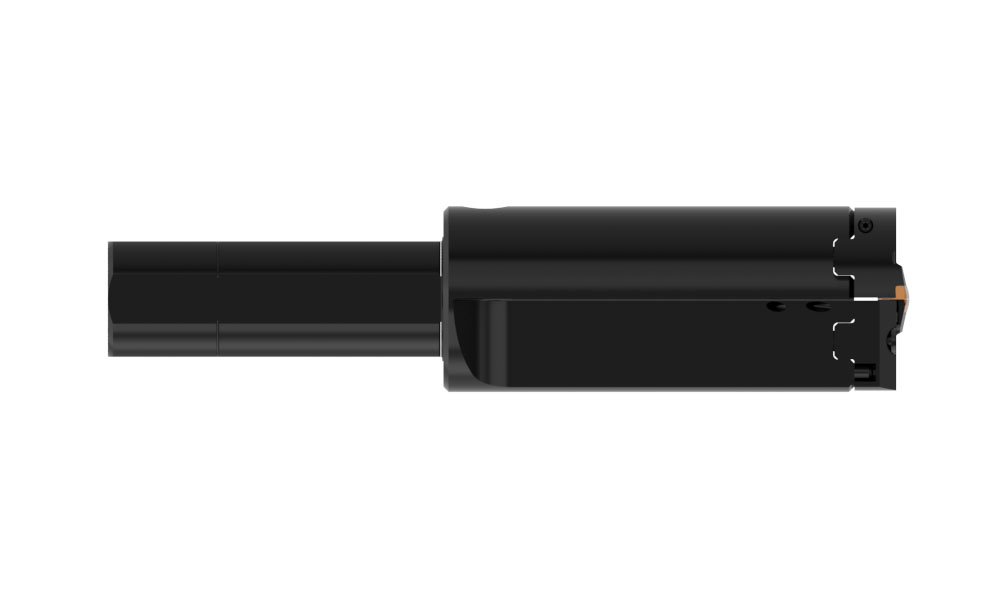

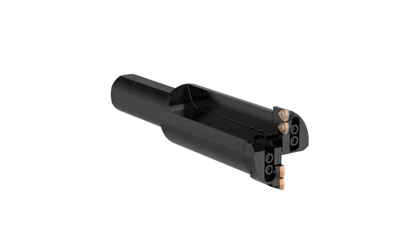

The Opening Drill® is an extremely effective tool designed to enlarge existing holes, eliminating the need for multiple boring passes. Adjustable cartridges cover a wide range of diameters reducing inventory cost.
Advantages
  • Opens an existing hole in a single operation allowing for large amounts of material removal while ignoring core shifts up to 1/8" (3.175 mm)
  • Ideal on low horsepower machines while maintaining high penetration rates
  • Multi-insert design reduces chip size for easy chip evacuation
  • Can be used in rough boring operations
  • Suitable for use in lathes and mills
  • Diameter adjustment reduces inventory and cost
Features

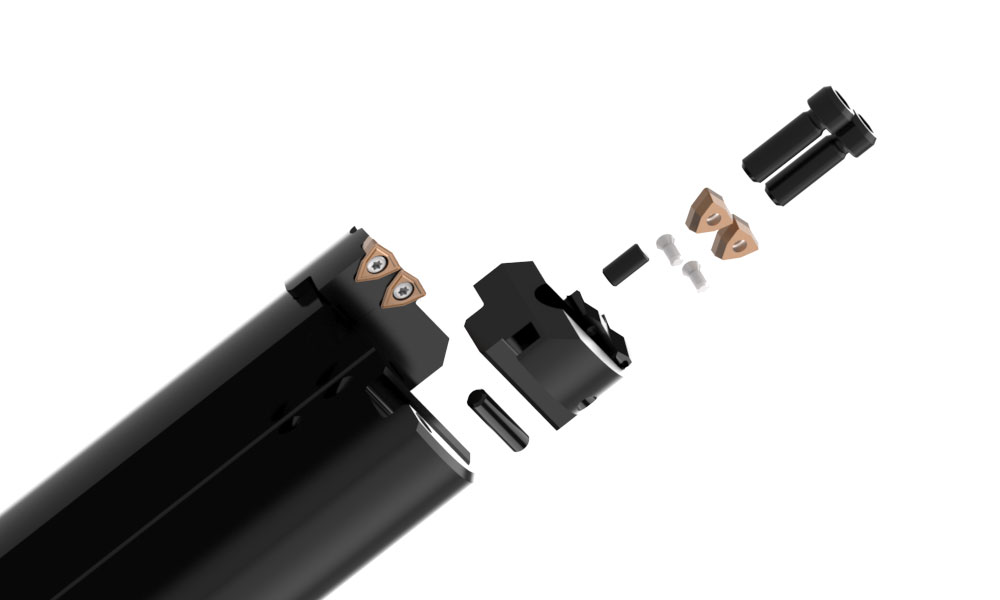

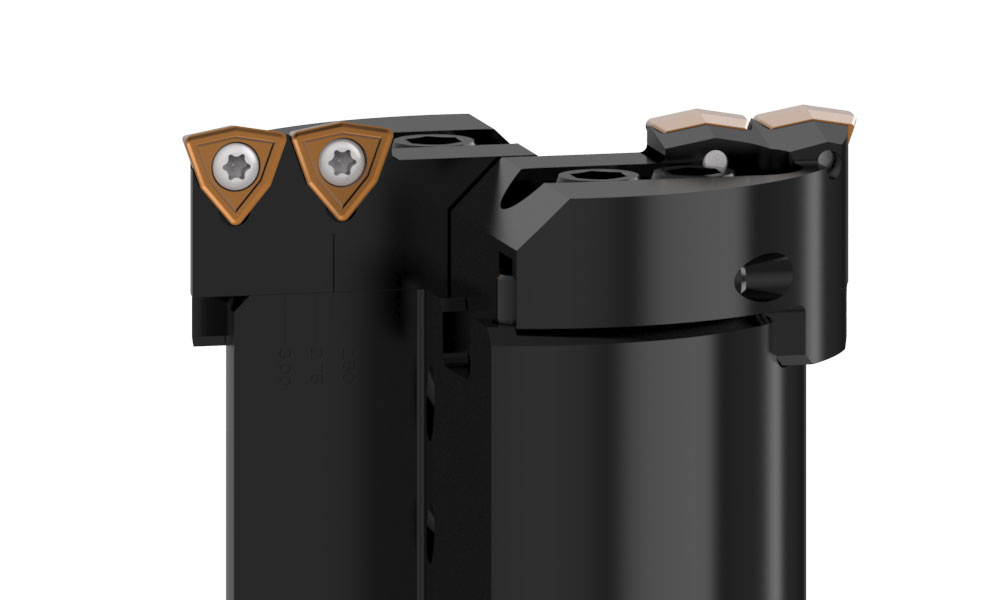

  • Replaceable and adjustable cartridges
  • Indexable inserts available in AM300® and AM200® coatings as well as high rake and general purpose geometries
  • Coolant through
  • Integral shanks available for increased rigidity
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Product Specifications
Product Type
Indexable Drill System
Diameter Range
2.000" - 5.620" (50.8 mm - 142.8 mm)
Coating
AM300®, AM200®, TiN
Insert Material
C5 (P35), C1 (K35), C2 (K25)
Holder
Revolution Drill Body
Flute Options
Straight
Shank Options
Straight, CV40, CV50, BT40, BT50, HSK63, HSK100, ABS63, DV50
Drill Depth
Short, Long
Coolant
Coolant Through

Product Nomenclature
Opening Drill Holders
Series
x
OP1 = 2.00" - 2.50" (50.8mm - 63.5mm)
OP2 = 2.50" - 3.00" (63.5mm - 76.2mm)
OP3 = 3.00" - 4.12" (76.2mm - 104.7mm)
OP4 = 4.12" - 5.62" (104.7mm - 142.8mm)
OP1
-
Length
x
1S = Short
1L = Long
1S
-
Shank Type
x
SS1.5 = 1-1/2 Ø straight
SS2.5 = 2-1/2 Ø straight
40M = 40mm straight
50M = 50mm straight
CV40 = CAT40
CV50 = CAT50
BT40 = BT40
BT50 = BT50
HSK63 = HSK 63A/C
HSK100 = HSK 100A/C
ABS63 = ABS63
DV50 = DIN50
SS1.5
Opening Drill Inserts
- Also used with Revolution Drill
Compatible with:
x
Opening Drill
Revolution Drill
OP
-
IC Type
x
05 = 5/16"
05
Thickness
x
T3 = 5/32"
T3
Radius
x
08 = 1/32"
08
-
Carbide Grade
x
Blank = C5 (P35)
1 = C1 (K35)
2 = C2 (K25)
1
Coating
x
P = AM300®
H = AM200®
T = TiN
A = TiAlN
N = TiCN
U = Uncoated
H
Geometry
x
Blank = General Purpose
HR = High Rake
HR
Large Diameter Drilling
Literature Thumbnail

Available Online Only

Recommended Cutting Data
Revolution Drill® and Opening Drill®

Additional Resources and Guidelines

Setup / Assembly Information

How to set up an Opening Drill® at the spindle

How to set up an Opening Drill® with a presetter
