450026

F211 FROM 6MM X=22MM 92°

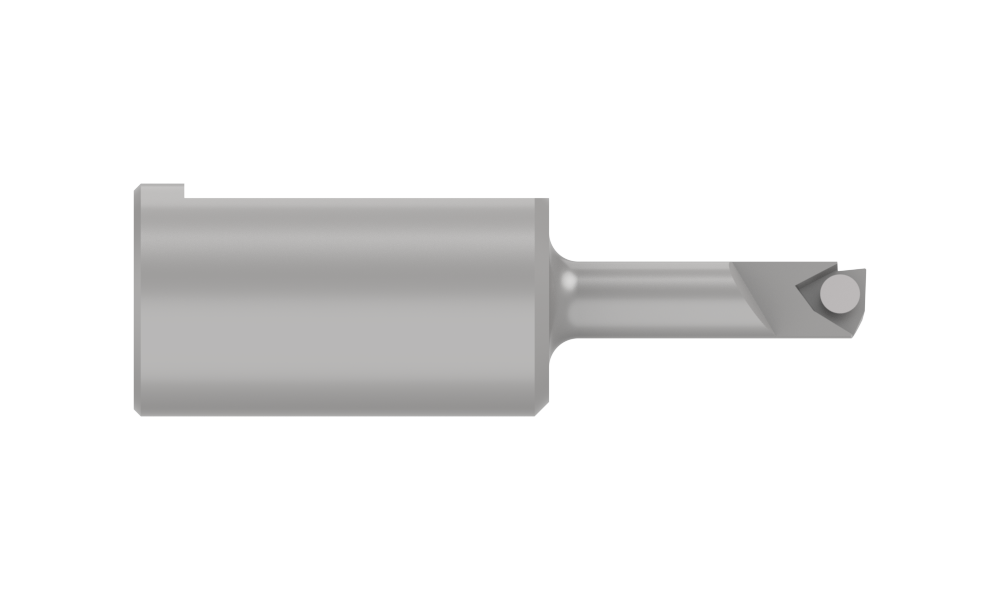

Wohlhaupter® Boring Bar

Product Specifications

Type of Product	Indexable Boring Bar
Material	Steel
Form Type	Form 211
IC Size mm	3.97
IC Size inch	0.156
Insert thickness mm	1.59
Insert thickness inch	0.063
Max bore depth mm	20
Max bore depth inch	0.787
Minimum diameter mm	6
Minimum diameter inch	0.236
Number of Flats	1
Overall length mm	50.5
Overall length inch	1.988
Shank diameter mm	16

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.882
Category	Stocked
