450027

F101 FROM 10MM X=35MM 92°

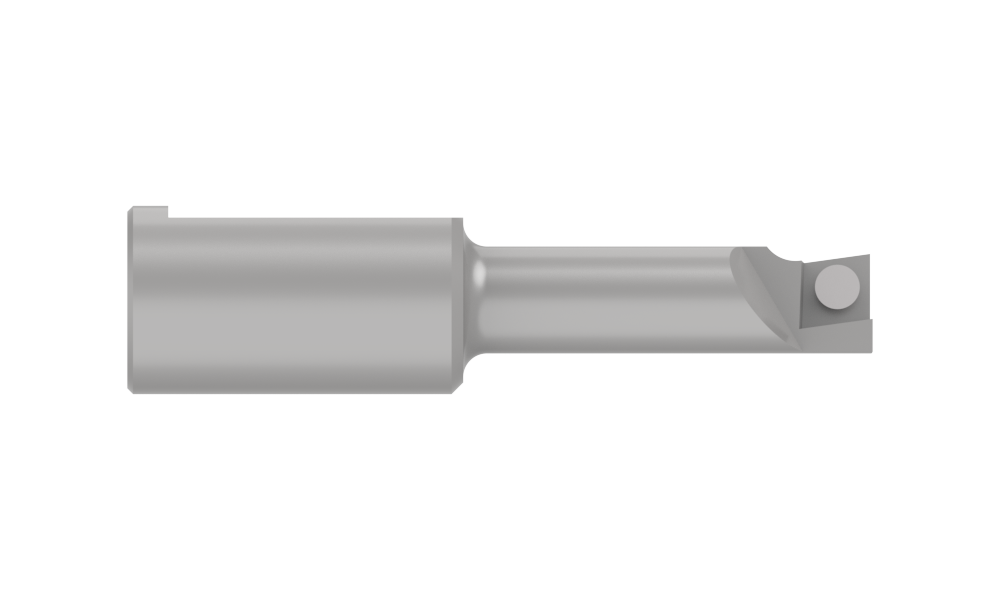

Wohlhaupter® Boring Bar

Product Specifications

Type of Product	Indexable Boring Bar
Material	Steel
Form Type	Form 101
IC Size mm	6.35
IC Size inch	0.25
Insert thickness mm	2.38
Insert thickness inch	0.094
Max bore depth mm	33
Max bore depth inch	1.299
Minimum diameter mm	10
Minimum diameter inch	0.394
Number of Flats	1
Overall length mm	63.5
Overall length inch	2.5
Shank diameter mm	16

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.13
Category	Stocked
