450028

F101 FROM 16MM X=60MM 92°

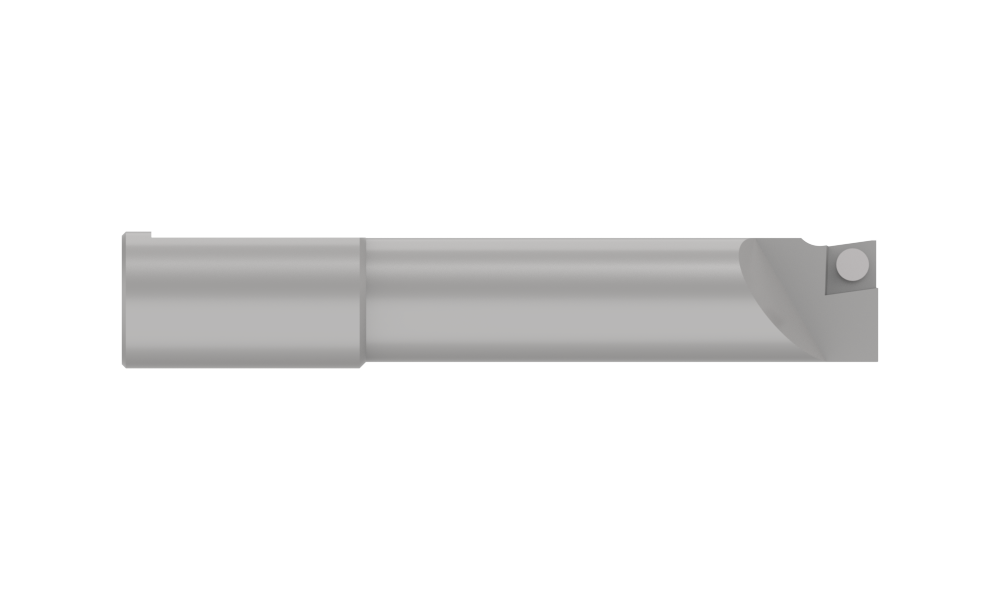

Wohlhaupter® Boring Bar

Product Specifications

Type of Product	Indexable Boring Bar
Material	Steel
Form Type	Form 101
IC Size mm	6.35
IC Size inch	0.25
Insert thickness mm	2.38
Insert thickness inch	0.094
Max bore depth mm	58
Max bore depth inch	2.283
Minimum diameter mm	16
Minimum diameter inch	0.63
Number of Flats	1
Overall length mm	88.5
Overall length inch	3.484
Shank diameter mm	16

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.22
Category	Stocked
