HTA2B05-32FM
2-B TA PRO HLD 5XD 32MM FL

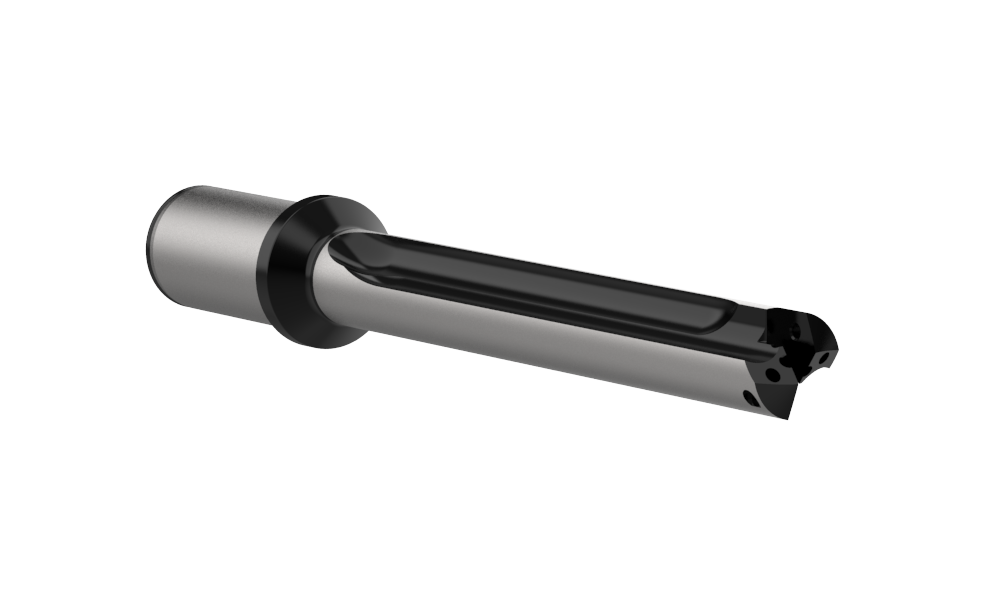

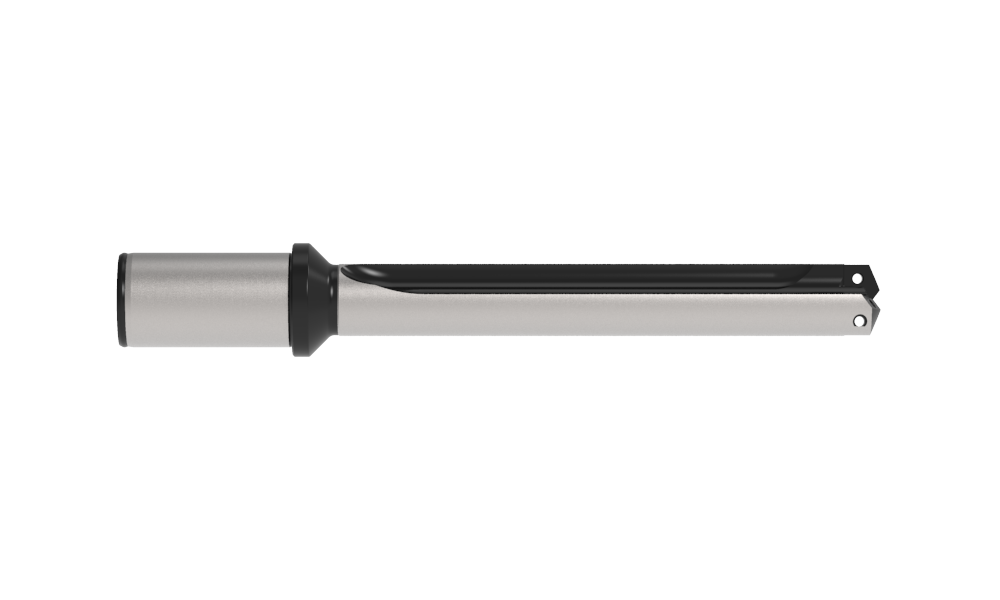

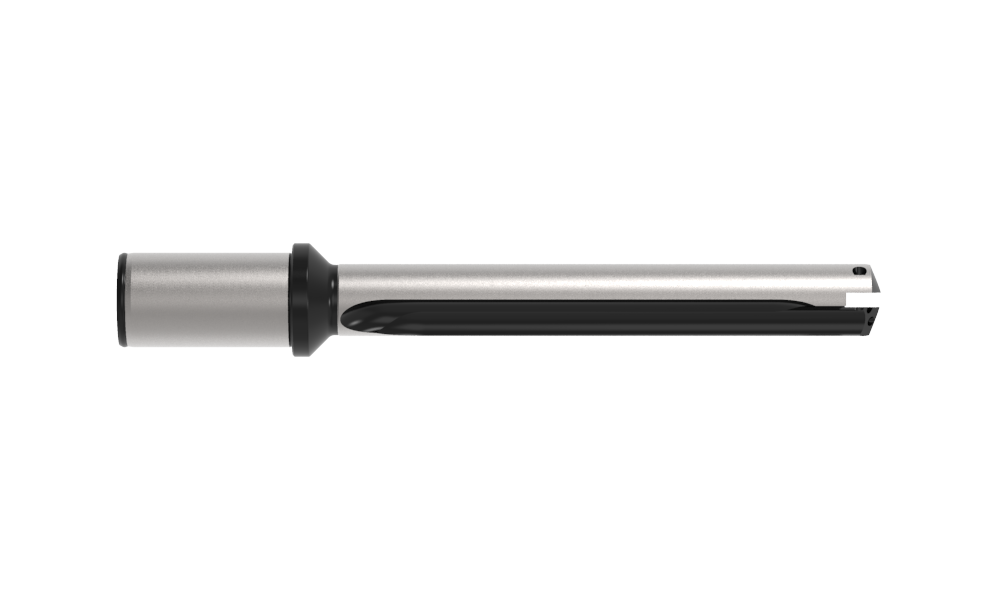

T-A Pro® Holder





See Additional Technical Information

Product Specifications
Series2
Sub-SeriesB
Minimum diameter mm25.40
Maximum diameter mm35.04
Length Type5xD
Flute TypeStraight
Overall length mm256.9
Tool Reference Length mm200.5
Body length mm196.9
Drill depth mm148.7
Shank typeFlanged
Shank diameter mm32
Shank length mm60.0
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationHigh Performance


Related Items
7495-IP15-1     (Qty: 0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
8IP-15     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)2.02
CategoryStocked
