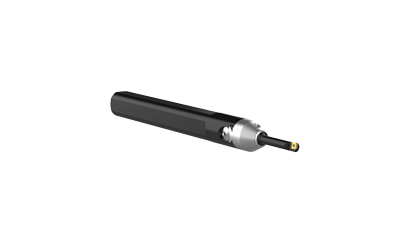

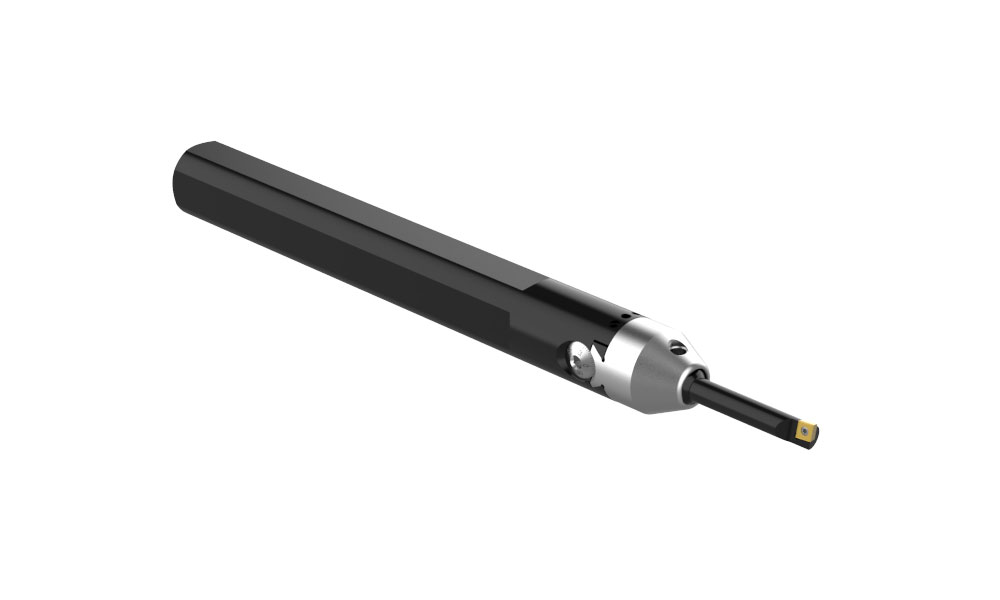

CBS Finish Boring Tool
The CBS finish boring tool is the ideal solution for small diameter bores with long overhangs. The cylindrical shank allows for the boring tool to be dropped into existing end mill (side-lock) holders.
Advantages
  • Ease the stress of reaching past fixturing
  • Stocked standard carbide and steel boring bars

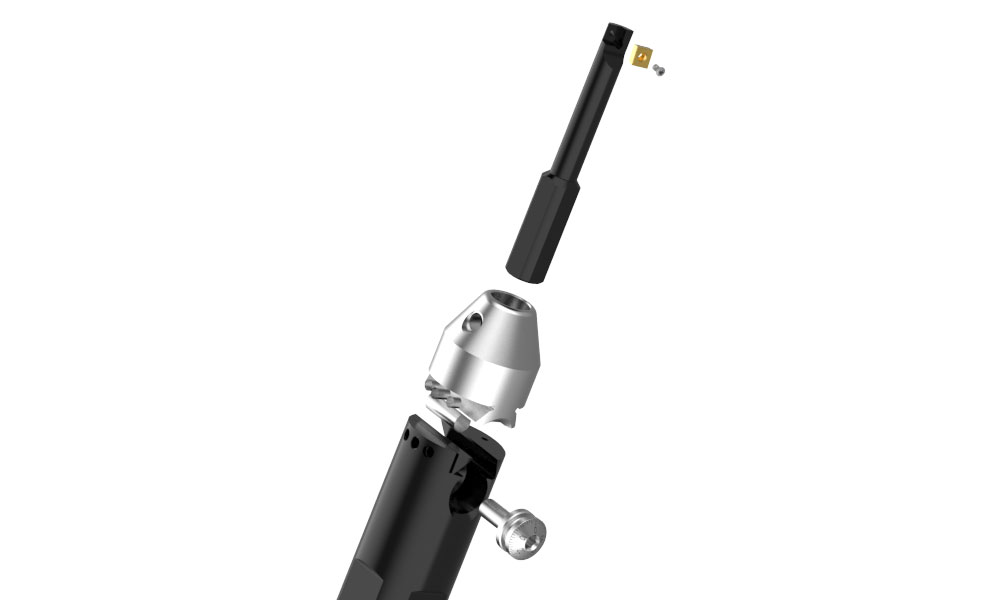

  • Boring head slides using a dovetail connection for secure clamping

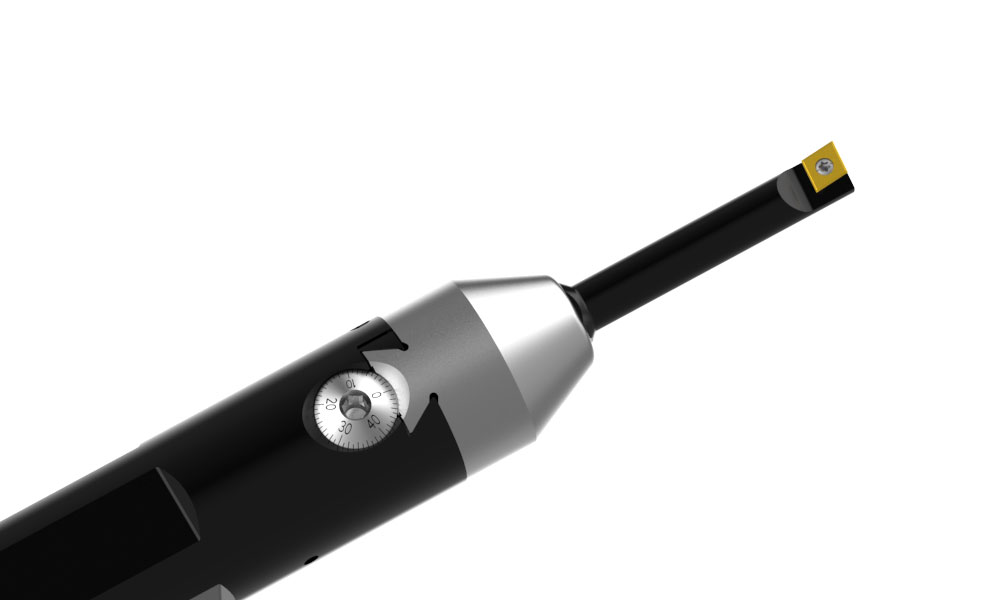

  • Direct dial readout
Features
  • Diameter range: 0.050” – 0.750” (1.27mm – 19.05mm)
  • Adjustment of 0.001” or 0.20mm on diameter

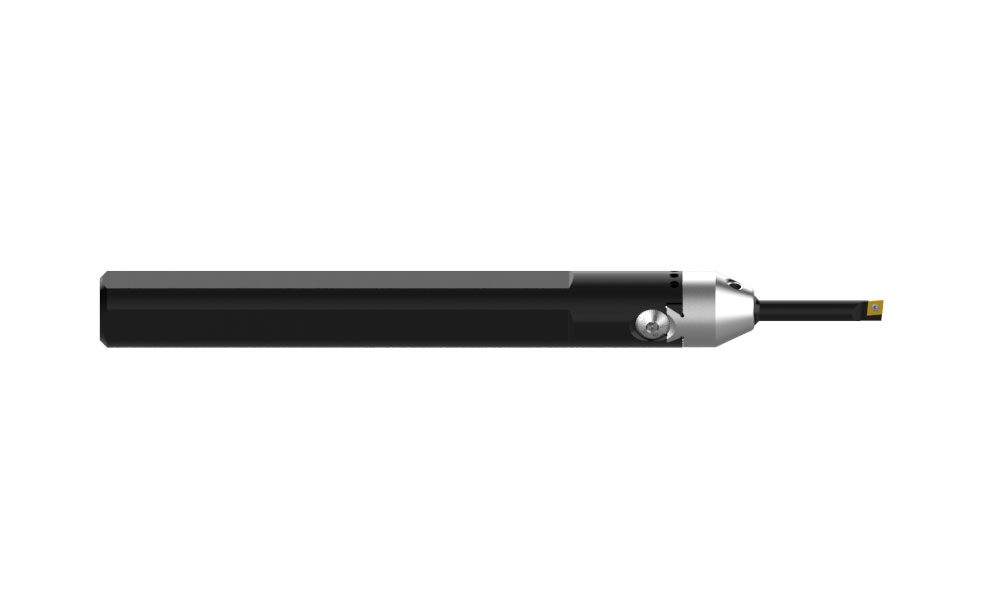

  • Cylindrical shank
  • Max spindle speed: 3,500 RPM at 0 radial offset
Recommended Materials
Materials
x
Steel
High Temp Alloy
Stainless Steel
Hardened Steel
Cast Iron
Aluminum
Icon Reference




Recommended Industries
Industries
x
Medical
Renewable Energy/ Energy
Automotive
Aerospace
Firearms
Agriculture
Oil and Gas
Marine
General Production
Heavy Equipment
Hydraulics
Tool, Mold, and Die
Structural Steel Fabricator
Icon Reference



Technical Information

Criterion US
Boring Systems

Literature Order Number: AMPC-B2
