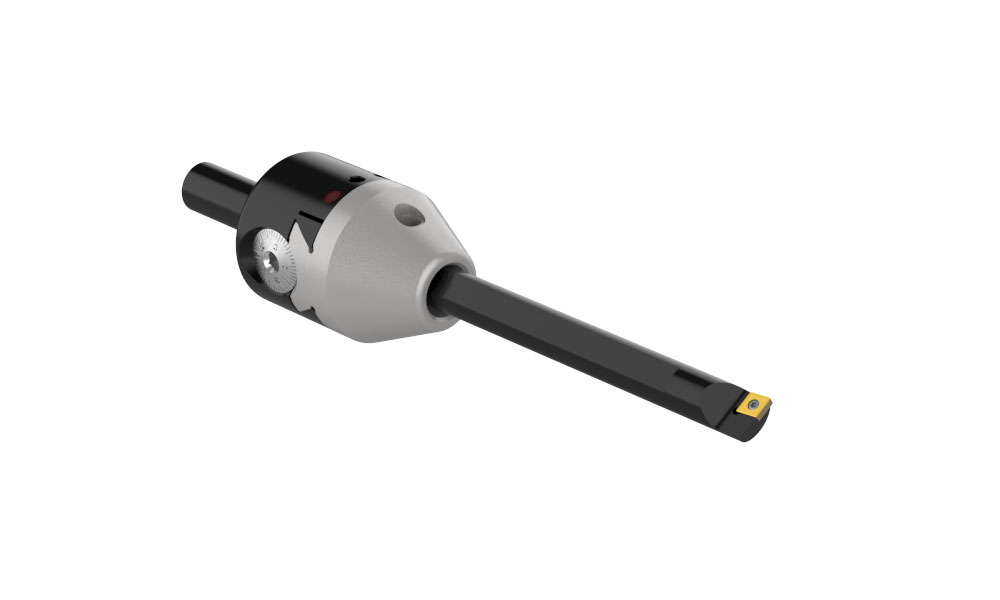

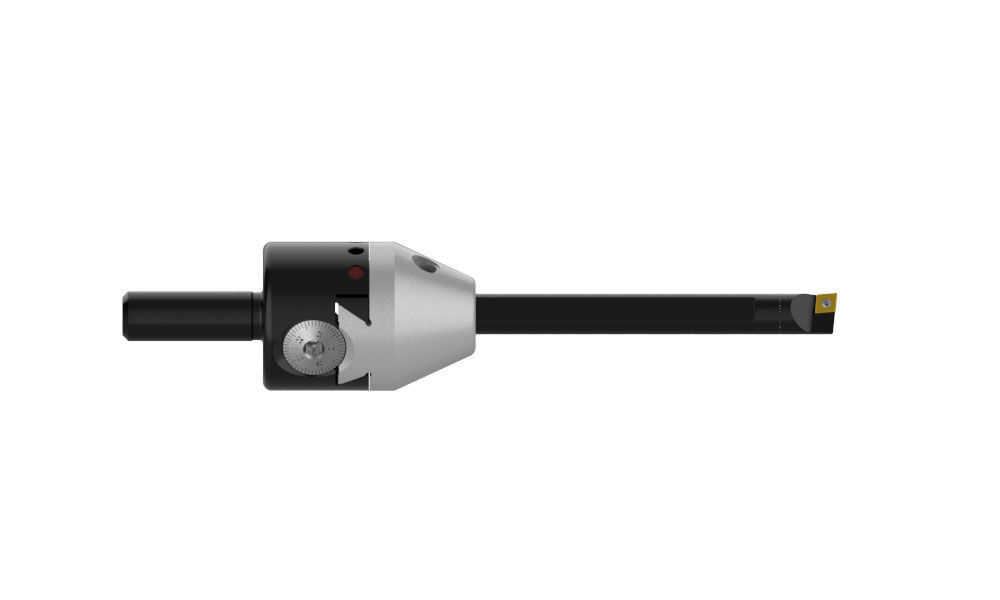

MBS Finish Boring Tool
The MBS finish boring tool is perfect for small diameter bores and high spindle speeds. The cylindrical shank allows for the boring tool to be dropped into your existing tool holders.
Advantages
  • Compact design great for live tooling
  • Stocked standard carbide, steel, and heavy metal boring bars

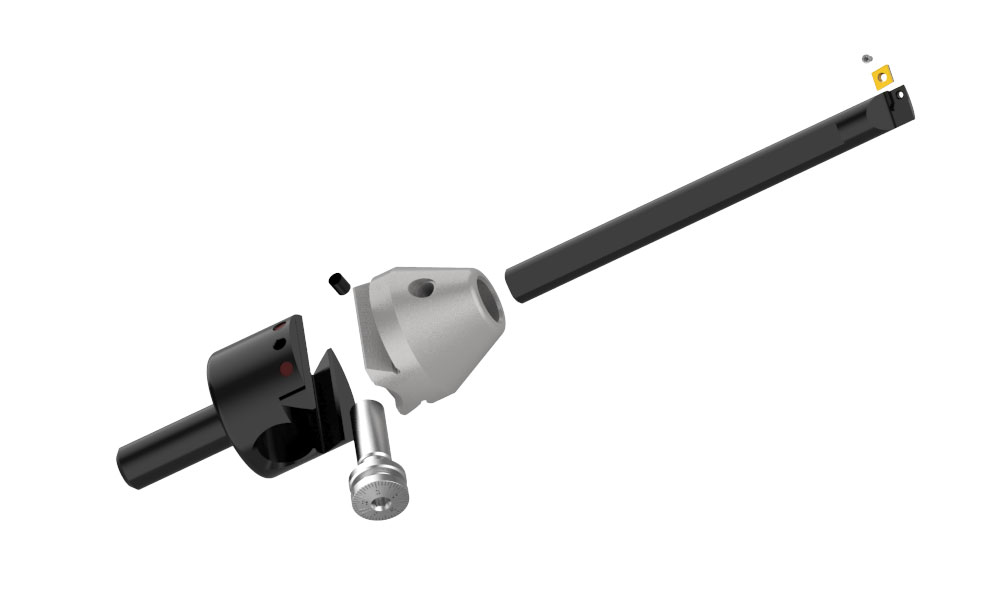

  • Boring head slides using a dovetail connection for secure clamping

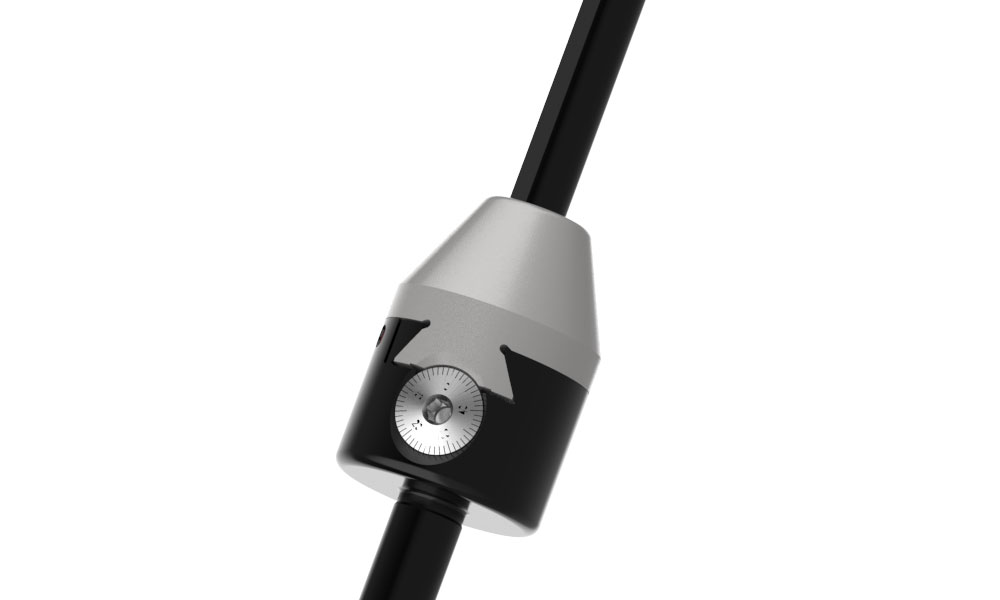

  • Direct dial readout
Features
  • Diameter range: 0.050” – 0.750” (1.27mm – 19.05mm)
  • Adjustment of 0.001” (0.20mm) on diameter
  • Cylindrical shank
  • Max spindle speed: 7,000 RPM at 0 radial offset
Recommended Materials
Materials
x
Steel
High Temp Alloy
Stainless Steel
Hardened Steel
Cast Iron
Aluminum
Icon Reference




Recommended Industries
Industries
x
Medical
Renewable Energy/ Energy
Automotive
Aerospace
Firearms
Agriculture
Oil and Gas
Marine
General Production
Heavy Equipment
Hydraulics
Tool, Mold, and Die
Structural Steel Fabricator
Icon Reference



Technical Information

Criterion US
Boring Systems

Literature Order Number: AMPC-B2

Additional Resources and Guidelines
