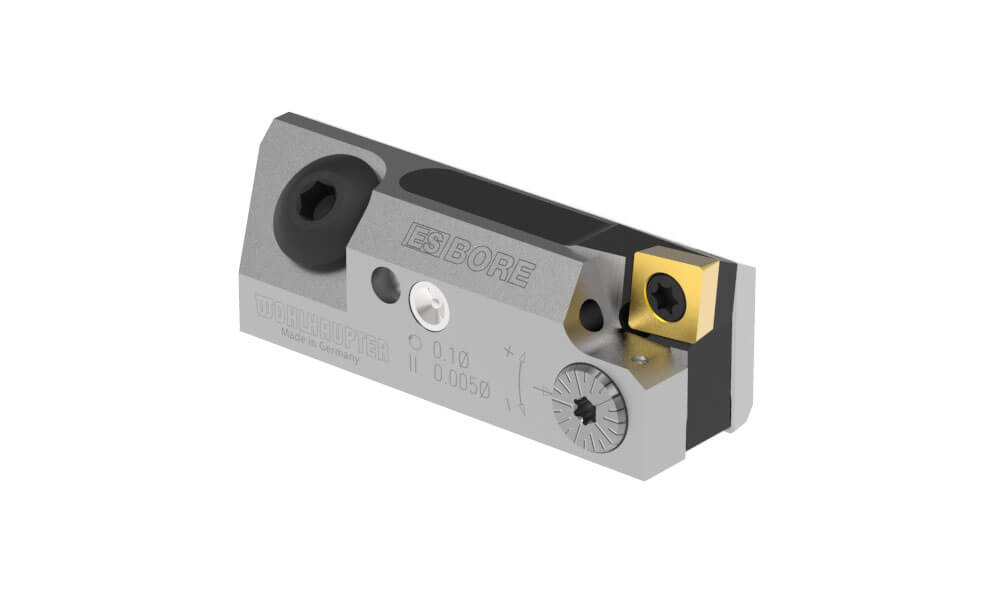

ES-Bore Fine Boring Lay Down Cartridge
Wohlhaupter's fine boring lay down cartridges—ES-Bore—can easily be mounted onto the body of a custom tool while the dimensions allow the cartridge to fit on existing bodies and replace current lay down cartridges in addition to providing 3E TECH+ functionality. When used with standard Wohlhaupter components, the lay down cartridge has a diameter range of 1.1" – 128.0" (28 mm – 3200 mm); however, a maximum boring range cannot be defined for custom boring tools as the range is unlimited and depends on the application.
Advantages

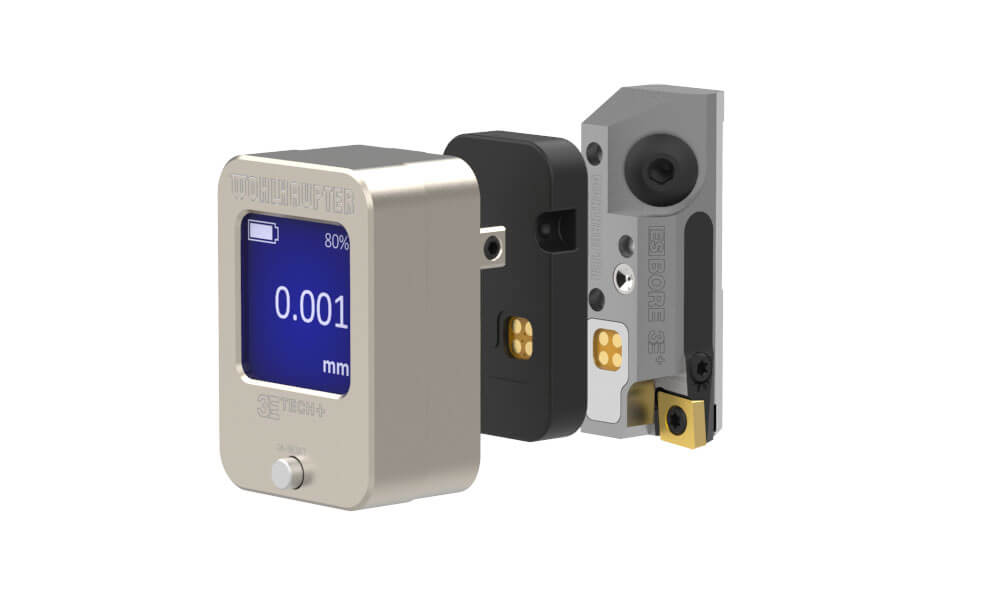

  • Easy 0.0001" (1 micron) diameter adjustments using 3E TECH+ digital module

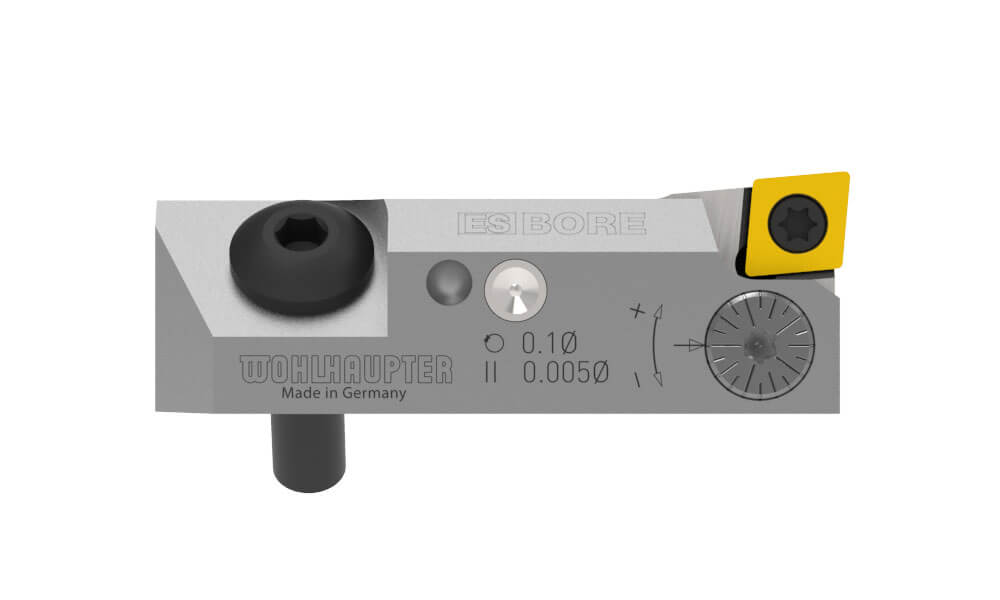

  • Good visibility for 0.0002" (0.005 mm) analog adjustments
  • Easily manufactured cartridge pocket
  • Versatility in many different application types over 1.102" (28.00 mm)

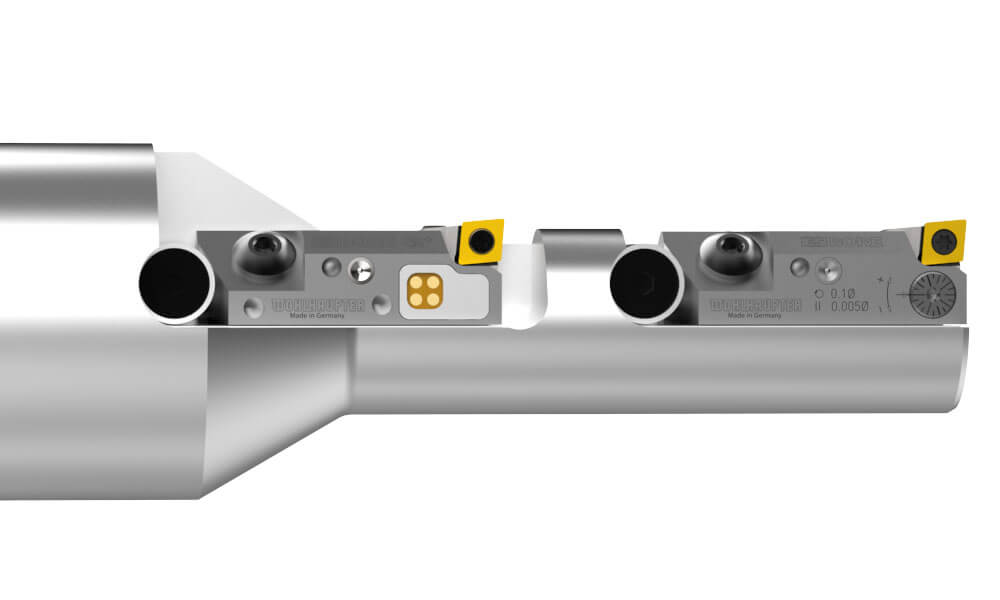

  • Used with Wohlhaupter custom tools

Features

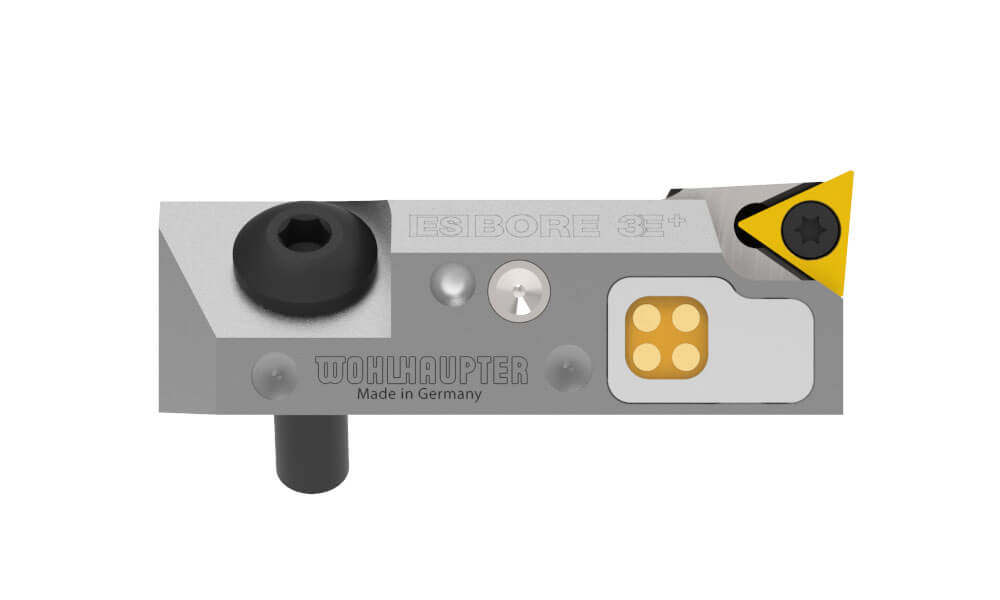

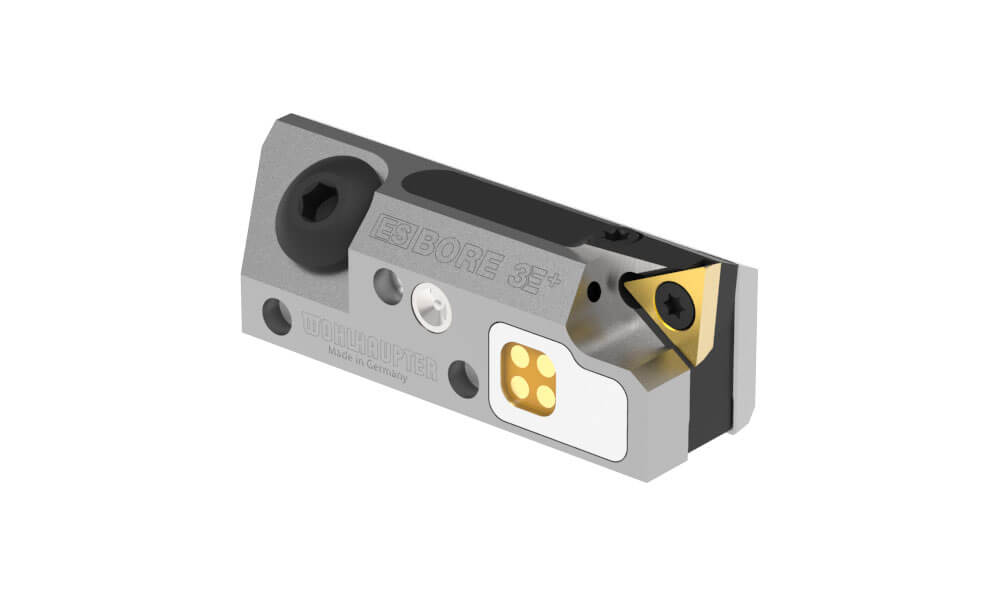

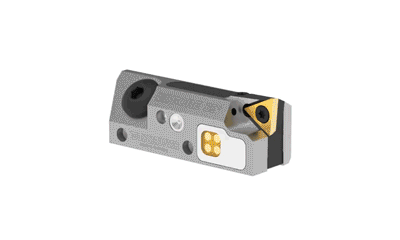

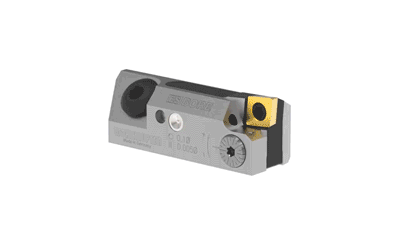

  • Available in 3E TECH+ digital or analog adjustment
  • Capable of radial and axial adjustment
  • Available in right- and left-hand cutting styles
  • Available in 90 and 95 degree approach angles
  • Minimum bore diameter 1.102" (28.00 mm)
  • Maximum cutting speed 2625 SFM (800 m/min)
  • No clamping necessary

Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Wohlhaupter® Lay Down Cartridge
Literature Thumbnail

Literature Order Number: ES-BORE-FL
