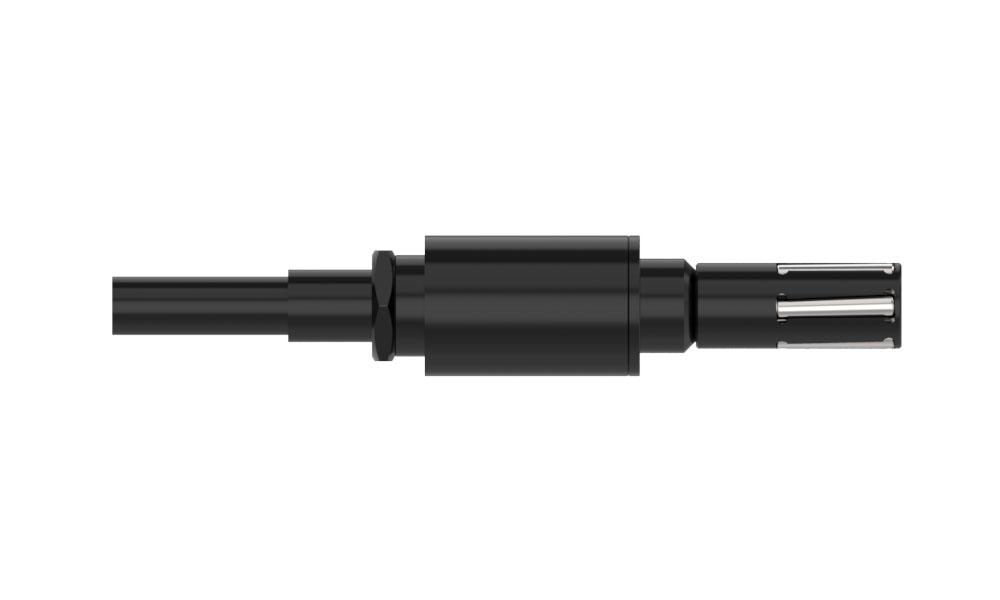

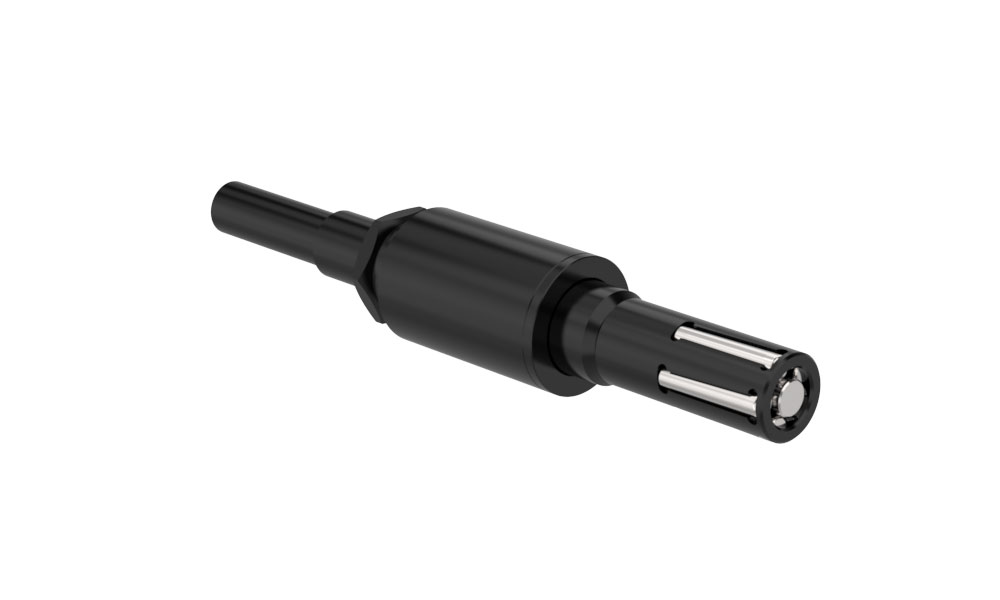

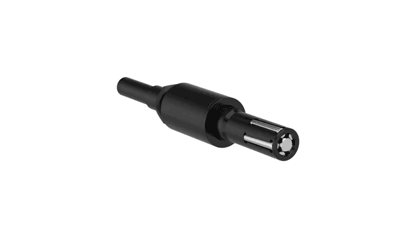

S.C.A.M.I.® Roller Burnishing Through Hole    360 Icon
Roller burnishing is a cold-working process which produces a fine surface finish by the planetary rotation of hardened rolls over a bored or turned metal surface. This process provides a more effective method of sizing, finishing, and work-hardening of your parts to exact specifications.

Watch Video
Advantages
  • Provides versatility because the operation can be performed on any rotating spindle
  • Provides accurate size control with tolerances within 0.0005" or better (depending on variables such as material)
  • Achieves fine surface finishes between 1-10 µin Ra and increases surface hardness by 5-10%
  • Improves metallurgical properties
  • Replaces grinding, honing, lapping and other expensive secondary options
Features
  • Diameter range: 0.1555" - 6.5315" (3.95mm - 165.90mm)

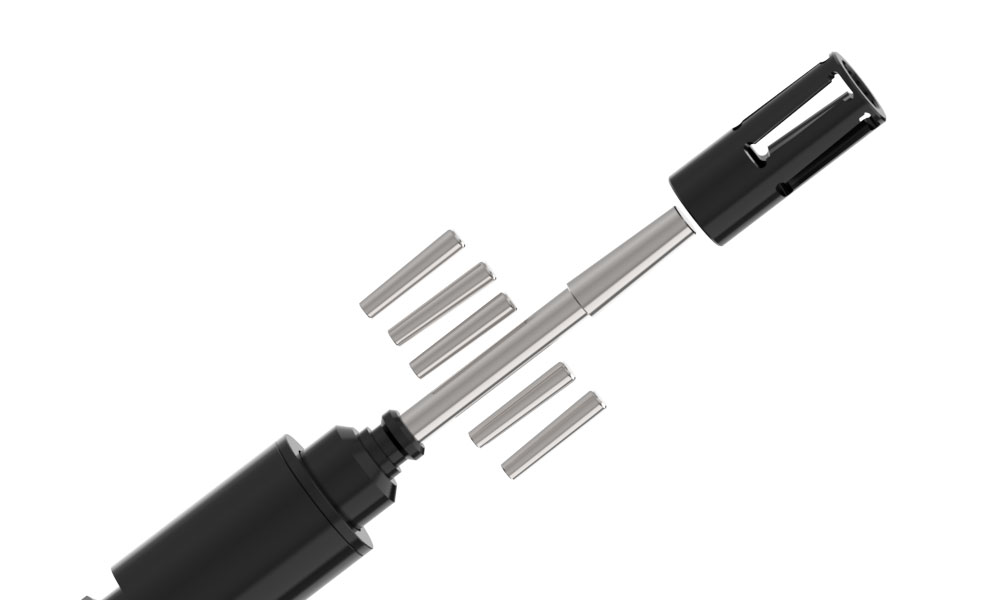

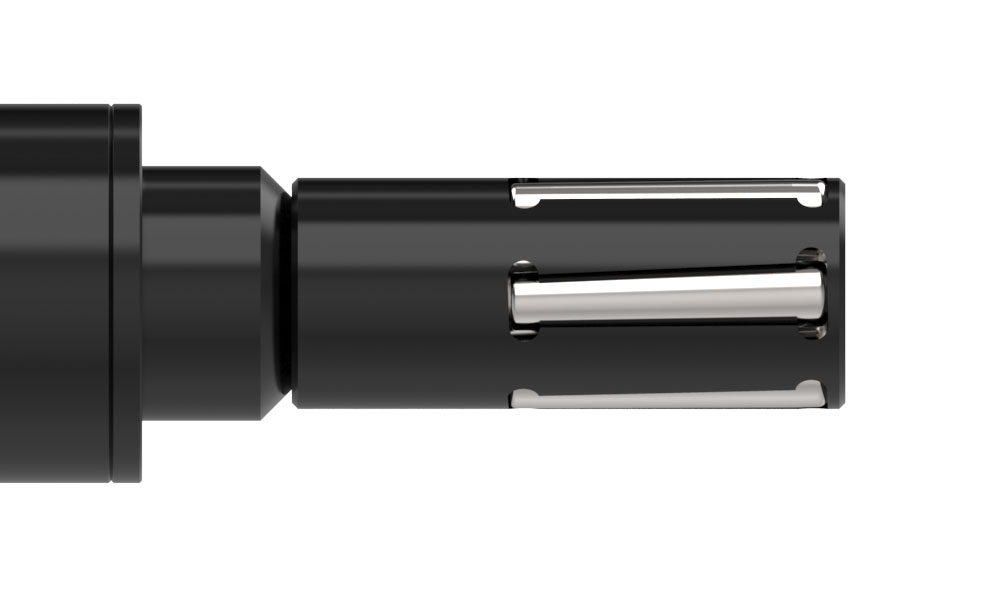

  • All roller burnishing tools are composed of the basic burnisher assembly, including cage, cone, rolls, and shank (either straight or Morse Taper)
  • In some cases, there will be a diameter overlap between a series and the series after it. If the diameter you need falls into this overlap, choose the higher of the two series.
  • For example, you need a 24.64mm diameter tool. This diameter falls into both the K series (16.60mm - 24.74mm) and the L series (24.54mm - 31.16mm). In this scenario, you would choose the L series tool that covers the 24.64mm diameter.
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Product Specifications
Diameter Range
0.1850" - 6.5313" (4.70mm - 165.90mm)
Diameter Range
4.70mm - 165.90mm (0.1850" - 6.5313")

Product Nomenclature
Through Hole
Type
x
D = Roller burnishing tools for through holes

RD
Series
x
Series H = 4.70 - 12.77 mm
Series I = 12.64 - 16.85 mm
Series K = 16.60 - 24.74 mm
Series L = 24.54 - 31.16 mm
Series F = 24.54 - 31.16 mm
Series M = 30.85 - 35.86 mm
Series N = 35.61 - 46.97 mm
Series O = 46.71 - 56.49 mm
Series P = 56.23 - 69.19 mm
Series Q = 68.93 - 85.07 mm
Series R = 84.81 - 104.12 mm


Series S = 103.86 - 127.94 mm
Series T = 127.90 - 149.90 mm
Series U = 149.90 - 165.90 mm
KH
-
Shank
x
1 = Straight shank
2 = Morse taper shank
3 = Straight shank, through hole tools from diam. 15.89 with 704 - 707 type rolls
4 = MT. shank, through hole tools from diam. 15.89 with 704 - 707 type rolls
5 = Striaght shank, through hole tools from diam. 18.19 with 706 type rolls
6 = MT. shank, through hole tools from diam. 18.19 with 706 type rolls
2
Length
x
0 = Unlimited series
1 = Short series
2 = Standard series
3 = Long series

1
Cage
x

0 = Standard cage
2 = Cage for through holes without slef-feed series - 012 -

0
-
Diameter
x
Roller burnishing tools for through holes = minimum diameter of burnishing range
004.70
Solutions by S.C.A.M.I.®
Literature Thumbnail

Literature Order Number: AMPC-D

Recommended Cutting Data
S.C.A.M.I. Roller Burnishing

Setup / Assembly Information

How to set up a burnishing tool and set the diameter on the spindle

How to replace the cone on a burnishing tool

How to how to replace the rollers on a through hole burnishing tool
